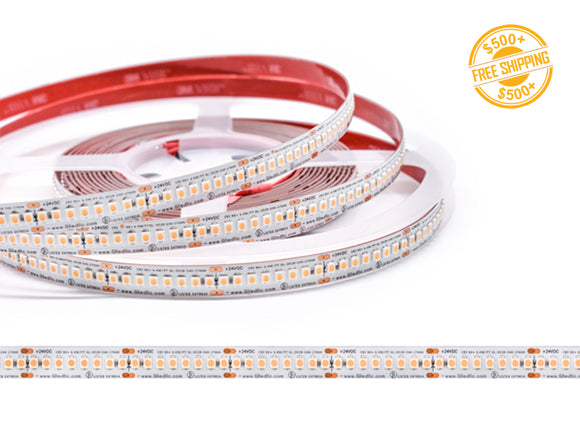

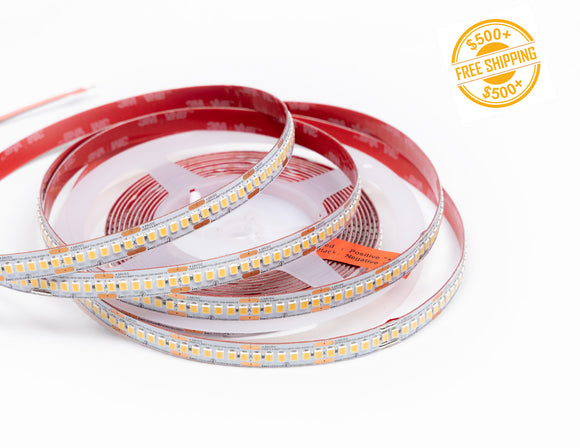

LED Strip Light - Single Color - Super Bright - White PRO - Dry Location IP20 - 24V

SKU: GL-3528-240-2700K-24V-IP20

Login to view price

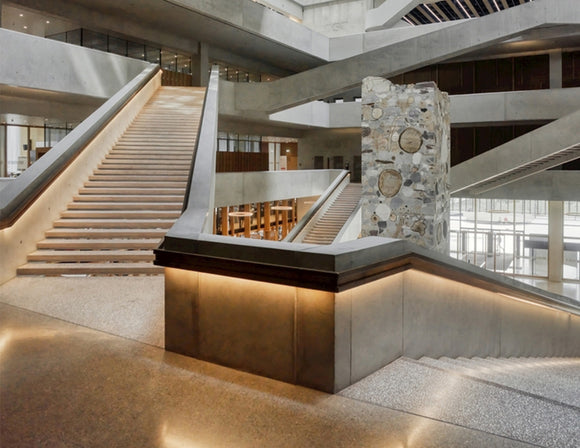

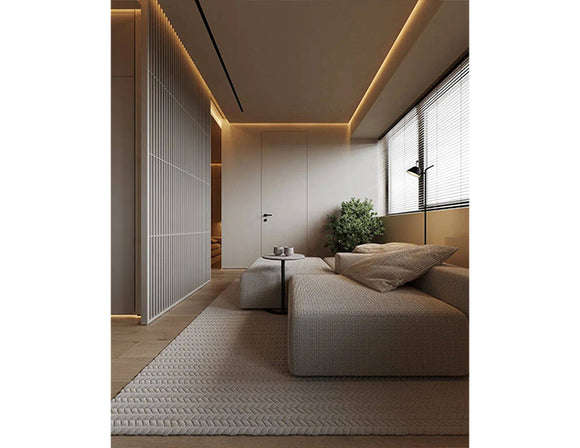

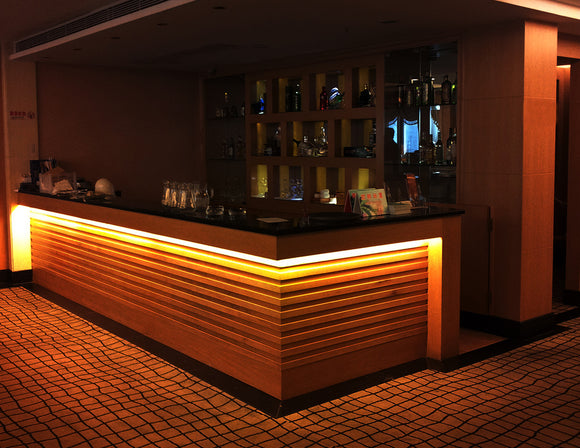

PRO Series LED strip light emits up to 575 lumens per foot of candle white, warm white, natural white. The high-density LED tape light can be easily cut into separate 8-LED segments (1 5/16 inches) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. It's great for back lighting, ambient lighting, accent décor, cabinets, under-cabinet lighting, coves, task lighting, showcase lighting, or other indoor applications where space is limited with no hotspot.

Features:
· High brightness output
· No hotspot with high density LEDs
· Commercial-grade fascinating lighting

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

LED Low Voltage Light System

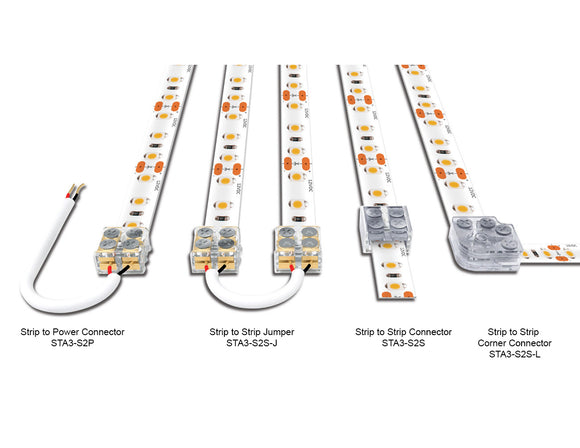

Compatible Connectors:

Strip to Strip Connector Strip to Strip Corner Connector Strip to Power Connector Strip to Strip Jumper

Transformer Recommendation for LED Strip Light - Single Color - PRO (4.4W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-1 0-6 0-6 0-10 0-10 0-17
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-18 0-27 0-36 0-58 0-109 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-4 0-27 0-36 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-5 0-10 0-17 0-27 0-36 0-54
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use: (use 50% capacity)
Length of Strip Light(ft) 0-6 0-11 0-17 0-22 0-36 0-68
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-17 0-22 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-3 0-6 0-10 0-17 0-22 0-34
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

More LED Strip Lights:
Model
PRO

Price
$
$$
$$$
$$
LED Color
2700K
3000K
4000K
2700K
3000K
4000K
1800K
2700K
3000K
4000K
6500K
2700K
3000K
3500K
4000K
Brightness
up to 348 lm/ft
up to 575 lm/ft
up to 848 lm/ft
up to 234 lm/ft
LED Density
36 LEDs/ft
73 LEDs/ft
73 LEDs/ft
36 LEDs/ft
Power Consumption
3 W/ft
4.4 W/ft
7 W/ft
3 W/ft
Efficacy
up to 116 lm/W
up to 130 lm/W
up to 121 lm/W
up to 78 lm/W
CRI
90+
90+
94+
90+
IP Rating
Dry Location
Dry Location
Dry Location
Dry Location
Length
16.4ft
16.4ft
16.4ft
32.8ft
Input
12V/24V DC
24V DC
24V DC
24V DC
No Voltage Drop
16.4ft
16.4ft
16.4ft
65.6ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel



Q&A:

What's the difference between 12V and 24V LED strip lights?

The key difference between 12V and 24V LED strips is their operational voltage. 12V LED strips work on a 12V voltage, while 24V LED strips require a 24V voltage. The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop.

It's vital to match the transformer to the LED strip voltage. A 12V transformer is needed for a 12V LED strip, and a 24V transformer for a 24V LED strip. Mismatching can lead to damage or malfunction of the LED strip lights.



Instruction Video: How to Prevent Voltage Drop

Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light

  • Model No: Single Color - Super Bright - White PRO - Dry Location IP20 - 24V, SKU: GL-3528-240-xxxxK-24V-IP20
  • Operation Voltage: 24VDC
  • Wattage per ft: 4.4W/ft
  • LED per ft: 73 LEDs/ft
  • Brightness/Lumen per ft: GL-3528-240-2700K-24V-IP20, 2700K, 484 LM/ft,
                                            GL-3528-240-3000K-24V-IP20, 3000K, 540 LM/ft,
                                            GL-3528-240-3500K-24V-IP20, 3500K, 557 LM/ft,
                                            GL-3528-240-4000K-24V-IP20, 4000K, 575 LM/ft.

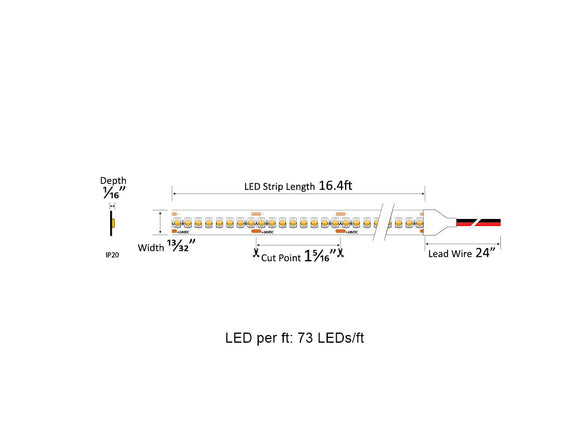

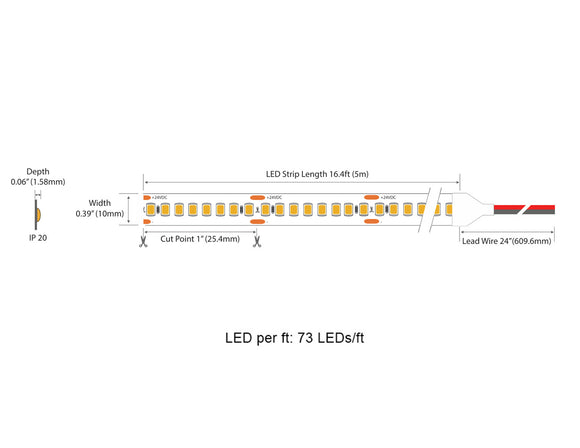

  • Dimension: L 16.4', W 0.39", D 0.07"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP20 (Non-waterproof)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >93
  • Color Temperature options (CCT): 2700K, 3000K, 4000K
  • Beam Angle: 120°
  • Cuttable Increments: 1.31"
  • One Run Max (No Voltage Drop): 16.4'
  • Certification: UL
  • Warranty: Limited 7 years warranty

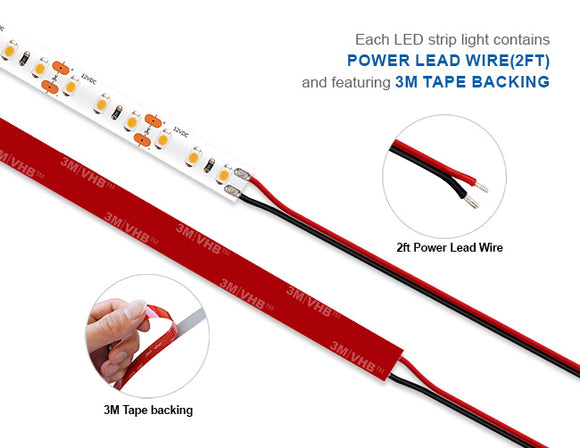

  • 3M tape on the back

LED Strip Light Specification - PRO IP20
3528-240-2700K-24V-IP20 IES File
3528-240-3000K-24V-IP20 IES File
3528-240-4000K-24V-IP20 IES File
Low Voltage LED Strip Light Installation Manual
