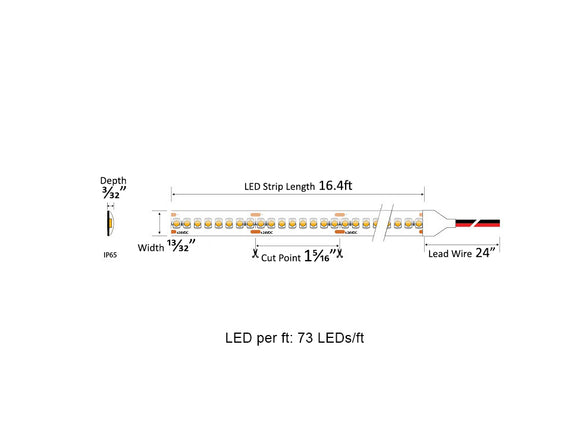

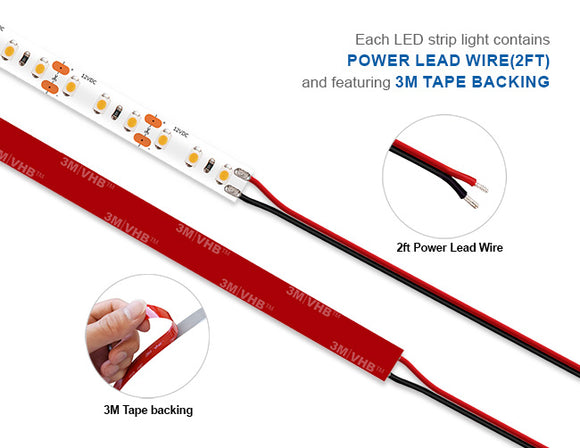

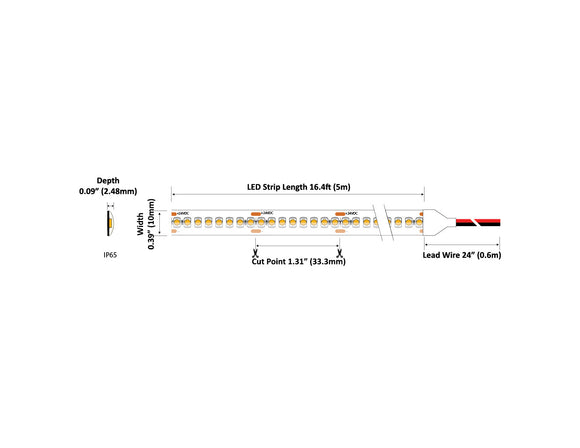

PRO Series LED strip light emits up to 575 lumens per foot of candle white, warm white, natural white. The high-density LED tape light can be easily cut into separate 8-LED segments (1 5/16 inches) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. It's great for back lighting, ambient lighting, accent décor, cabinets, under-cabinet lighting, coves, task lighting, showcase lighting, or other indoor applications where space is limited with no hotspot.
Features:
· High brightness output
· No hotspot with high density LEDs
· Commercial-grade fascinating lighting
Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
- Single Color Light On/Off Control Configuration
- Single Color Light Hardwired Dimming Control Configuration
- Single Color Light Wireless Dimming Control Configuration

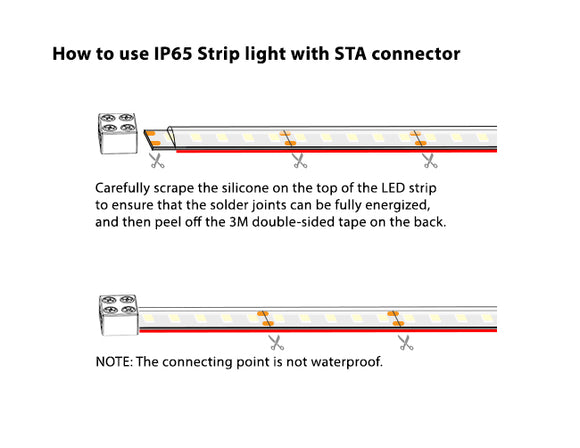

Compatible Connectors:
 |
 |
 |
 |
 |

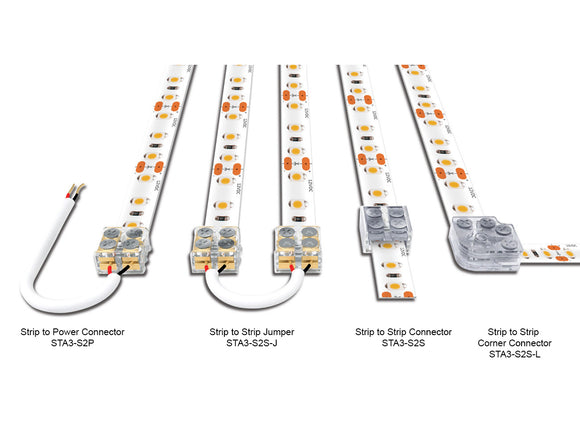

| Strip to Strip Connector | Strip to Strip Corner Connector | Strip to Power Connector | Strip to Strip Jumper |
Transformer Recommendation for LED Strip Light - Single Color - PRO (4.4W/ft)
For Indoor Use: (use 80% capacity)
| Length of Strip Light(ft) | 0-1 | 0-6 | 0-6 | 0-10 | 0-10 | 0-17 |
| Transformer | APV-8W-24V | APV-35W-24V | YHY-36W-24V | YHY-60W-24V | LPV-60W-24V | TPZ-96W-24V |
| Length of Strip Light(ft) | 0-18 | 0-27 | 0-36 | 0-58 | 0-109 | ** |
| Transformer | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V | ** |
| Length of Strip Light(ft) | 0-4 | 0-27 | 0-36 | ** | ** | ** |
| Dimmable Transformer | P-25W-24V | P-150W-24V | P-200W-24V | ** | ** | ** |
| Length of Strip Light(ft) | 0-5 | 0-10 | 0-17 | 0-27 | 0-36 | 0-54 |
| Dimmable Transformer | F-30W-24V | G-60W-24V | G-96W-24V | F-150W-24V | F-200W-24V | G-300W-24V |
| Length of Strip Light(ft) | 0-6 | 0-11 | 0-17 | 0-22 | 0-36 | 0-68 |
| Transformer | LPV-60W-24V | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V |
| Length of Strip Light(ft) | 0-17 | 0-22 | ** | ** | ** | ** |
| Dimmable Transformer | P-150W-24V | P-200W-24V | ** | ** | ** | ** |
| Length of Strip Light(ft) | 0-3 | 0-6 | 0-10 | 0-17 | 0-22 | 0-34 |
| Dimmable Transformer | F-30W-24V | G-60W-24V | G-96W-24V | F-150W-24V | F-200W-24V | G-300W-24V |
More LED Strip Lights:
|
Model
|
PRO
|
|||
|
|
 |
 |
 |
 |
|
Price
|
$
|
$$
|
$$$
|
$$
|
|
LED Color
|
2700K
3000K 4000K |
2700K
3000K 4000K |
1800K
2700K 3000K 4000K 6500K |
2700K
3000K 3500K 4000K |
|
Brightness
|
up to 348 lm/ft
|
up to 575 lm/ft
|
up to 848 lm/ft
|
up to 234 lm/ft
|
|
LED Density
|
36 LEDs/ft
|
73 LEDs/ft
|
73 LEDs/ft
|
36 LEDs/ft
|
|
Power Consumption
|
3 W/ft
|
4.4 W/ft
|
7 W/ft
|
3 W/ft
|
|
Efficacy
|
up to 116 lm/W
|
up to 130 lm/W
|
up to 121 lm/W
|
up to 78 lm/W
|
|
CRI
|
90+
|
90+
|
94+
|
90+
|
|
IP Rating
|
Wet Location
|
Wet Location
|
Wet Location
|
Dry Location
|
|
Length
|
16.4ft
|
16.4ft
|
16.4ft
|
32.8ft
|
|
Input
|
12V/24V DC
|
24V DC
|
24V DC
|
24V DC
|
|
No Voltage Drop
|
16.4ft
|
16.4ft
|
16.4ft
|
65.6ft
|
Frequently bought together:
 |
 |
 |
 |
| All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Q&A:
What's the difference between 12V and 24V LED strip lights?
The key difference between 12V and 24V LED strips is their operational voltage. 12V LED strips work on a 12V voltage, while 24V LED strips require a 24V voltage. The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop.
It's vital to match the transformer to the LED strip voltage. A 12V transformer is needed for a 12V LED strip, and a 24V transformer for a 24V LED strip. Mismatching can lead to damage or malfunction of the LED strip lights.
|
Instruction Video: How to Prevent Voltage Drop Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light |
