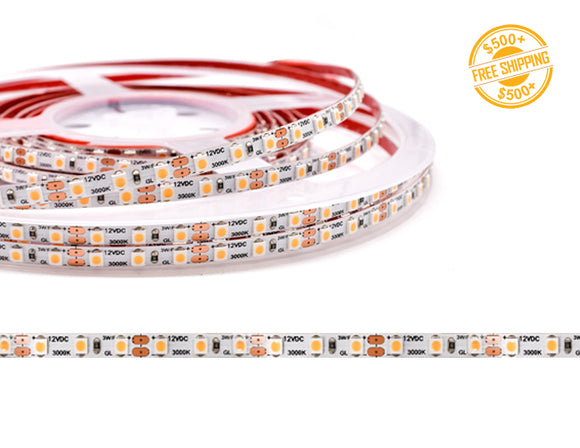

LED Strip Light - Single Color - Standard Bright - White Narrow - Dry Location IP20 - 12V

SKU: GL-3528-120-2700K-12V-IP20-5MM

Login to view price

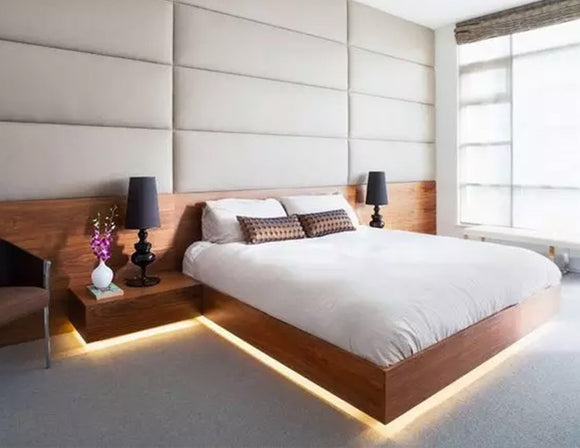

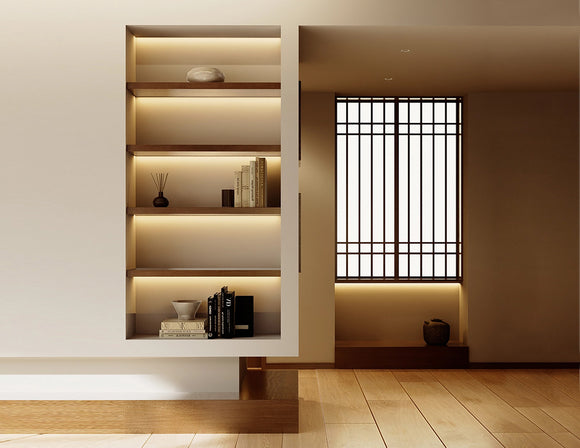

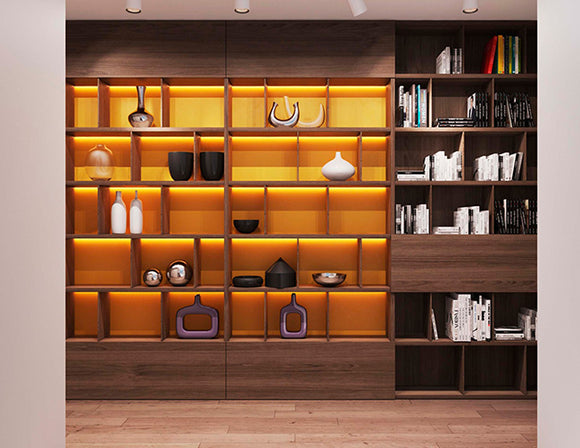

NARROW Series LED strip light emits up to 226 lumens per foot of candle white, warm white, natural white. The regular density LED tape light can be easily cut into separate 3-LED segments (1 inch) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. With narrow width (5mm) design, it's great for small aluminum channels or other limited space indoor applications like cove lighting, accent lighting, under-cabinet light, bias lighting, etc.

Features:
· Design for a particularly narrow use environment with only 5mm width
· Can be used for GL LED aluminum channels JH 1716, JH 1722, JH1686, JH1713

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

LED Low Voltage Light System


Transformer Recommendation for LED Strip Light - Single Color - NARROW (3W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-2 0-3 0-9 0-9 0-16 0-16
Transformer APV-8W-12V DVE-12W-12V APV-35W-12V TPS-36W-12V TPZ-60W-12V FP-60W-12V
Length of Strip Light(ft) 0-25 0-26 0-40 ** ** **
Transformer TPZ-96W-12V XLG-100W-12V XLG-150W-12V ** ** **

Length of Strip Light(ft) 0-10 0-26 **
Dimmable Transformer MINI-TA-60-12V F-100W-12V **
For Outdoor Use:(use 50% capacity)
Length of Strip Light(ft) 0-10 0-16 0-25
Transformer FP-60W-12V XLG-100W-12V XLG-150W-12V

Length of Strip Light(ft) 0-6 0-16 **
Dimmable Transformer MINI-TA-60-12V F-100W-12V **

More LED Strip Lights:
Model

Price
$
$$
$$$
$$
LED Color
2700K
3000K
4000K
2700K
3000K
4000K
1800K
2700K
3000K
4000K
6500K
2700K
3000K
3500K
4000K
Brightness
up to 348 lm/ft
up to 575 lm/ft
up to 848 lm/ft
up to 234 lm/ft
LED Density
36 LEDs/ft
73 LEDs/ft
73 LEDs/ft
36 LEDs/ft
Power Consumption
3 W/ft
4.4 W/ft
7 W/ft
3 W/ft
Efficacy
up to 116 lm/W
up to 130 lm/W
up to 121 lm/W
up to 78 lm/W
CRI
90+
90+
94+
90+
IP Rating
Dry Location
Dry Location
Dry Location
Dry Location
Length
16.4ft
16.4ft
16.4ft
32.8ft
Input
12V/24V DC
24V DC
24V DC
24V DC
No Voltage Drop
16.4ft
16.4ft
16.4ft
65.6ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel



Q&A:

What's the difference between 12V and 24V LED strip lights?

The key difference between 12V and 24V LED strips is their operational voltage. 12V LED strips work on a 12V voltage, while 24V LED strips require a 24V voltage. The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop.

It's vital to match the transformer to the LED strip voltage. A 12V transformer is needed for a 12V LED strip, and a 24V transformer for a 24V LED strip. Mismatching can lead to damage or malfunction of the LED strip lights.



Instruction Video: How to Prevent Voltage Drop

Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light

  • Model No: Single Color - Standard Bright - White Narrow - Dry Location IP20 - 12V, SKU: GL-3528-120-xxxxK-12V-IP20-5MM
  • Operation Voltage: 12VDC
  • Wattage per ft: 3W/ft
  • LED per ft: 36 LEDs/ft
  • Brightness/Lumen per ft: GL-3528-120-2700K-12V-IP20-5MM, 2700K, 238 LM/ft,
                                            GL-3528-120-3000K-12V-IP20-5MM, 3000K, 270 LM/ft,
                                            GL-3528-120-4000K-12V-IP20-5MM, 4000K, 339 LM/ft.

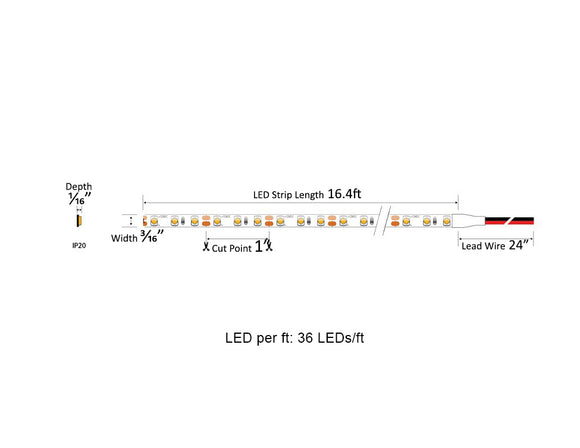

  • Dimension: L 16.4', W 0.2", D 0.07"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP20 (Non-waterproof)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >93
  • Color Temperature options (CCT): 2700K, 3000K, 4000K
  • Beam Angle: 120°
  • Cuttable Increments: 0.98"
  • One Run Max (No Voltage Drop): 16.4'
  • Certification: UL
  • Warranty: Limited 5 years warranty

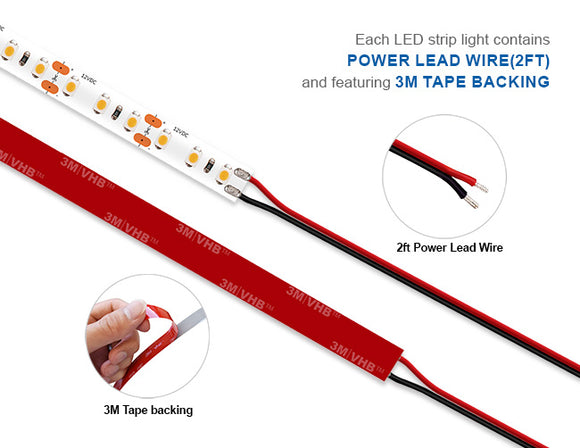

  • 3M tape on the back

LED Strip Light Specification - NARROW
Low Voltage LED Strip Light Installation Manual
