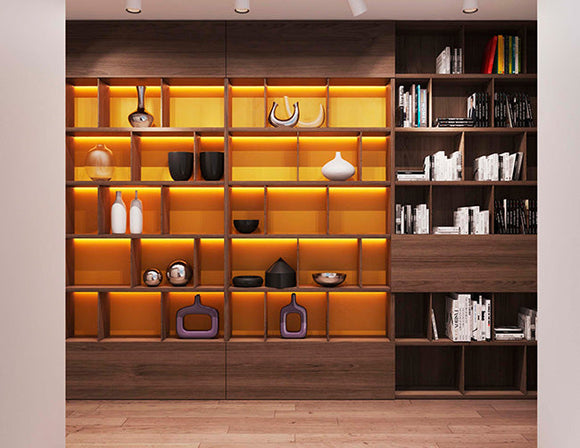

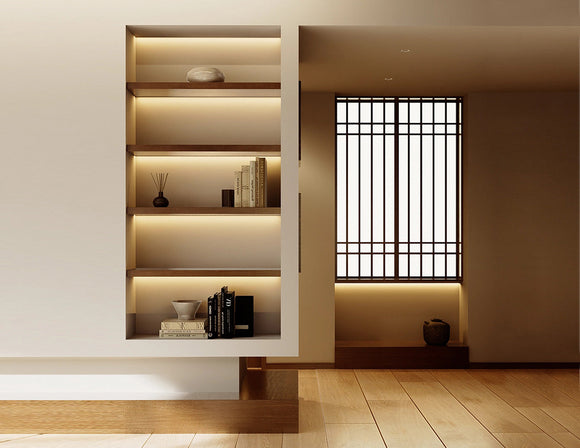

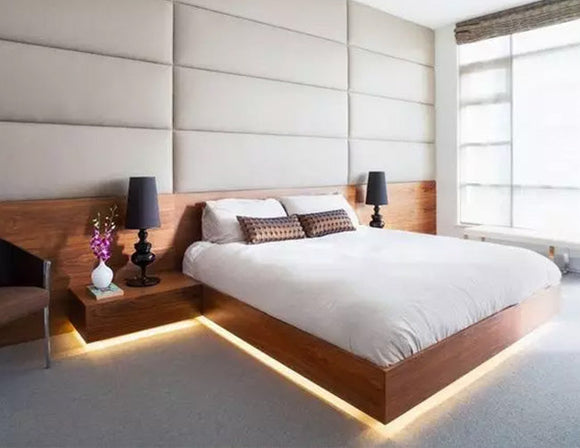

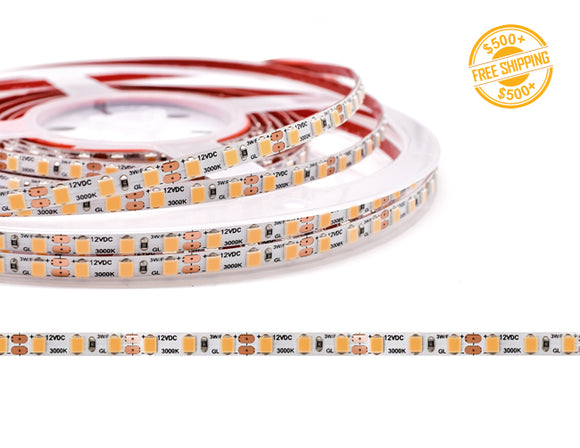

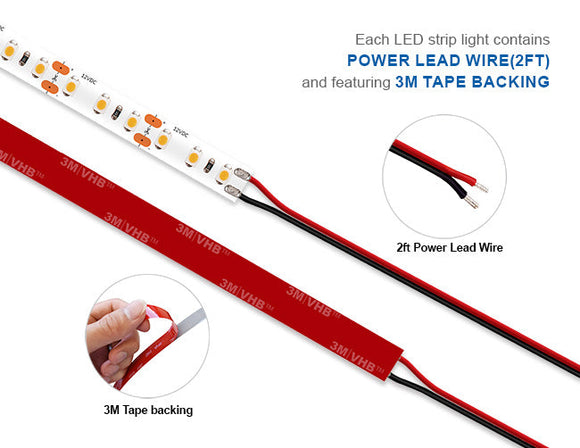

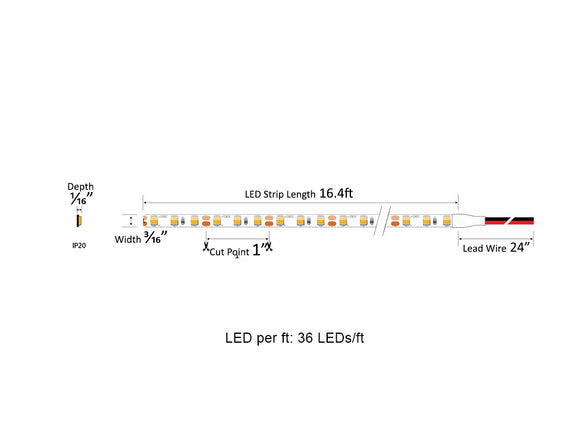

LEGEND-3 Series LED strip light emits up to 226 lumens per foot of candle white, warm white, natural white. The regular density LED tape light can be easily cut into separate 3-LED segments (1 inch) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. With narrow width (5mm) design, it's great for small aluminum channels or other limited space indoor applications like cove lighting, accent lighting, under-cabinet light, bias lighting, etc.
Features:
· Design for a particularly narrow use environment with only 5mm width
· Can be used for GL LED aluminum channels JH 1716, JH 1722, JH1686, JH1713
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
- Single Color Light On/Off Control Configuration
- Single Color Light Hardwired Dimming Control Configuration
- Single Color Light Wireless Dimming Control Configuration
Transformer Recommendation for LED Strip Light - Single Color - LEGEND-3 (3W/ft)
For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) | 0-2 | 0-3 | 0-9 | 0-9 | 0-16 | 0-16 |
Transformer | APV-8W-12V | DVE-12W-12V | APV-35W-12V | TPS-36W-12V | TPZ-60W-12V | FP-60W-12V |
Length of Strip Light(ft) | 0-25 | 0-26 | 0-40 | ** | ** | ** |
Transformer | TPZ-96W-12V | XLG-100W-12V | XLG-150W-12V | ** | ** | ** |
Length of Strip Light(ft) | 0-10 | 0-26 | ** | |||
Dimmable Transformer | MINI-TA-60-12V | F-100W-12V | ** |
For Outdoor Use:(use 50% capacity)
Length of Strip Light(ft) | 0-10 | 0-16 | 0-25 |
Transformer | FP-60W-12V | XLG-100W-12V | XLG-150W-12V |
Length of Strip Light(ft) | 0-6 | 0-16 | ** |
Dimmable Transformer | MINI-TA-60-12V | F-100W-12V | ** |
More LED Strip Lights:
Model
|
||||
|
||||
Price
|
$
|
$$
|
$$$
|
$$
|
LED Color
|
2700K
3000K 4000K |
2700K
3000K 4000K |
1800K
2700K 3000K 4000K 6500K |
2700K
3000K 3500K 4000K |
Brightness
|
up to 348 lm/ft
|
up to 575 lm/ft
|
up to 848 lm/ft
|
up to 234 lm/ft
|
LED Density
|
36 LEDs/ft
|
73 LEDs/ft
|
73 LEDs/ft
|
36 LEDs/ft
|
Power Consumption
|
3 W/ft
|
4.4 W/ft
|
7 W/ft
|
3 W/ft
|
Efficacy
|
up to 116 lm/W
|
up to 130 lm/W
|
up to 121 lm/W
|
up to 78 lm/W
|
CRI
|
90+
|
90+
|
94+
|
90+
|
IP Rating
|
Dry Location
|
Dry Location
|
Dry Location
|
Dry Location
|
Length
|
16.4ft
|
16.4ft
|
16.4ft
|
32.8ft
|
Input
|
12V/24V DC
|
24V DC
|
24V DC
|
24V DC
|
No Voltage Drop
|
16.4ft
|
16.4ft
|
16.4ft
|
65.6ft
|
Frequently bought together:
All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Q&A:
What's the difference between 12V and 24V LED strip lights?
The key difference between 12V and 24V LED strips is their operational voltage. 12V LED strips work on a 12V voltage, while 24V LED strips require a 24V voltage. The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop.
It's vital to match the transformer to the LED strip voltage. A 12V transformer is needed for a 12V LED strip, and a 24V transformer for a 24V LED strip. Mismatching can lead to damage or malfunction of the LED strip lights.
Instruction Video: How to Prevent Voltage Drop Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light |
