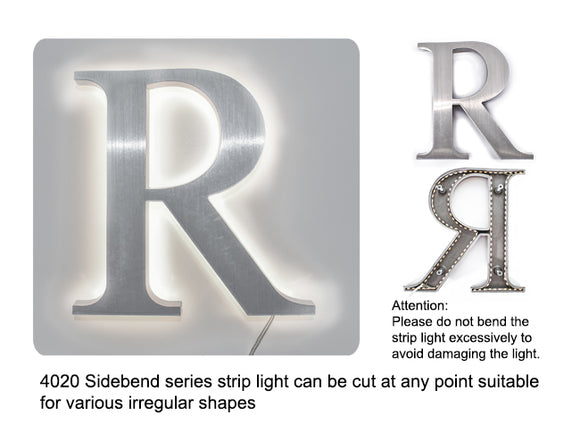

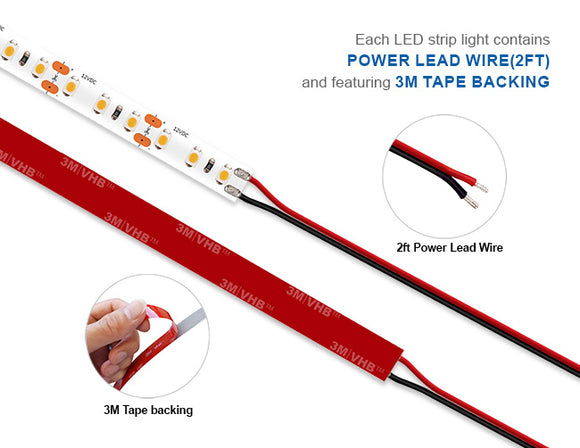

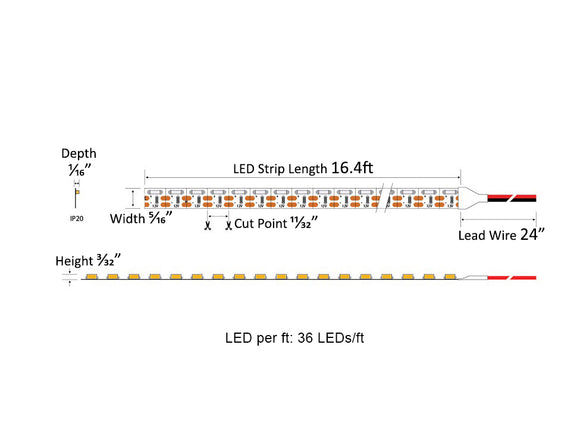

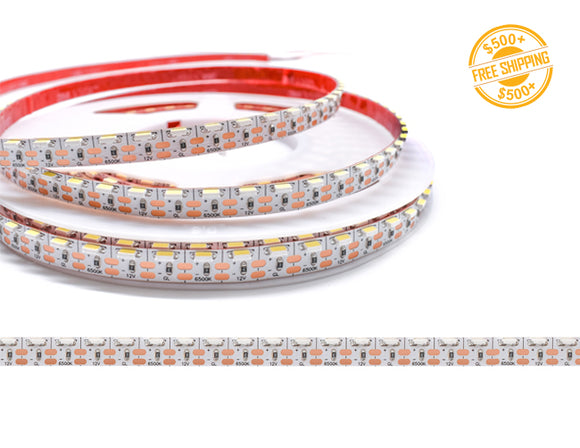

Side bend LED strip light features a design that LED chips are installed along one side of the strip and perpendicular to the strip surface. The LED strip light emits up to 457 lumens per foot of candle white, warm white, natural white, cool white. The LED tape light can be easily cut into separate 1-LED segments (11/32 inches) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. Side bend and one LED cut makes it great for various irregular shapes requirements, such as letters back lighting, mirrors back lighting, display cases, trade shows, etc.
Features:
· Every LED can be cut
· Side bend design can achieve any shape installation
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
- Single Color Light On/Off Control Configuration
- Single Color Light Hardwired Dimming Control Configuration
- Single Color Light Wireless Dimming Control Configuration
Q&A:
What's the difference between 12V and 24V LED strips?
The main difference between 12V and 24V LED strips is the voltage they operate at. 12V LED strips are designed to run on a voltage of 12V, while 24V LED strips are designed to run on a voltage of 24V. This means that the power supply and wiring required for 24V LED strips will need to be able to handle more voltage than that required for 12V LED strips. Additionally, 24V LED strips will typically have a longer maximum run length than 12V LED strips, as the higher voltage allows for less voltage drop over longer distances.
Transformer Recommendation for LED Strip Light - Single Color - SIDE BEND (4.4W/ft)
For Indoor Use: (use 80% capacity)
| Length of Strip Light(ft) | 0-1 | 0-2 | 0-6 | 0-6 | 0-10 | 0-10 |
| Transformer | APV-8W-12V | DVE-12W-12V | APV-35W-12V | TPS-36W-12V | TPZ-60W-12V | FP-60W-12V |
| Length of Strip Light(ft) | 0-17 | 0-18 | 0-27 | ** | ** | ** |
| Transformer | TPZ-96W-12V | XLG-100W-12V | XLG-150W-12V | ** | ** | ** |
| Length of Strip Light(ft) | 0-6 | 0-18 | ** | |||
| Dimmable Transformer | MINI-TA-60-12V | F-100W-12V | ** | |||
| Length of Strip Light(ft) | 0-6 | 0-11 | 0-17 |
| Transformer | FP-60W-12V | XLG-100W-12V | XLG-150W-12V |
| Length of Strip Light(ft) | 0-4 | 0-11 | ** |
| Dimmable Transformer | MINI-TA-60-12V | F-100W-12V | ** |
More LED Strip Lights:
|
Model
|
||||
|
|
 |
 |
 |
 |
|
Price
|
$
|
$$
|
$$$
|
$$
|
|
LED Color
|
2700K
3200K 4000K |
2700K
3200K 4000K |
1800K
2700K 3000K 4000K 6500K |
2700K
3000K 3500K 4000K |
|
Brightness
|
223-224 lm/ft
|
470-480 lm/ft
|
526-750 lm/ft
|
226 lm/ft
|
|
LED Density
|
36 LEDs/ft
|
73 LEDs/ft
|
73 LEDs/ft
|
36 LEDs/ft
|
|
Power Consumption
|
3 W/ft
|
6 W/ft
|
7 W/ft
|
3 W/ft
|
|
Efficacy
|
75 lm/W
|
78-80 lm/W
|
74-106 lm/W
|
75 lm/W
|
|
CRI
|
90+
|
90+
|
94+
|
90+
|
|
IP Rating
|
Dry Location
|
Dry Location
|
Dry Location
|
Dry Location
|
|
Length
|
16.4ft
|
16.4ft
|
16.4ft
|
32.8ft
|
|
Input
|
12V/24V DC
|
24V DC
|
24V DC
|
24V DC
|
|
No Voltage Drop
|
16.4ft
|
16.4ft
|
16.4ft
|
65.6ft
|
