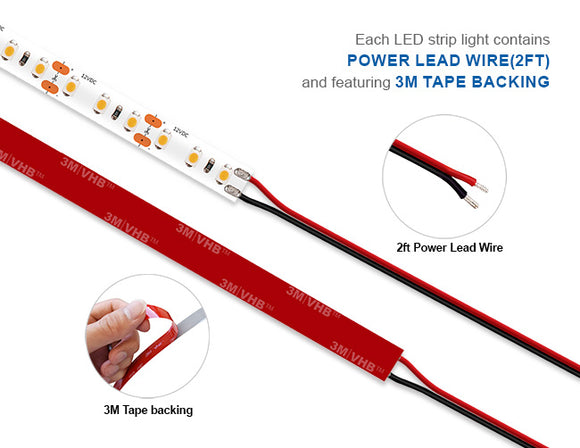

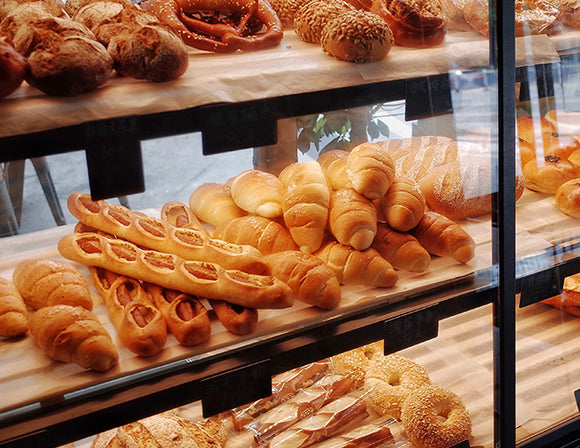

This bread light emits a warm yellow glow, enhancing the appeal of bread, cakes, and baked goods, making them look more enticing. Typically used in bakeries, supermarket pastry displays, and cafes, the LED strip has a 2500K color temperature, compatible with 12V power, and is easily installed with self-adhesive 3M VHB tape.(Click to see How to apply 3M double-sided tape properly).To ensure optimal performance, it’s recommended to reconnect the power every 16.4 feet to avoid voltage drop.
|
Features: |
Applications: |
Specifications:
Input Voltage
|
12VDC |
LED Quantity
|
18 LEDs/ft |
|
Dimmable
|
PWM, Forward phase, Triac, 0-10V, MLV, ELV |
No Voltage Drop
|
16.4 ft Max |
|
Lead Wire
|
20 AWG, 2ft (2 Wires) |
LED Chip |
2835 |
|
Color Temperature
|
2500K |
Operating Ambient Temperature |
-13°F~104°F |
|
Brightness |
200 lm/ft |
LED Lifetime |
50,000 hrs |
|
Light Efficacy
|
45 lm/W |
Color Rendering Index (CRI)
|
>97 |
|
Power Consumption
|
4.4 W/ft |
IP Rating
|
IP20 (Dry location) |
Documents:
LED Strip Light Specification - FOR_BREAD
Low Voltage LED Strip Light Installation Manual
Power Supply Calculator – Designed just for You
Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.
Power Calculator
The power supply you need is
Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.
How to Choose the Right LED Controller for Your LED Lighting Project? Find Out >>
Go To Dimmers & Controllers Page >>>
Use aluminum channels – For a clean, finished look, not only improves appearance, but also helps with heat dissipation and light diffusion.
Go To Aluminum Channels Page >>>
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally: Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
Customized Service is available, click here to get more information.
