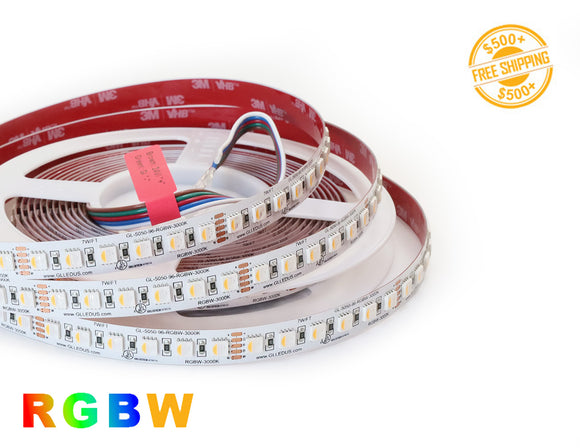

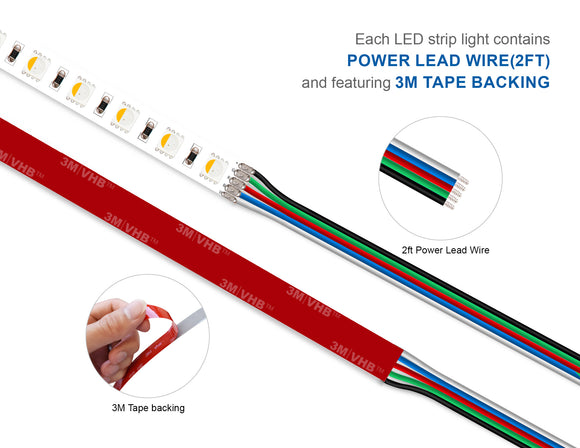

The RGBW 4-in-1 LED Strip integrates four colors (red, green, blue, and white) into a single chip, enabling seamless blending of RGB and white light for precise color mixing and gradient effects. This reduces the number of chips and improves energy efficiency. Ideal for photography lighting, art galleries, film sets, and studios, it features a 3M™ adhesive backing for quick and easy installation.(Click to see How to apply 3M double-sided tape properly).
|
Features:
|
Applications:
|
Specifications:
|
Input Voltage |
24VDC |
LED Quantity |
29LEDs/ft |
|
Dimmable |
RGBW color changing controller |
IP Rating |
IP20 (Dry location) |
|
Color |
RGB,RGB+3000K,RGB+4000K,RGB+6000K |
Operating Temperature |
-13°F~104°F |
|
Brightness |
Up to 408 lm/ft |
Efficacy |
58.4 lm/W |
|
Power Consumption |
7W/ft |
LED Lifetime |
50,000 hrs |
|
No Voltage Drop |
16.4 ft Max |
Wavelength |
Red: 620-625nm Green: 520-525nm Blue: 465-470nm W:3000K,4000K,6000K |
|
Lead Wire |
20 AWG, 2ft (2 Wires) |
LED Chip |
5050 |

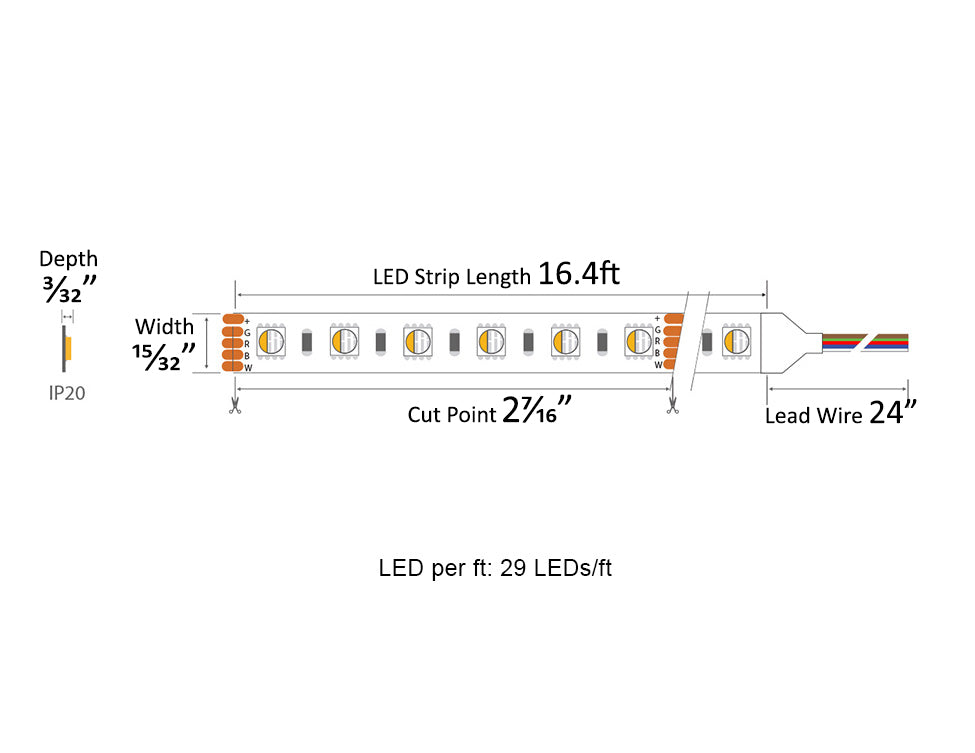

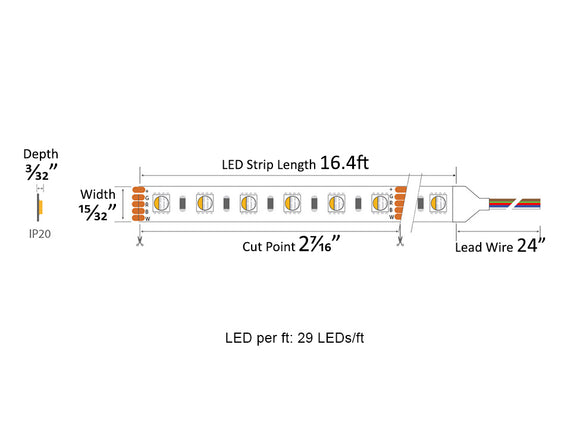

LED Strip Light Specification - RGBW 4 IN 1
5050-96-RGBW-3K-24V-IP20 IES File
5050-96-RGBW-6K-24V-IP20 IES File
How to Use Low Voltage LED Strip Lights Properly？
The essential component needed to power a strip light is a power supply. In addition to this, we offer a variety of installation accessories, including connectors, aluminum mounting channels and controllers. To get the best results with your LED strip lights:
Use the right power supply – Low voltage strips must be paired with a compatible transformer (power supply) to work safely and reliably.
 |
Use aluminum channels – For a clean, finished look, not only improves appearance, but also helps with heat dissipation and light diffusion.
 |
Add a controller – If you want dimming for single-color strips, or color changing for RGB/RGBW strips, a controller is required.
 |
LED Low Voltage Light System Configuration
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally: Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
Instruction Video: Make RGBW light effects using RGB light
Instruction Video: How to Prevent Voltage Drop
Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light
