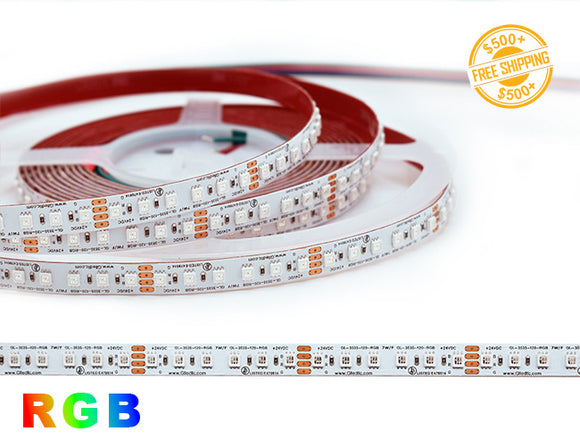

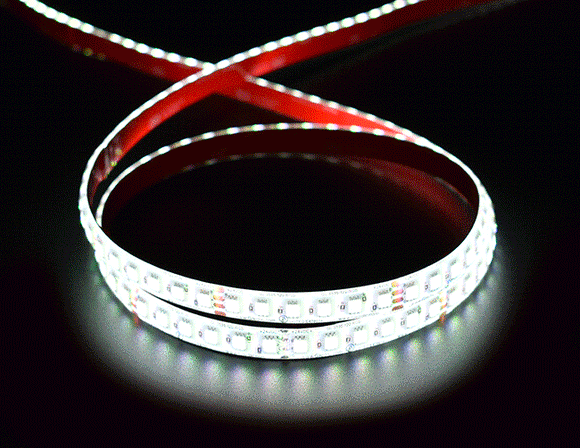

LED Strip Light - Color Changing - RGB - Super Bright - Dry Location IP20 - 24V
SKU: GL-3535-120-RGB-24V-IP20

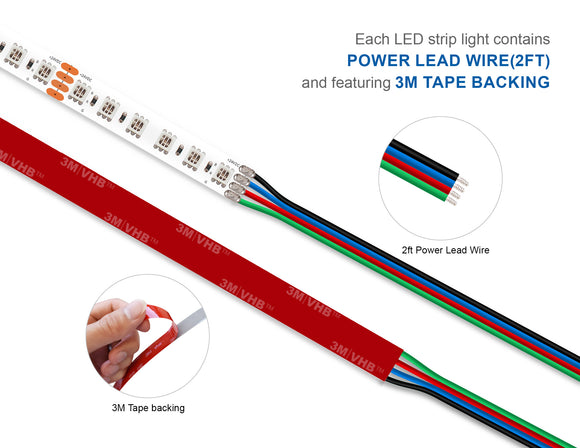

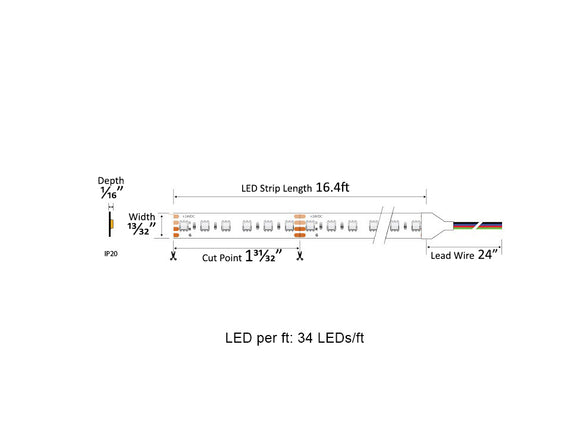

RGB SUPER BRIGHT Series LED strip light emits high brilliant multi-color illumination. The LED tape light can be easily cut into separate 6-LED segments (1 31/32 inches) segments and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. High density and superior brightness with color changing output makes it great for party, entertainment, and decoration with low hotspots.
Features:
· Superior brightness with color changing light
· No hotspot with high denstity LEDs

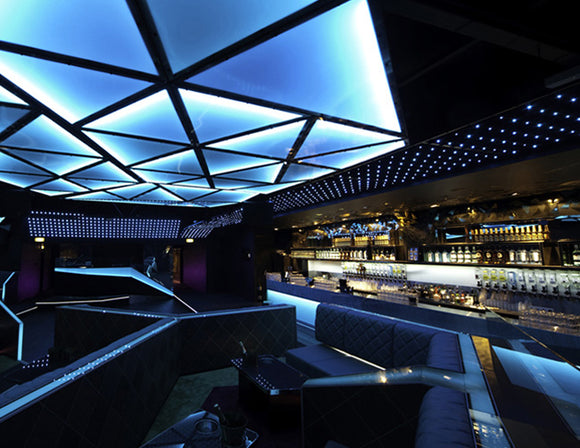

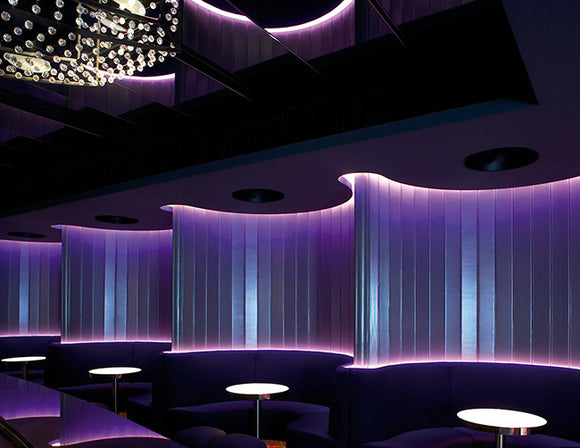

· Great for party, entertainment, decoration
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
- Color Changing RGB Hardwired Control Configuration
- Color Changing RGB Wireless Control Configuration
Compatible Connectors:
 |
 |
 |
 |
 |

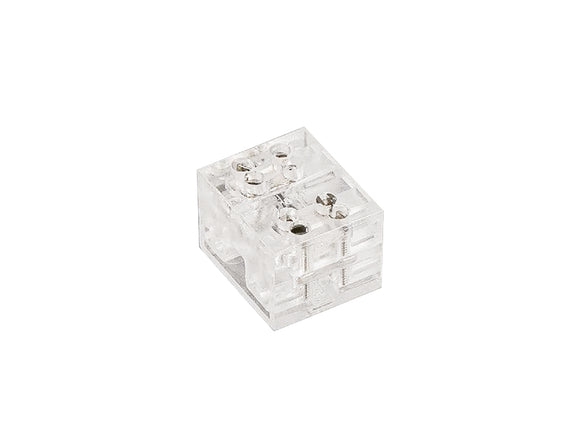

| Strip Light Joiner | Strip Light L Connector | Strip Light T Connector | Strip to Power Connector | Strip to Strip Interconnect Cable |
Transformer Recommendation for LED RGB Super Bright Strip Light (7W/ft)
For Indoor Use: (use 80% capacity)
| Length of Strip Light(ft) | 0-4 | 0-4 | 0-6 | 0-6 | 0-10 | 0-11 |
| Transformer | APV-35W-24V | YHY-36W-24V | YHY-60W-24V | LPV-60W-24V | TPZ-96W-24V | XLG-100W-24V |
| Length of Strip Light(ft) | 0-17 | 0-22 | 0-36 | 0-36 | 0-68 | ** |
| Transformer | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | RSP-320W-24V | HLG-600W-24V | ** |
| Length of Strip Light(ft) | 0-2 | 0-6 | 0-10 | 0-17 | 0-22 | ** |
| Dimmable Transformer | P-25W-24V | P-60W-24V | P-96W-24V | P-150W-24V | P-200W-24V | ** |
| Length of Strip Light(ft) | 0-3 | 0-6 | 0-10 | 0-17 | 0-22 | 0-34 |
| Dimmable Transformer | F-30W-24V | F-60W-24V | F-96W-24V | F-150W-24V | F-200W-24V | F-300W-24V |
| Length of Strip Light(ft) | 0-4 | 0-7 | 0-10 | 0-14 | 0-22 | 0-42 |
| Transformer | LPV-60W-24V | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V |
| Length of Strip Light(ft) | 0-6 | 0-10 | 0-14 | ** | ** | ** |
| Dimmable Transformer | P-96W-24V | P-150W-24V | P-200W-24V | ** | ** | ** |
| Length of Strip Light(ft) | 0-2 | 0-4 | 0-6 | 0-10 | 0-14 | 0-21 |
| Dimmable Transformer | F-30W-24V | F-60W-24V | F-96W-24V | F-150W-24V | F-200W-24V | F-300W-24V |
More LED RGB Strip Lights:
|
Model
|
RGB Super Bright
|
||
 |
 |
 |
|
|
Price
|
$
|
$$
|
$$
|
|
LED Color
|
RGB
|
RGB
|
RGB
|
|
Brightness
|
144 lm/ft (White)
|
221 lm/ft (White)
|
144 lm/ft (White)
|
|
LED Density
|
18 LEDs/ft
|
36 LEDs/ft
|
18 LEDs/ft
|
|
Power Consumption
|
4.4 W/ft
|
7 W/ft
|
4.4 W/ft
|
|
IP Rating
|
Dry Location
|
Dry Location
|
Dry Location
|
|
Length
|
16.4ft
|
16.4ft
|
16.4ft
|
|
Input
|
12V/24V DC
|
24V DC
|
12V DC
|
|
No Voltage Drop
|
16.4ft
|
16.4ft
|
16.4ft
|
