Product Details

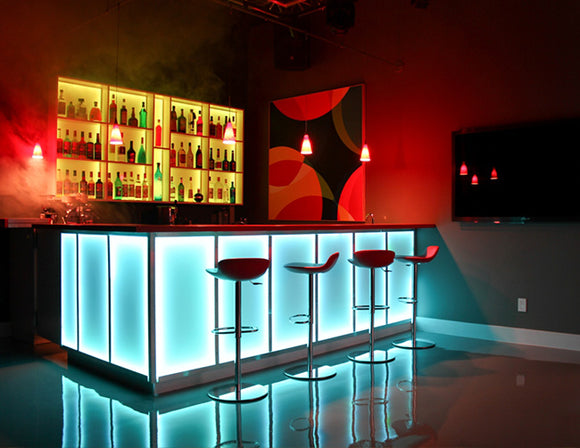

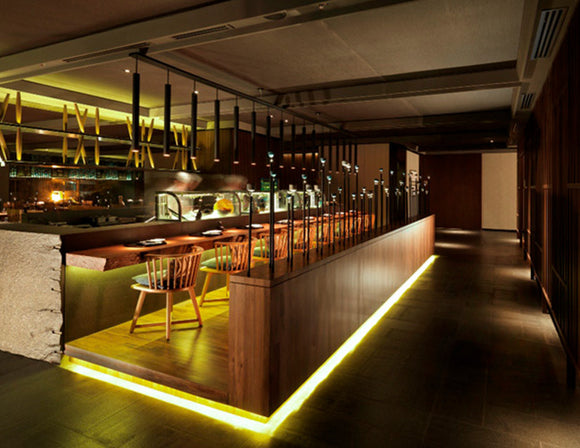

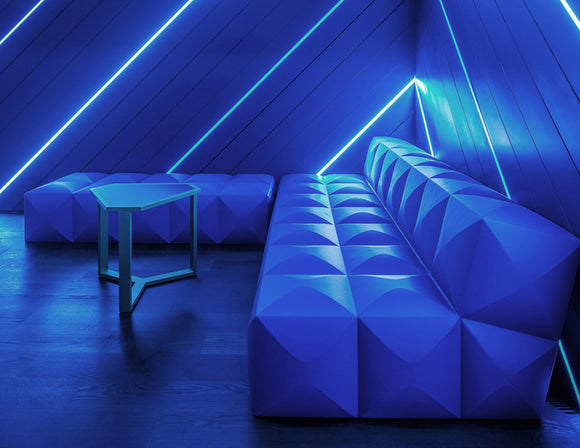

This flexible RGB LED light strip is perfect for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. How to apply 3M double-sided tape properly).
Features· Slim, flexible and cuttable design allows for easy installation and illuminates every edge with light |
Applications· Retail Shops |
Specifications
Input Voltage
|
24VDC |
LED Quantity
|
36 LEDs/ft |
|
Dimmable
|
RGB color changing controller |
No Voltage Drop
|
16.4 ft Max |
|
Lead Wire
|

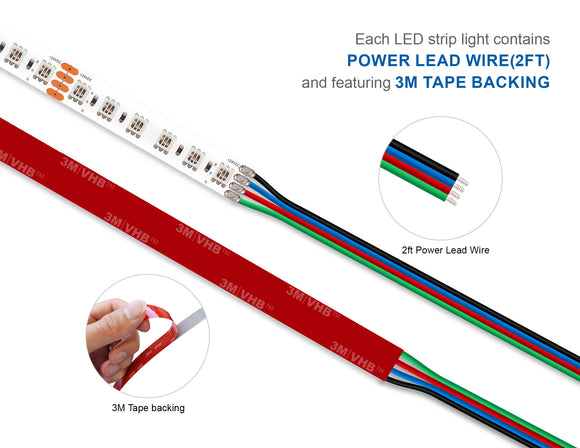

20 AWG, 2ft (4 wires) |
LED Chip |
5050 |
| Color |
RGB |
Operating Ambient Temperature |
-13°F~104°F |
|
Brightness |
Up to 144 lm/ft |
LED Lifetime |
50,000 hrs |
|
Light Efficacy
|
Up to 33 lm/W |
Wavelength |
Red: 620-625nm, Green: 520-525nm, Blue: 465-470nm |
|
Power Consumption
|
4.4 W/ft |
IP Rating
|
IP20 (Dry location) |
Documents
LED Strip Light Specification - RGB HIGH BRIGHT (5050-60) IP20
5050-60-RGB-24V-IP20 IES File
Power Supply Calculator – Designed just for You
Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.
Power Calculator
The power supply you need is
Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.
How to Choose the Right LED Controller for Your LED Lighting Project? Find Out >>
Go To Dimmers & Controllers Page >>>
Use aluminum channels – For a clean, finished look, not only improves appearance, but also helps with heat dissipation and light diffusion.
Go To Aluminum Channels Page >>>
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally: Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
