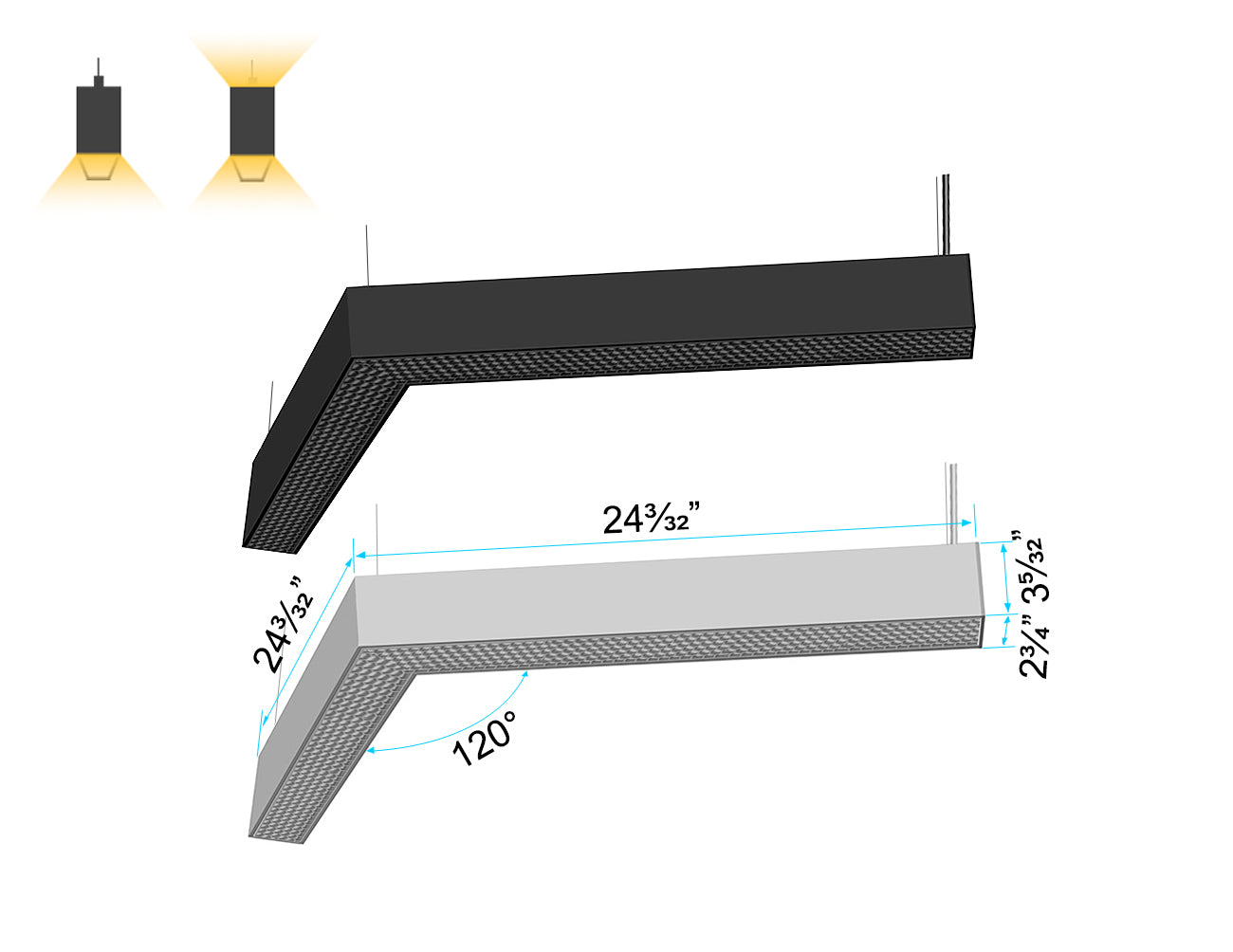

LED Linear Light - L8070 - Honeycomb Lens - 120° L Shape

The L8070 Honeycomb Lens – 120° L Shape Linear LED Light is crafted for precision illumination and advanced glare control, making it a top choice for architectural corner lighting. Its engineered honeycomb lens minimizes stray light and glare, delivering targeted, comfortable brightness exactly where it’s needed. With a streamlined 2.75-inch housing, tunable white light (3000K / 3500K / 4000K), CRI 90+, and high efficacy up to 115 lm/W, this fixture delivers both efficiency and visual appeal. 0–10V dimming and multiple mounting options make it a versatile solution for commercial, hospitality, and luxury residential interiors.

Product Details

• Honeycomb optical lens for glare reduction and focused illumination
• 120° L-shaped modular design for seamless corner integration
• Slim 2.75-inch profile for modern architecture

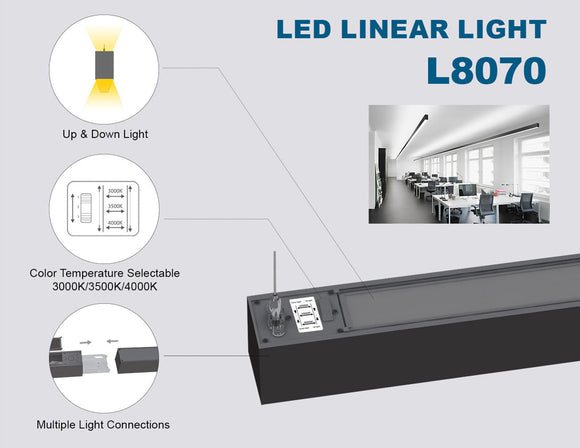

• Adjustable CCT: 3000K / 3500K / 4000K
• High efficiency: up to 115 lm/W, CRI 90+
• 0–10V dimming for custom light levels

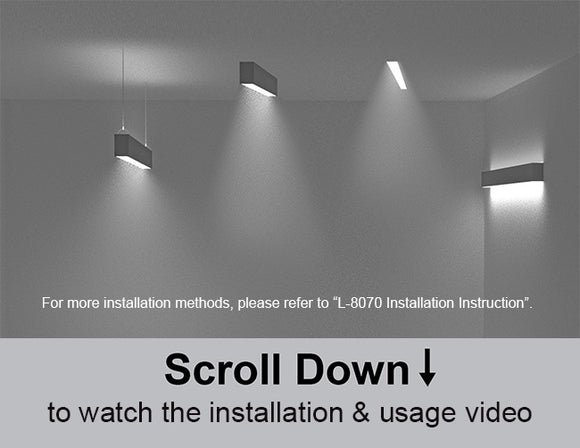

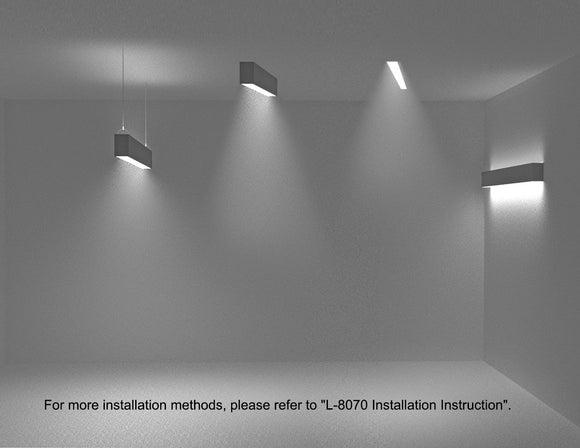

• Mounting: suspension, recessed, or surface
• Available in black or white finishes

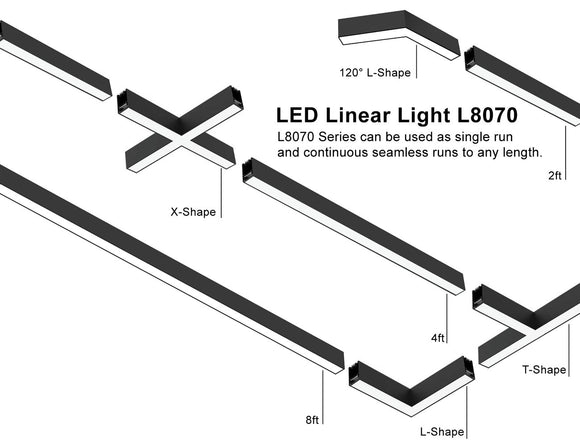

• Works for both standalone and continuous runs

Applications

• Office spaces: glare-controlled corner lighting for productivity
• Retail: highlight merchandise at intersecting wall displays
• Healthcare: improve comfort in patient and staff zones
• Museums & galleries: precise lighting for corner exhibits
• Conference rooms: evenly lit corner intersections
• Luxury residences: architectural lighting for open-plan corners

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

Specification

Q&A:

1. Do linear LED lights support uplight?

Yes. Many architectural linear LED fixtures, including GL LED’s uplight/downlight models, support uplight for indirect ambient illumination. Uplight directs light toward the ceiling, creating a softer, more diffused effect that reduces glare and enhances atmosphere. This is especially effective in offices, hospitality venues, and open-plan spaces where balanced lighting is essential.

2. How do I choose between single-run and continuous-run linear LED installations?

The choice between single-run and continuous-run installations depends on your space size, layout, and design goals. Single-run fixtures work well for defined areas or smaller rooms. Continuous-run configurations connect multiple fixtures seamlessly, ideal for large open spaces, long corridors, or retail aisles that require uniform light across extended lengths. GL LED’s modular design allows up to seven fixtures per power lead ensuring flexibility in performance and visual integration.

3. Is a linear light suitable for retail stores?

Yes. Linear LED lighting is an excellent choice for retail stores due to its clean design, energy efficiency, and ability to provide uniform illumination. High CRI ratings ensure products appear vibrant and true-to-color, enhancing visual appeal and influencing purchasing decisions. Fixtures with CCT selection can adapt to seasonal displays or promotional events. GL LED’s architectural linear lights create an inviting, high-quality shopping environment.

Instruction Video:
