LED Linear Light - L8070 - Louver Lens - 120° L Shape

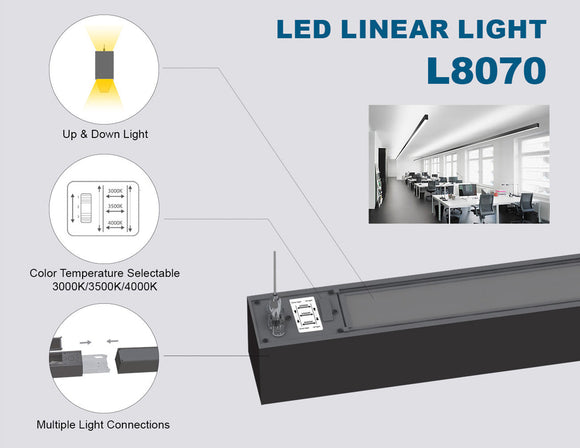

The GL LED L8070 120° L-Shape Louver Lens fixture combines architectural sophistication with exceptional efficiency. Each arm is approximately 16⅝" long and at 4000 K while consuming only 30 W of power—resulting in an impressive output of around 115 lm/W. It features a light distribution of 70% directed downwards and 30% upwards, along with smooth 0–10 V dimming capabilities for versatile lighting control. Constructed from robust aluminum and equipped with a milky flat polycarbonate diffuser, it provides soft, anti-glare, and uniform illumination with a CRI of ≥ 90 and selectable color temperatures of 3000 K, 3500 K, and 4000 K. The fixture supports modular installation, whether used as a standalone unit or in continuous runs, and can be adapted for suspension, surface, or recessed mounting. Optional motion sensors and emergency backup systems further enhance its functionality, making it suitable for a variety of environments including offices, retail spaces, educational institutions, hospitality venues, and more.

Product details

• The LED linear light featuring a louver lens merges efficiency with durability to meet diverse lighting requirements.
• Engineered for commercial and industrial settings, it provides bright, even illumination while minimizing glare due to its louver lens.
• Its compact design facilitates straightforward installation in a range of environments, such as offices, retail areas, and warehouses.
• Constructed from premium materials, this energy-efficient fixture guarantees extended performance and minimal upkeep.
• Ideal for improving visibility and safety, the 120° L Shape LED linear light serves as a dependable option for contemporary lighting solutions.

Applications

• Offices & Conference Rooms
  – Provides low-glare, even lighting that reduces eye strain and improves productivity.
  – L-shape fits perfectly in room corners or above collaborative spaces.
• Retail Stores
  – Enhances product visibility with high CRI lighting.
  – Angular design adds architectural interest to display areas.
• Educational Facilities
  – Ideal for classrooms and libraries, offering consistent, low-glare illumination.
  – Can be installed along corners for aesthetic and functional lighting layouts.
• Hospitality & Coffee Shops
  – Creates modern, inviting ambiance.
  – L-shape forms stylish ceiling patterns for a designer look.
• Hallways & Corridors
  – Great for T-junctions or corner turns.
  – Ensures continuous light flow around architectural features.
• Reception Areas & Lobbies
  – Adds a sleek, high-end visual element.
  – Can serve as both decorative and functional lighting.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Louver Lens 2ft	Louver Lens 4ft	Louver Lens 8ft	Louver Lens L Shape	Louver Lens 120° L Shape	Louver Lens T Shape	Louver Lens X Shape
Power	Up Light	20W	40W	70W	-	-	-	-
	Up & Down Light	25W	50W	100W	30W	50W	40W	50W
	Down Light	20W	40W	70W	20W	40W	30W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm	-	-	-	-
	Up & Down Light	2875lm	5750lm	11500lm	3450lm	5750lm	4600lm	5750lm
	Down Light	2300lm	4600lm	8050lm	2300lm	4600lm	3450lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power consumption and light output specs for the 120° L‑Shape linear light?

A: This fixture consumes 50 W (in the up-and-down configuration). Light distribution is 30% upward and 70% downward, offering both architectural flexibility and practical illumination.

Q2: What color temperature and dimming options are supported?

A: The light supports selectable color temperatures of 3000 K, 3500 K, and 4000 K, paired with 0–10 V dimming for smooth brightness control. It has a high CRI of 90+, ensuring accurate color rendering.

Q3: How versatile is the mounting and modular design of this 120° L‑Shape fixture?

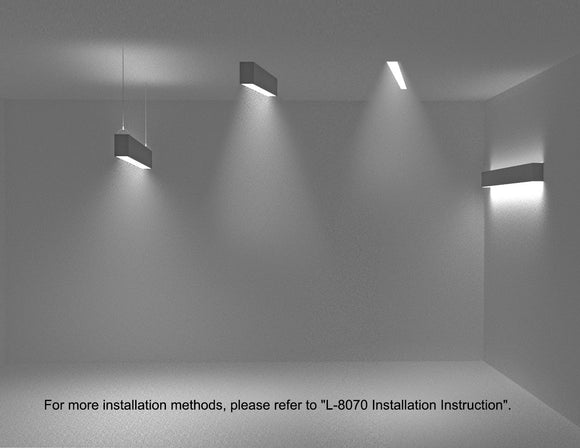

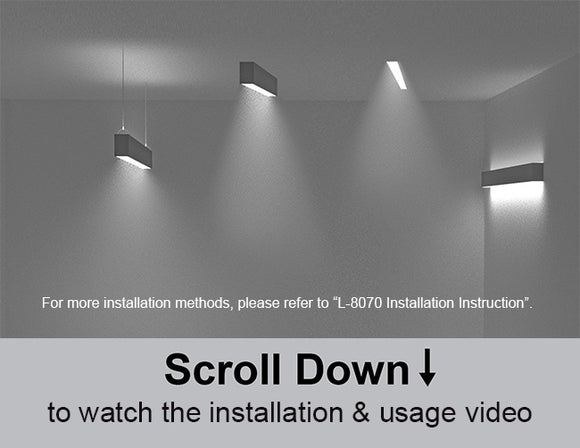

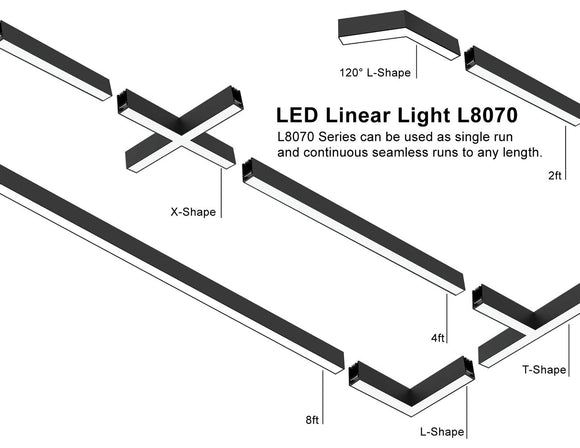

A: Extremely versatile—it can be installed as a suspended pendant, surface-mounted, or recessed (via spring clamp or T-grid). It also supports continuous runs, enabling creative linear or angular configurations when combined with other L8070 linear light modules. (Requires separate mounting kits and linkable brackets.)

Instruction Video:
