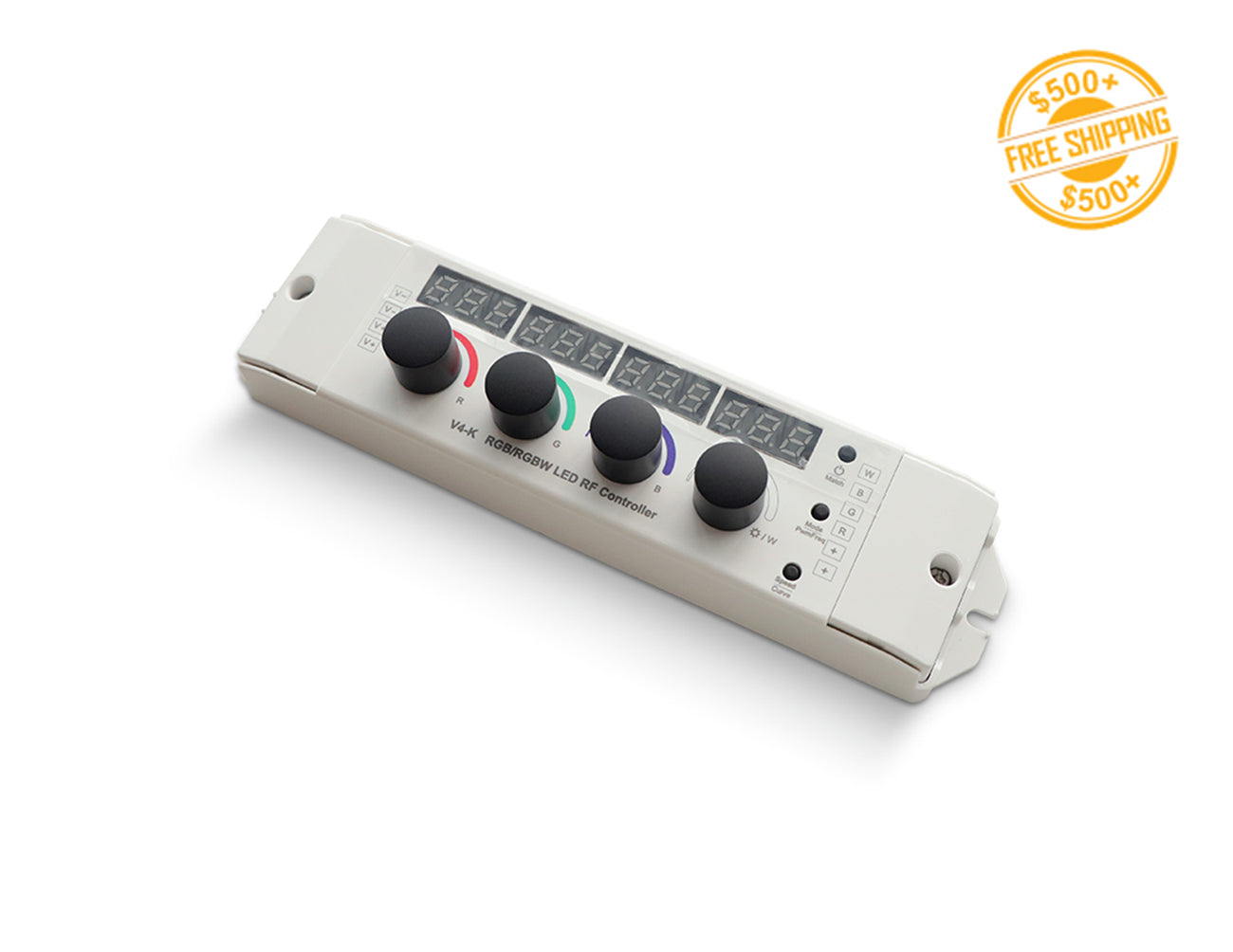

ALC - GLSV4K RGBW Knob RF Remote Controller & Receiver

SKU: GLSV4K-RGBW-KN-1Z-4A4CH-W

$118.57

Product Details

The GLSV4K is a versatile smart RGBW controller that integrates multiple functions, offering standalone control, wireless signal reception, and master-slave coordination. It is suitable for a variety of application scenarios and system architectures. Below are the key features of the GLSV4K and recommended compatible products: Three Core Application Modes

  1. Standalone Controller Mode
    As an independent rotary RGBW controller, the GLSV4K offers precise and sensitive color adjustment. Users can easily adjust the Red, Green, Blue, and White channels using the knob to create customized lighting effects and achieve high-quality illumination. Ideal for small lighting systems or localized lighting control needs.

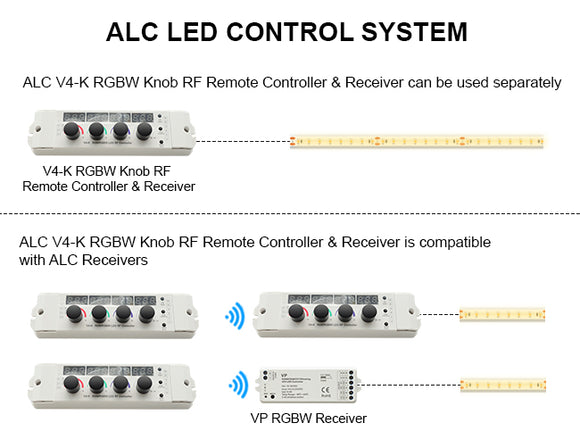

  2. Receiver Mode
    The GLSV4K can also function as an RF wireless receiver, working with the GLSRT9 remote controller for remote operation. By receiving signals from the GLSRT9, users can conveniently control the lighting without direct access to the controller—especially useful in ceiling installations, in-wall mounting, or hard-to-reach areas.
  3. Master Controller Mode
    Beyond standalone and receiver modes, the GLSV4K can serve as a master controller to manage multiple subordinate devices. Compatible devices include:

GLSVP Receiver GLSV4 Receiver Other GLSV4K Controller Units.



TIP: When the total load of your lighting project exceeds the maximum capacity of a single low-voltage controller, you can add an Amplifier (ALC - GLSEV4 RGBW Amplifier/Power Repeater) to extend the control range and achieve synchronized control of multiple fixtures.



Specifications

Input Signal

Knob + Key + RF 2.4GHz

Remote Control Distance

30m(Barrier-free space)

Dimming Range

0 -100%

Dimming Level

256 levels

Dimming Curve

Logarithmic or linear

PWM Frequency

1000/2000/4000/8000Hz

Operating Ambient Temperature

-22°F ~ 122°F

Certifications

CE, EMC, RED



Changing Color(RGB)

Input Voltage Output Current Output Power Remarks Size(L*W*H)

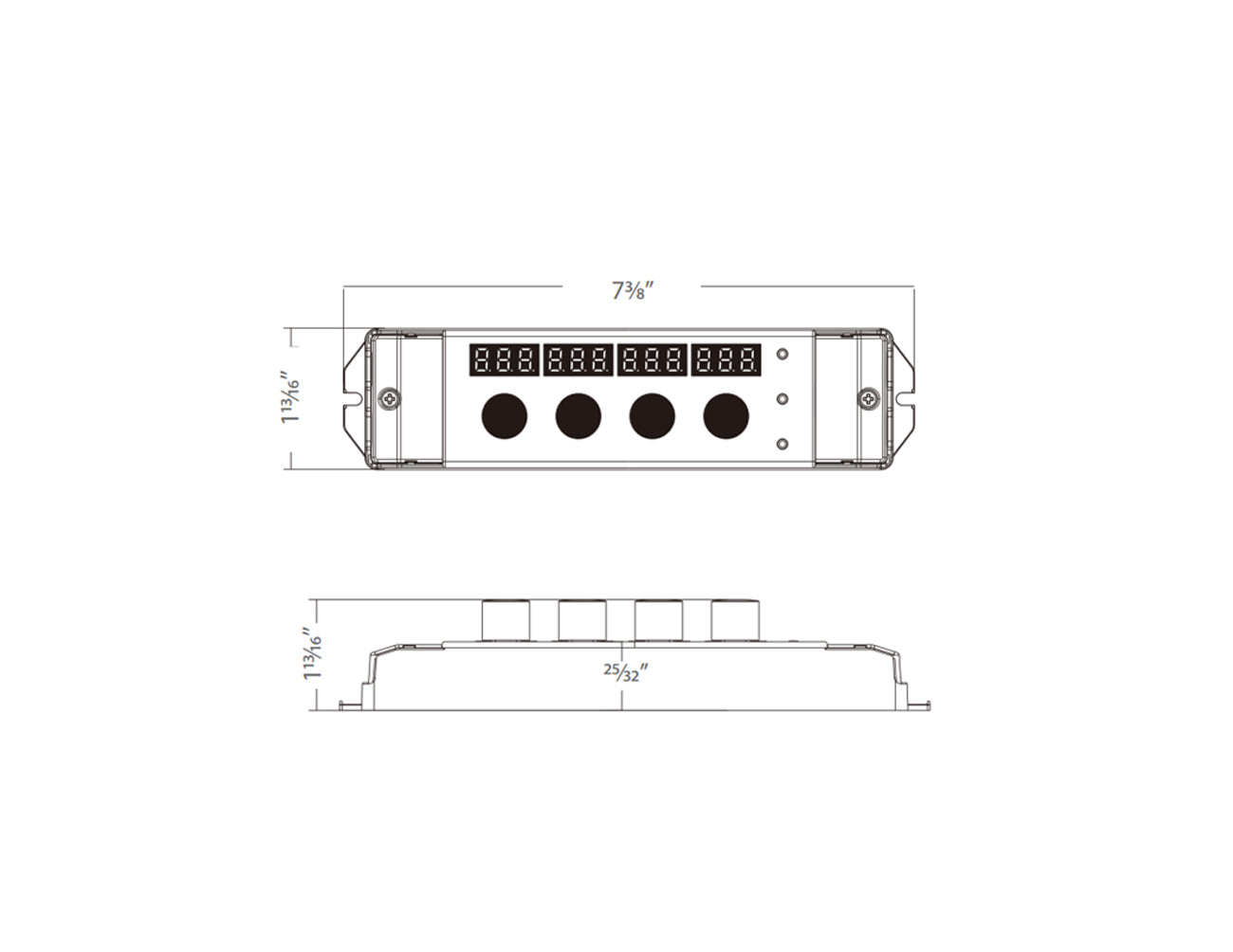

12V 3*4A 144W Constant Voltage 7 3/8"*1 13/16"*1 13/32"
24V 3*4A 288W


Changing Color(RGBW)

Input Voltage Output Current Output Power Remarks Size(L*W*H)
12V 4*4A 192W Constant Voltage 7 3/8"*1 13/16"*1 13/32"
24V 4*4A 384W





Documents

ALC - GLSV4K RGBW Knob RF Remote Controller & Receiver Specification
