Name: ALC - GLSEV4 RGBW Amplifier/Power Repeater
Brand: GL LED LLC
SKU: AMP-GLSEV4-5A4CH
Price: 61.39 USD
Availability: InStock

Description Compatible Products

Product Details

This RGBW amplifier is designed for a wide range of constant voltage LED strips or modules. It supports a wide input voltage range of 12-36V and features 4 output channels, each capable of handling up to 5A, receives PWM signal control. It is an ideal solution for
high-power LED lighting systems.

Specifications:

Operation Voltage	12-36VDC	Output Type	Constant voltage
Maximum Current	20A	Protection	Reverse polarity / Over-heat / Short circuit
Input Signal	PWM	IP Rating	IP20
Operating Ambient Temperature	-22°F ~ 131°F	Certifications	CE, RoHS, FCC

Single Color

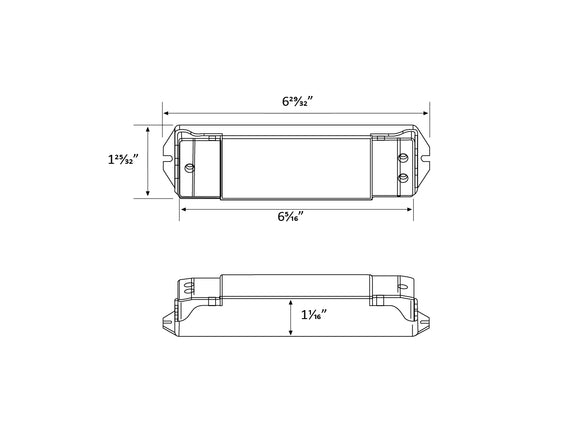

Input Voltage	Output Current	Output Power	Remarks	*Size(LWH)*
12V	5A	60W	Constant Voltage	6 29/32”x1 25/32”x1 1/16”
24V	5A	120W
36V	5A	180W

Changing Color (CCT) - Two Channe

Input Voltage	Output Current	Output Power	Remarks	*Size(LWH)*
12V	2*5A	120W	Constant Voltage	6 29/32”x1 25/32”x1 1/16”
24V	2*5A	240W
36V	2*5A	360W

Changing Color (RGB) - Three Channel

Input Voltage	Output Current	Output Power	Remarks	*Size(LWH)*
12V	3*5A	180W	Constant Voltage	6 29/32”x1 25/32”x1 1/16”
24V	3*5A	360W
36V	3*5A	540W

Changing Color (RGBW) - Four Channel

Input Voltage	Output Current	Output Power	Remarks	*Size(LWH)*
12V	4*5A	240W	Constant Voltage	6 29/32”x1 25/32”x1 1/16”
24V	4*5A	480W
36V	4*5A	720W

Documents

ALC - GLSEV4 RGBW Amplifier/Power Repeater Specification
