Product Details

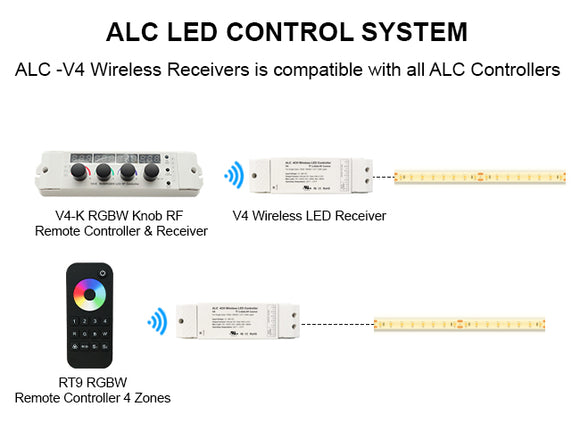

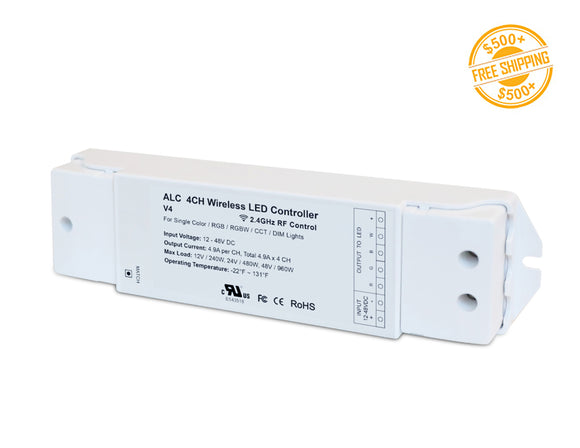

This product is a 12-48VDC constant voltage RF controller with 4 channel output and 4.9 Amps per channel, which is compatible with a variety of RF remotes. Built-in changing LED patterns are available and can be saved to each zone. The brightness of each R, G, B, W channel can be adjustable separately to achieve multitudes of changing colors.
Specifications
Input Signal |
RF 2.4GHz |
Remote Control Distance |
80ft (Barrier-free space) |
Dimming Range |
0 -100% |
Dimming Level |
4096 levels |
Dimming Curve |
Logarithmic |
PWM Frequency |
1000Hz (default) |
Operating Ambient Temperature |
-22 °F ~ +131°F |
Certifications |
RU, CE, ROHS, FCC |
Documents
ALC - GLSV4 4-Channel Wireless LED Receiver Specification
