WIDE FLAT - YD 2002 Aluminum Channel + Clear Diffuser - 94"

SKU: YD-2002-AL-8-C

Login to view price

YD-2002 is a flat LED aluminum extrusion made of anodized extruded aluminum with a diffuser, and is designed to accommodate LED strip and tape lights to complete a stylish LED strip light fixture. Each piece is 94” long and has different finish options for both the channel and the diffuser. The aluminum extrusion has options of a silver color channel with a clear diffuser and a silver color channel with a milky diffuser.

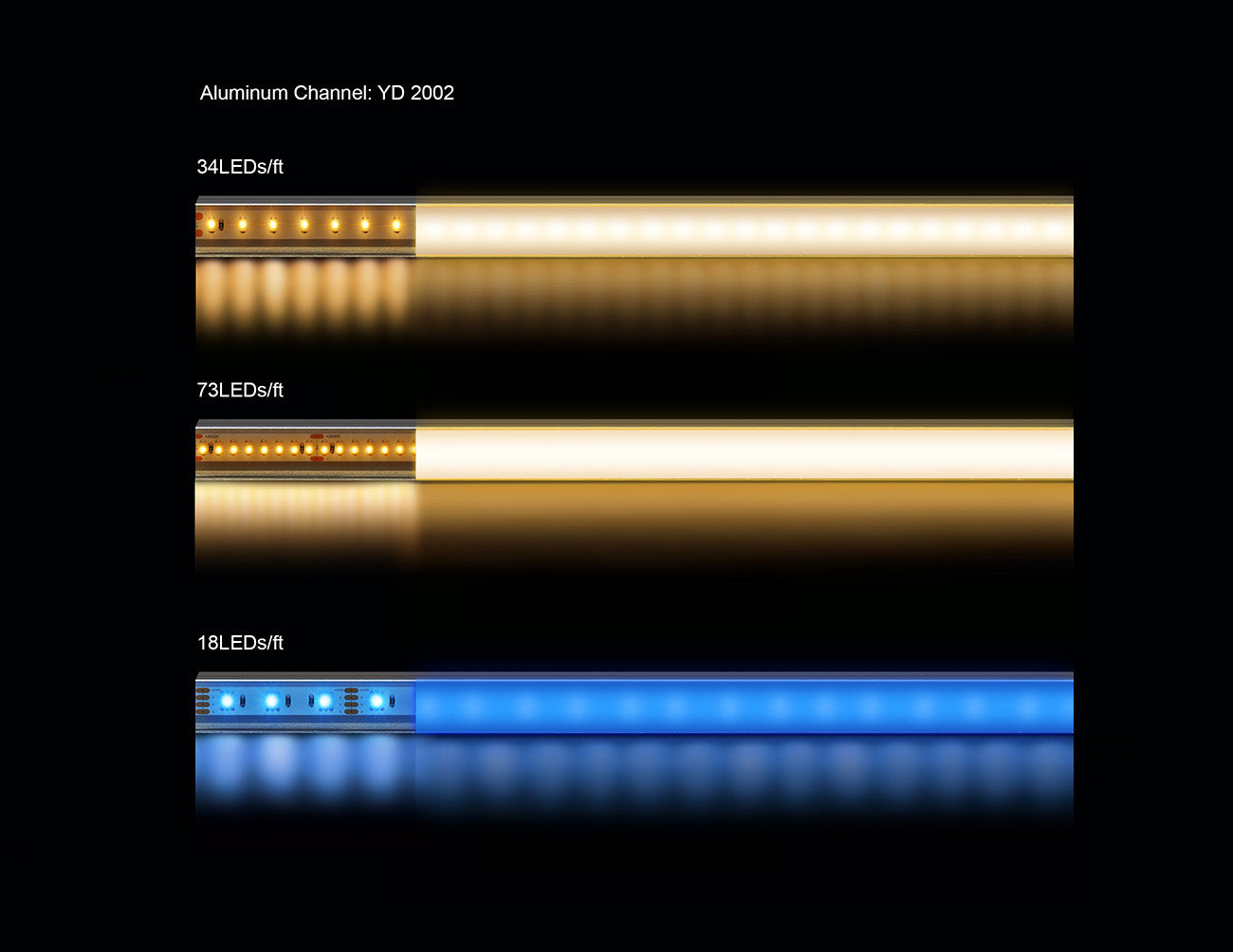

YD-2002 silver aluminum channel with a clear diffuser helps to produce a maximum light output.

The aluminum extrusion can fit slim designs and thin furniture pieces. It protects LED strip lights from damages and dusts by providing a rigid and enclosed housing space. It also works as a heat sink to dissipate heat from LED lights.

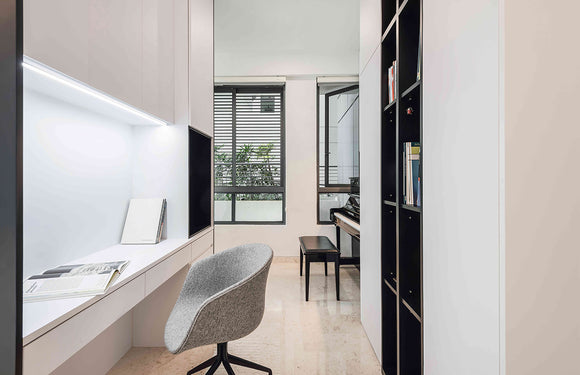

The aluminum extrusion is one of the most commonly used extrusions for housing various types of LED strip or tape lights and versatile for different applications. They can be surface mounted using either mounting clips (sold separately) or 3M backing tapes (sold separately), making them ideal for cover lights and under cabinet lights.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: YD-2002-AL-8-C

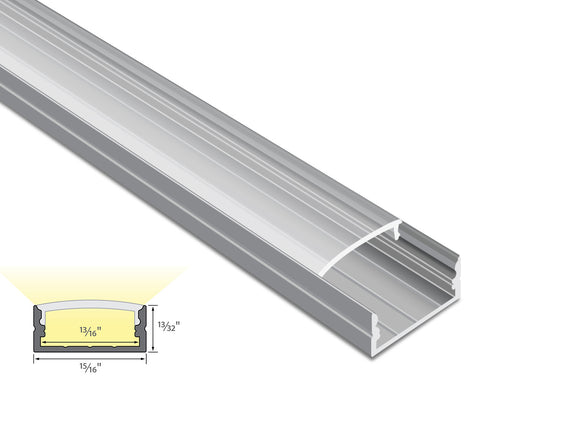

  • Dimension: L 94", W 15/16", H 13/32"
  • Internal width:  13/16"
  • Work Environment / IP Rating: IP20
  • Finish options: Anodized extruded aluminum
      Aluminum Channel: Silver, Diffuser: Clear (YD-2002-AL-8-C)
  • Installation options: Surface Mounted
  • Special features: Wide Flat

Aluminum Channel Specification - WIDE FLAT YD 2002

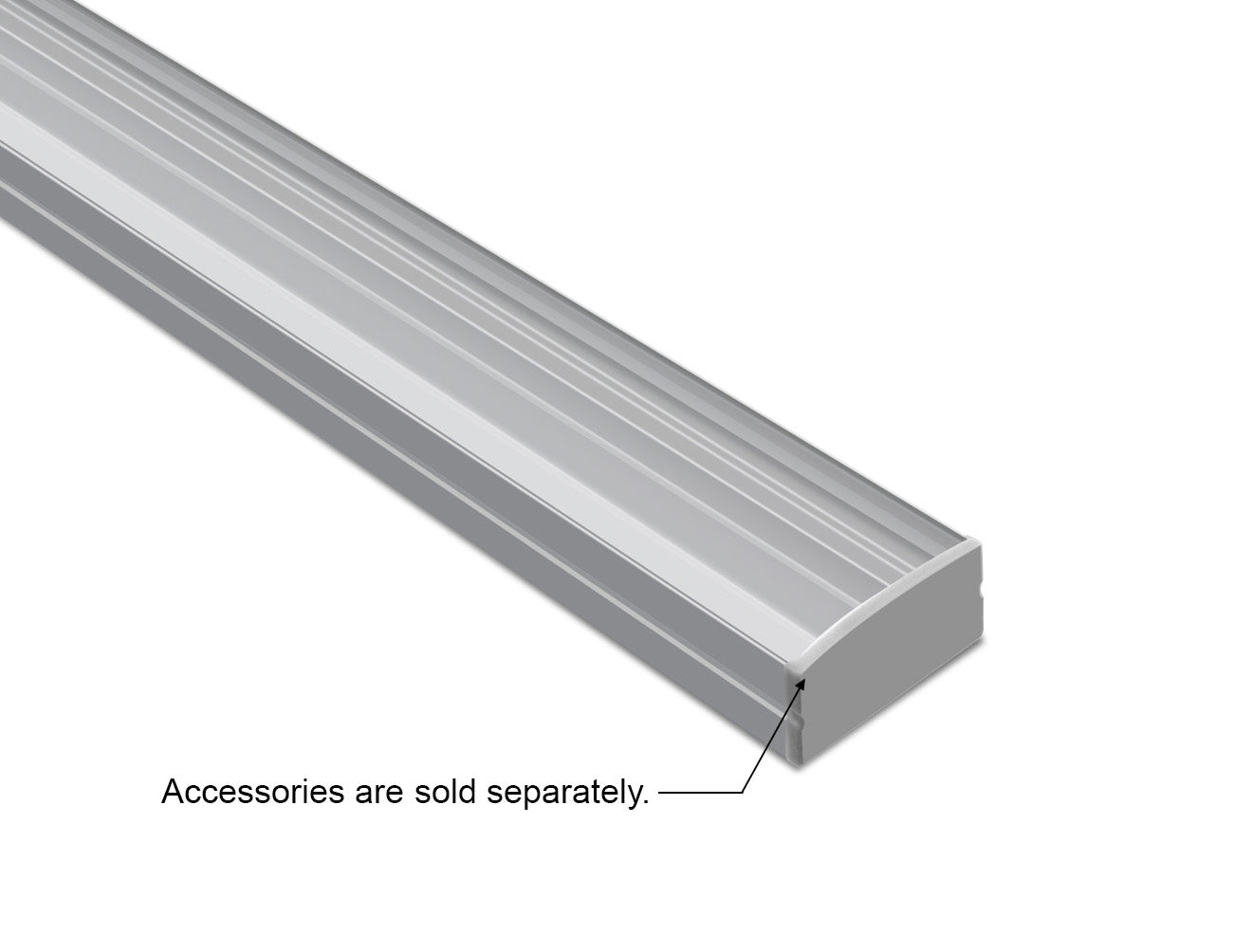

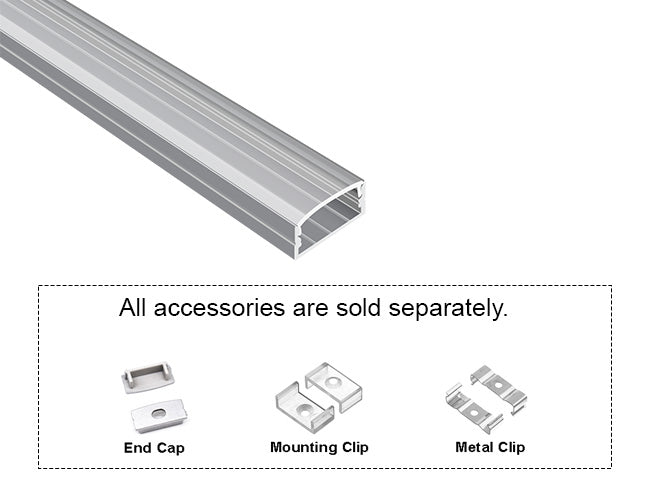

Accessories are available and sold separately

End Caps
