WASH RECESS - JH 1722 Black Aluminum Channel + Milky Diffuser - 24"/94"

SKU: JH-1722-AL-2-M-B

Login to view price

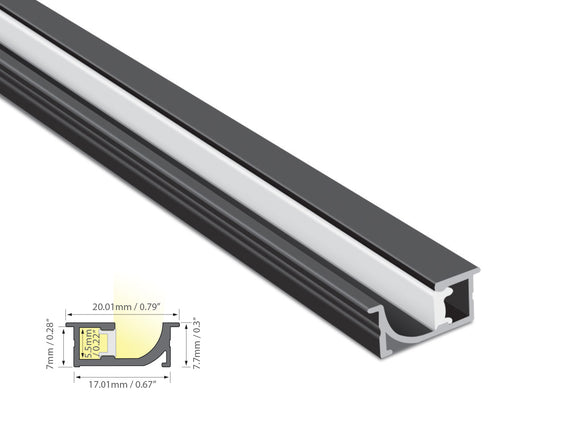

JH-1722 is a wash recessed angle extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.73” in width and 0.3” in height. Internal width of the aluminum channel is 0.22", compatible to host a 5mm wide LED strip light. Each piece is 24" or 94” long and has options of a sleek silver color finish and a stylish black color finish.

The recessed design allows for a sleek and seamless integration of LED strip lights into surfaces, providing a clean and polished appearance. The channels hide the light source and wiring, resulting in a neater and more professional-looking installation.

The JH-1722 aluminum extrusion is ideal for recessed shelf lighting with a 45 degree light distribution. The lights are reflected out through a curved surface to produce a softer and in-direct illuminate, perfect for ambient lighting applications.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: JH-1722-AL-2-M-B
  • Dimension: L 94", W 5/16", H 25/32"
  • Internal width: 7/32"
  • Work Environment / IP Rating: IP20
  • Finish options: Black, Silver, Anodized extruded aluminum, Frosted plastic Cover
  • Installation options: Recessed Mounted
  • Special features: Wash Recess

Aluminum Channel Specification - WASH RECESS JH 1722

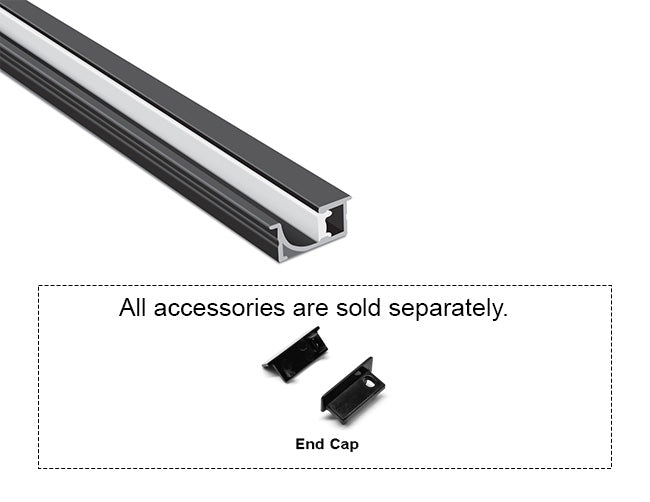

Accessories are available and sold separately

End Caps
