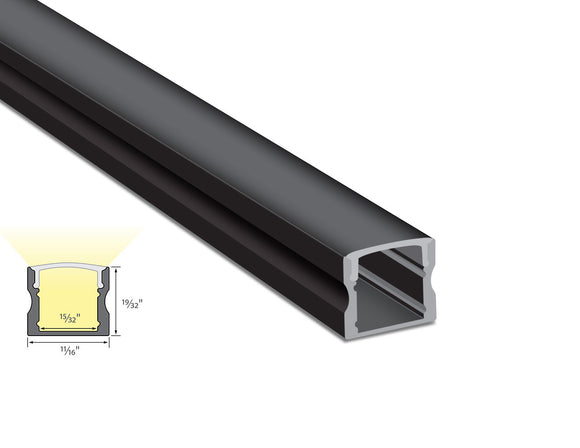

Dimensions of the YD 1202 aluminum channel.
GL LED Slim Square YD-1202 Black Aluminum Channel with Black Diffuser delivers subtle, even illumination and a sleek, square-edge design. Built for efficient heat control and durability, it’s perfect for refined LED strip lighting applications.

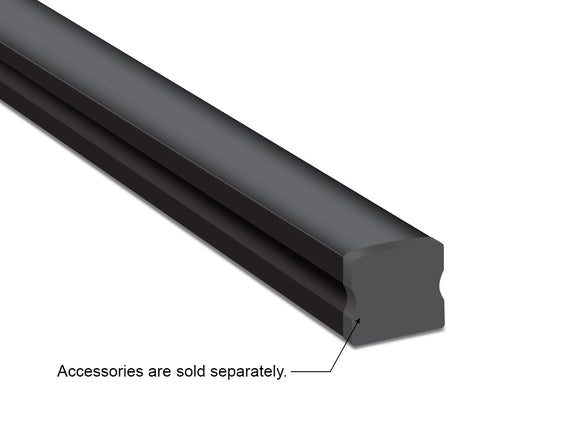

GL LED Slim Square YD-1202 Black Aluminum Channel with Black Diffuser produces subtle, glare-free illumination with a sleek, matte finish. Engineered for durability and optimal thermal performance, it suits sophisticated LED lighting applications.

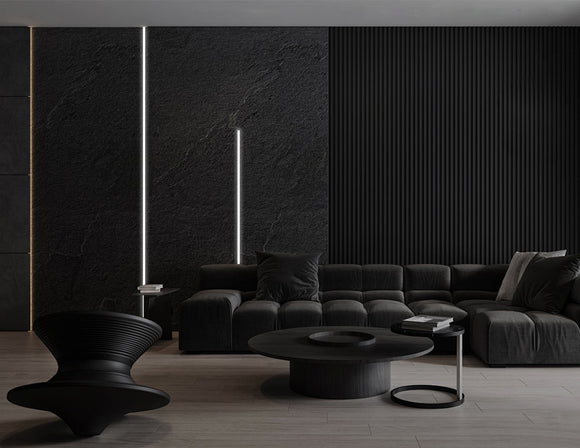

LED strip lights are used in an aluminum channel to create a unique lighting design in a living room.

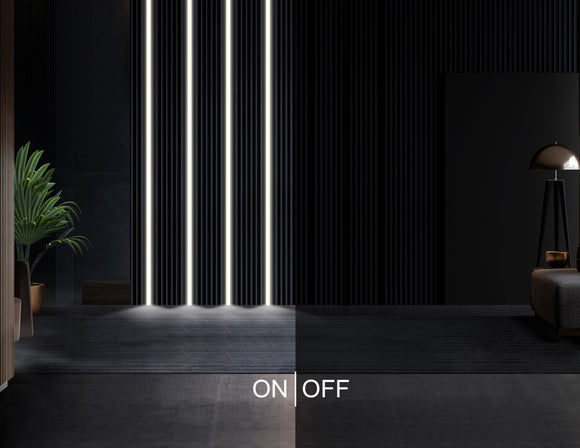

When the LED strip lights are turned off, the black aluminum channel blends into the room decor seamlessly.

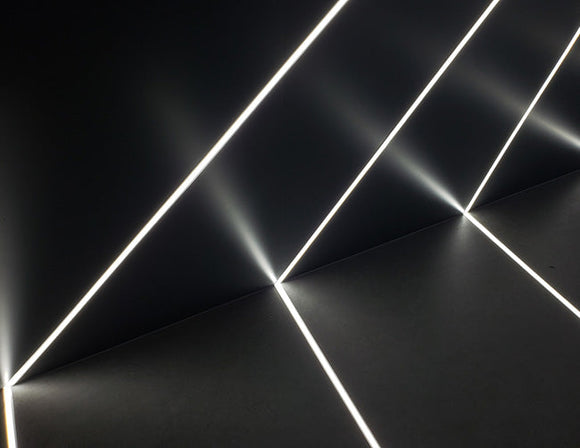

LED strip lights are used in an aluminum channel to illuminate a wall and ceiling in an innovative and unique way.

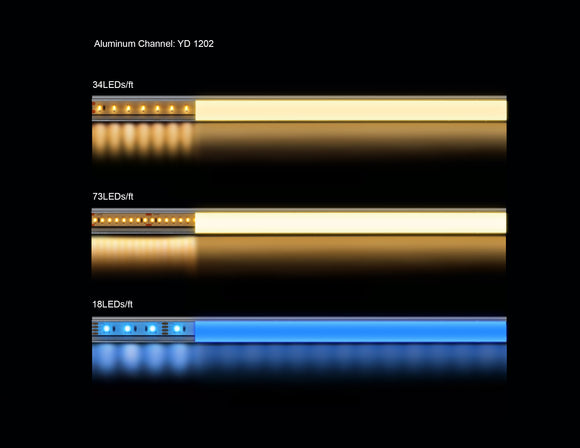

Examples of light diffusion in channels with different LED strip light types.
Example of light diffusion in YD 1202 channel with GL LED's standard LED strip light.
Example of light diffusion in YD 1202 channel with GL LED's premium Legend series LED strip light.

SLIM SQUARE - YD 1202 Black Aluminum Channel + Black Diffuser - 94"

SKU: YD-1202-AL-8-B-B

$40.97

Description Accessories

Product Details

YD 1202 Black Aluminum Channel + Black Diffuser is a slim square-shaped extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.67” in width and 0.59” in height. The larger depth of the channel helps avoid hotspots with strip lights inside. Internal width of the aluminum channel is 0.47", compatible to host a 10mm LED strip light. Each extrusion is 94” long and has a silver color with a milky diffuser.

The aluminum extrusion can be easily surface mounted. The sleek design of the channel makes it ideal for a neat finish of LED strip light fixtures.

Want to try our product sample >>Click here!

Note: LED strip light not included.The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

This product includes:
· YD 1202 Black Aluminum Channel – 94"*1
· YD 1202 Black Diffuser – 94"*1


Specifications

Dimension

L 94", W 11/16", H 19/32"

 Internal width

15/32"
Material

Anodized Aluminum

 Finish

Black aluminum and black diffuser
Diffuser

Black

 Installation

Surface Mount
Application

Indoor

 Length

94 in



Documents

Aluminum Channel Specification - SLIM SQUARE YD 1202

View Accessories


What Are the Benefits of Aluminum LED Channels?

· Aesthetics and visual impact:
Aluminum channels with diffusers create a smooth, even glow, eliminating harsh LED hot spots and enhancing visual comfort.

· Protection and durability:
The channels prevent debris from accumulating on the LED strips and clogging heat sinks, which can lead to premature failure.

· Heat dissipation and longevity
Optimal heat management through aluminum channels helps maintain the LED's color consistency and light output over time.

· Light diffusion and quality:
Different diffuser options (frosted, milky, clear) allow for tailoring the light output and intensity to specific needs.

· Versatility and customization:
Various accessories, like mounting clips, end caps, and connectors, simplify installation and create a polished finish.

· Professional finish and value:
Aluminum channels elevate the perceived value and sophistication of the entire lighting project.

Frequently bought together

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

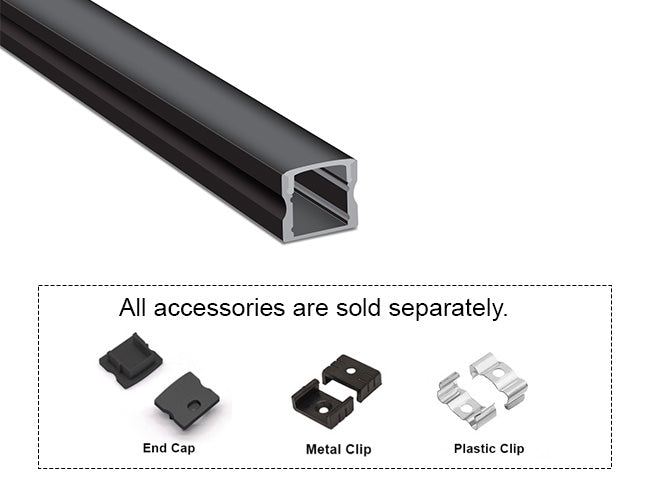

Accessories are available and sold separately
