Product Details

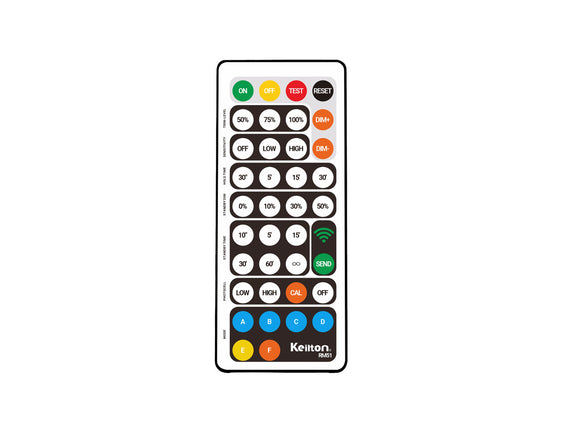

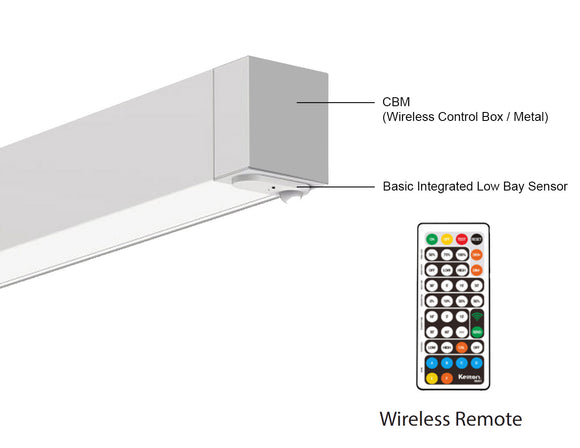

This product is a wireless RF remote controller for intelligent lighting control, designed for commissioning and adjusting luminaires equipped with occupancy sensors and daylight harvesting functionality.
The remote allows installers to wirelessly configure, adjust, and store lighting parameters such as on/off control, manual dimming, maximum output trim level, sensor sensitivity, hold time, standby dim level, standby time, and photocell settings.
With support for multiple programmable memory modes (A–F), the remote enables fast and consistent setup across multiple luminaires. Once a configuration is saved, the same settings can be applied to additional fixtures with a single command, significantly reducing commissioning time on-site.
The remote also supports Daylight Harvesting (F Mode), enabling continuous dimming in response to available ambient daylight to maintain a stable illumination level while improving energy efficiency.
Visual feedback is provided through luminaire flashing to confirm successful configuration and parameter transmission.
 |
 |
Key Features
- Wireless RF remote commissioning for sensor-based luminaires
- ON / OFF control and manual dimming adjustment
- Adjustable maximum output (Trim Level: 50% / 75% / 100%)
- Configurable sensor sensitivity, hold time, and standby behavior
- Standby dim and standby time adjustment
- Photocell configuration and ambient light calibration (CAL)
- Programmable memory modes A–F for rapid multi-fixture setup
- Daylight harvesting and continuous adjustment mode
- Visual confirmation via luminaire flash feedback
Operating Modes
- Memory Modes (A–D): User-defined configurations stored for repeated use.
- E Mode: Manual dimming mode for visual adjustment of desired light level.
- F Mode: Daylight harvesting mode with continuous light output adjustment based on ambient light.
Applications
- Commercial and industrial lighting commissioning
- Warehouse and low-bay lighting control
- Offices, corridors, and public spaces
- Energy-efficient lighting retrofit projects
Specifications
| Output Signal |
RF(2.4GHz) |
Remote Control Distance |
Up to 80 ft |
| Power Supply |
<3V DC (AAA ×2) |
Operating Ambient Temperature |
-22°F~131°F |
| Current Consumption |
< 5 mA |
Control Method |
RF Wireless |
| Dimming Method |
PWM |
IP Rating |
IP20 (Dry Location) |
|
Certifications |
RU, CE, RoHS |
|
|
