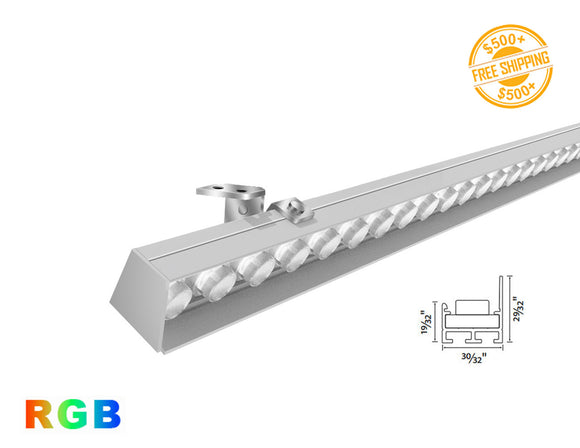

LED Wall Washer Linear Light - RGB Wall Grazer 2321

SKU: GL-WWLL-ES2321-2835-46-27K-24V-30-7

Login to view price

Introducing our sleek LED Wall Washer Linear Light - Wall Grazer 2321, ideal for ceiling installation due to its minimalist open design.

This customized LED wall washer linear light excels in wall washing applications, delivering even and extensive light output. The fixture emits up to 251 lumens/ft. Its adjustable mounting brackets make it highly versatile for different applications. Engineered for a lasting impact, this RGB wall washer strip light guarantees 50,000 hours of luminance, operating at 24 VDC and is available in color options: RGB.

Customized LED Wall Washer Linear Light
Color Options

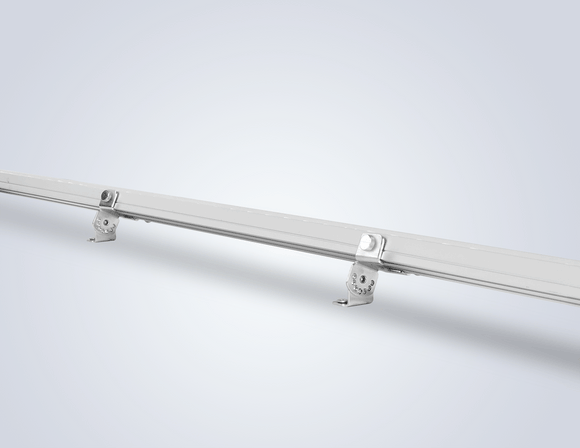

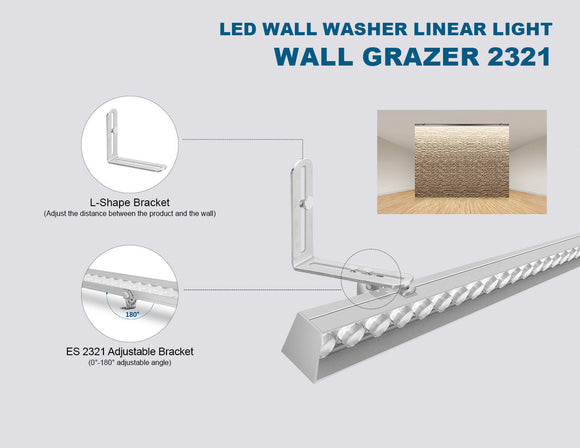

Installation Type: Surface mount with adjustable brackets

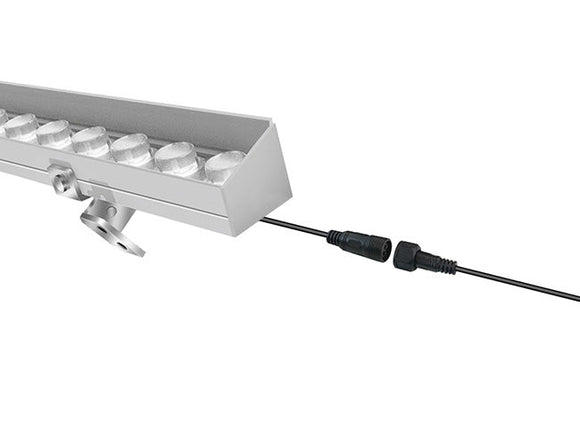

Lead Wire: 20AWG, 2ft, Black, with female waterproof DC connector
Lead Wire Location: Bottom feed lead wire at the end

Each light fixture comes with 2pcs adjustable brackets and 1pcs male waterproof DC connector (2ft)

This product is the linear light fixture only, please select compatible transformers based on the light fixture total power consumptions, and controllers based on control preferences.

All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.


What is the difference between wall washing and wall grazing?

Wall washing and wall grazing are two types of lighting techniques to make accent lights.

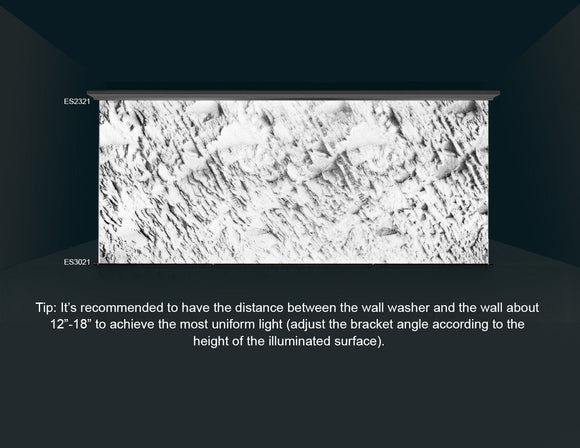

Wall washing involves spreading light evenly over a wall, making it appear clear, bright, and free of shadows. This enhances the wall's architecture and creates a feeling of spaciousness. A flat, smooth wall surface is ideal for wall washing to minimize shadowing. For optimal wall washing, lights are typically placed at the ceiling level and more than 1ft (preferably 2-3 ft) away from the wall to allow the light to spread at a wider angle. The lights should be aimed towards the center of the focus, such as a piece of art or architectural feature, and positioned at eye level. Angle-adjustable lights are recommended for wall washing lighting.

Wall grazing, unlike wall washing, is a lighting technique used to enhance the texture of vertical surfaces by emphasizing shadows. By shining light just above textured surfaces, wall grazing creates distinctive shadows, giving walls a more dramatic appearance. To perform wall grazing, the lights should be positioned closer (typically less than 1ft) to a textured wall (bricks, woods, or stones) and can even be mounted on the ground for an uplighting effect. The intensity of the shadows can be adjusted by moving the lights closer or farther from the wall. Angle-adjustable lights are recommended for wall grazing lighting.

Instruction Video:

  • Operation Voltage: 24VDC
  • Wattage per ft: 6W/ft
  • Brightness/Lumen per ft: 251lm/ft
  • Work Environment/IP Rating: IP65
  • Long Lifetime: 50,000hrs
  • Color: RGB
  • Beam Angle: 30°
  • One Run Max (No Voltage Drop): 32.8ft
  • Certification: UL
  • Warranty: Limited 5 years warranty

LED Wall Washer Linear Light-RGB-Wall Grazer Specification
