LED 1010N Neon Light - Side Bend - Single Color - Wet Location - 3500K - 24V - 1

LED 1010N Neon Light - Side Bend - Single Color - Wet Location - 3500K - 24V

SKU: GL-1010N-SB-2835-35K-24V-IP67-BF-32

Login to view price

20+pcs ask for quote
Free Sample Available
Description Specification Accessories

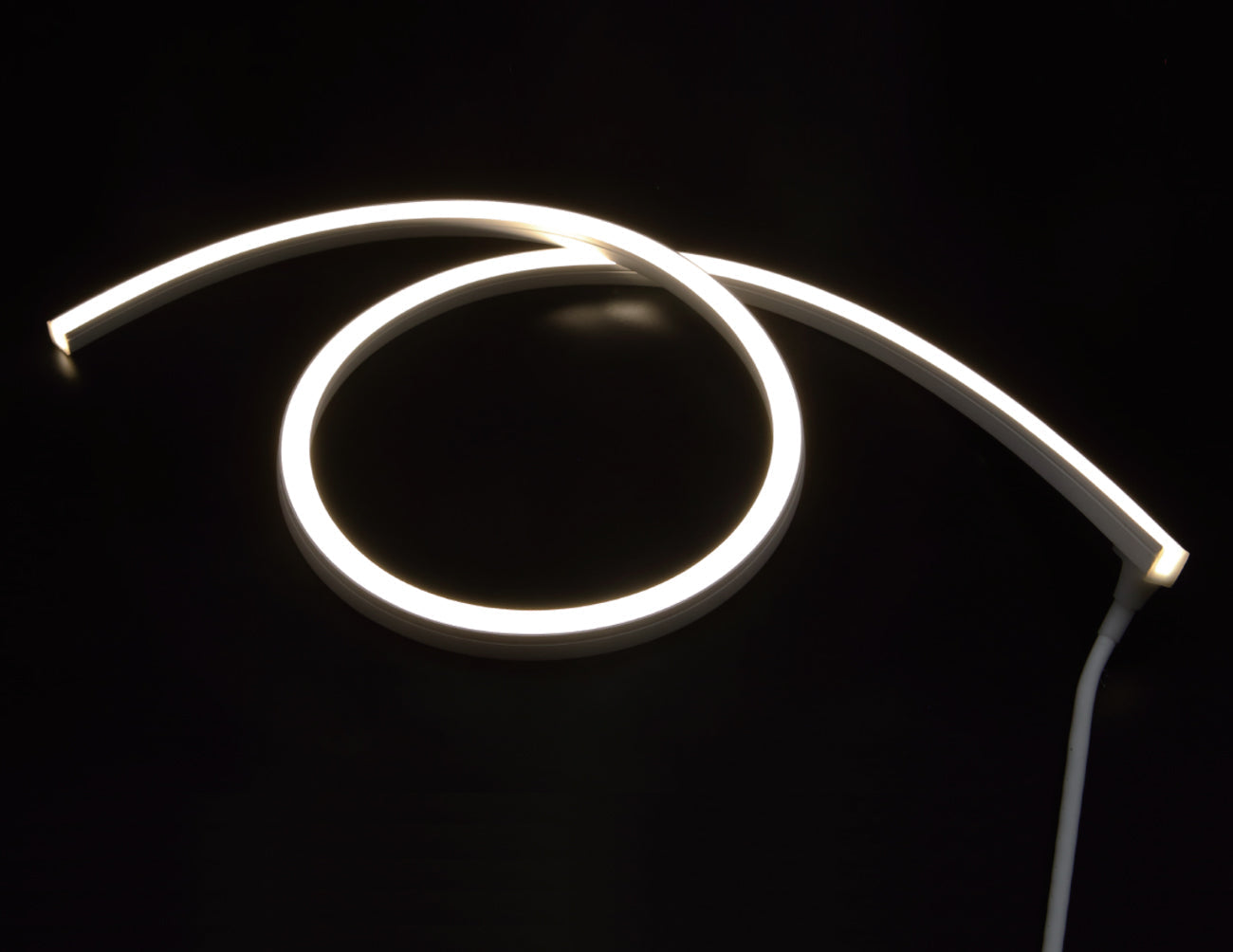

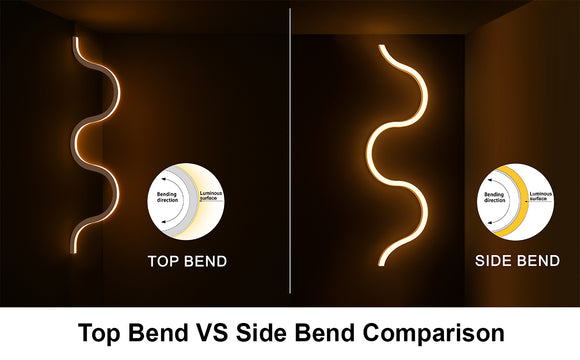

GL LED Neon Light Horizontal Bending 1010HB PRO is a versatile LED neon light product, that can be bent horizontally to allow great flexibility for circular lighting designs and produce uniform and even lights without any hotspots. This product is specially designed with the technology that a single damaged LED does not compromise the overall lighting effect of the strip light. It offers four distinct color temperatures, all with a CRI greater than 90. The surface of the neon light is treated with matte, producing its smoothness and resistance to dust. Its IP67 rating ensures the versatile application of the product in both indoor and outdoor environments.

Customized Service is available, click here to get more information.

LED Low Voltage Light System


Transformer Recommendation for LED Neon Light Side Bend (3W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-2 0-9 0-9 0-16 0-16 0-25
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-26 0-40 0-53 0-85 0-160 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-6 0-40 0-53 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-8 0-16 0-25 0-40 0-53 0-80
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use:（use 50% capacity)
Length of Strip Light(ft) 0-10 0-16 0-25 0-33 0-53 0-100
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-25 0-33 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-5 0-10 0-16 0-25 0-33 0-50
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Operation Voltage: 24VDC
  • Wattage per ft: 3W/ft
  • Brightness/Lumen per ft: 178 LM/ft
  • Dimension: L 32.8ft, W 0.39in, D 0.39in
  • Length: 32.8ft
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP67 (Wet location)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >90
  • Color Temperature options: 3500K
  • Cuttable Increments: 3.94"
  • One Run Max: 32.8'
  • Certification: UL
  • Warranty: Indoor 5 years, Outdoor 3 year

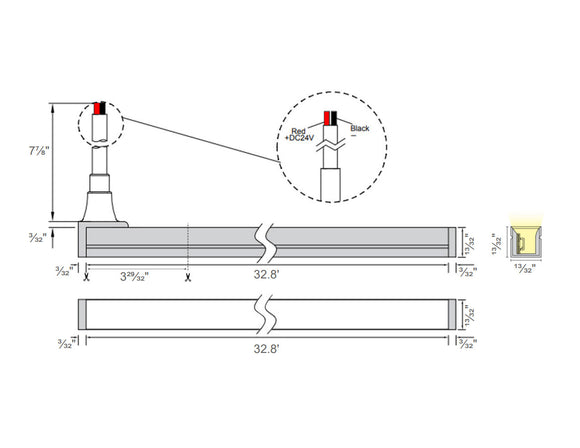

LED Neon Light Side Bend Specification

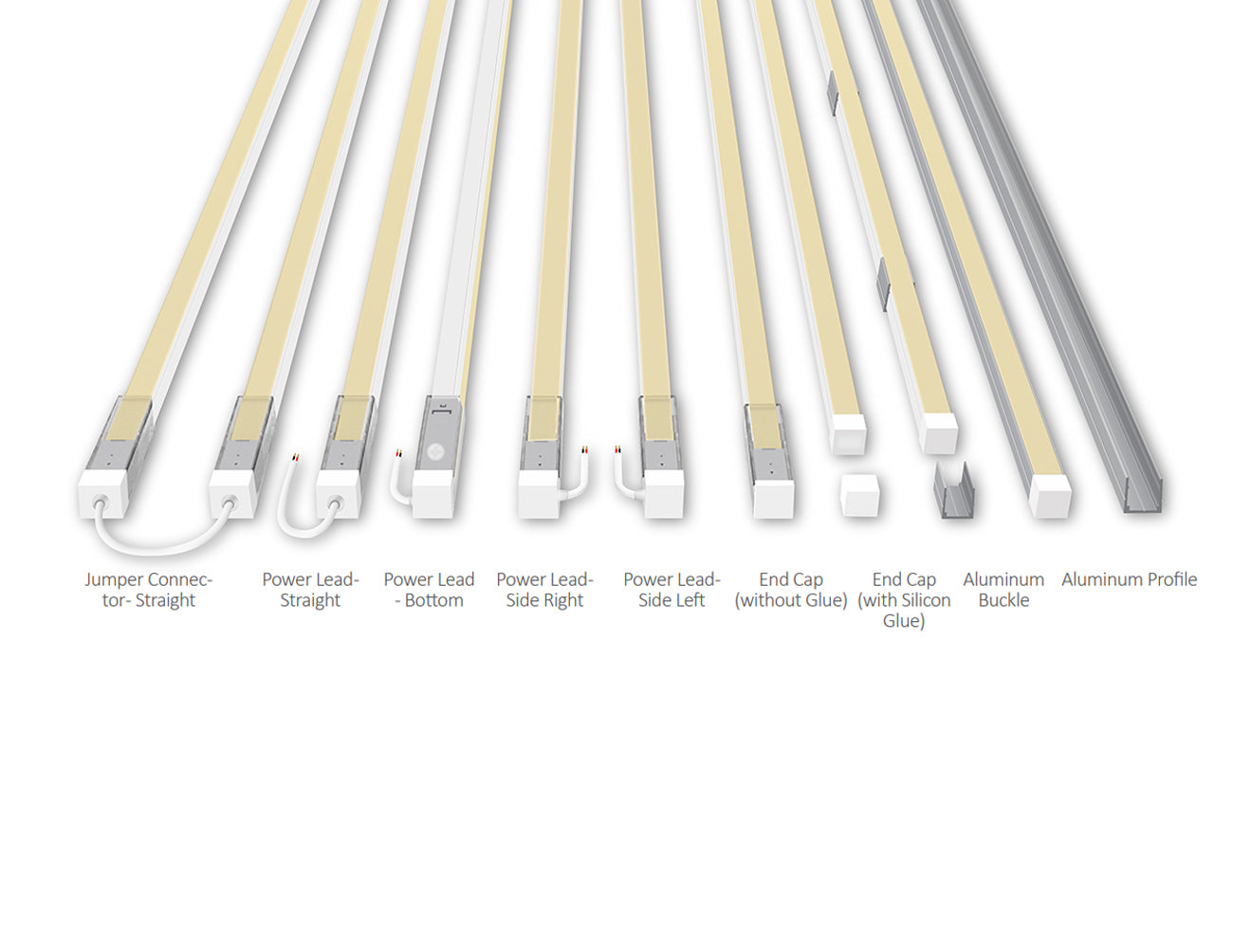

Connection Accessories
End Cap Type A
(need silicone glue)		 End Cap Type B
(no need glue) 		Side Bend
Jumper Connector		 Side Bend

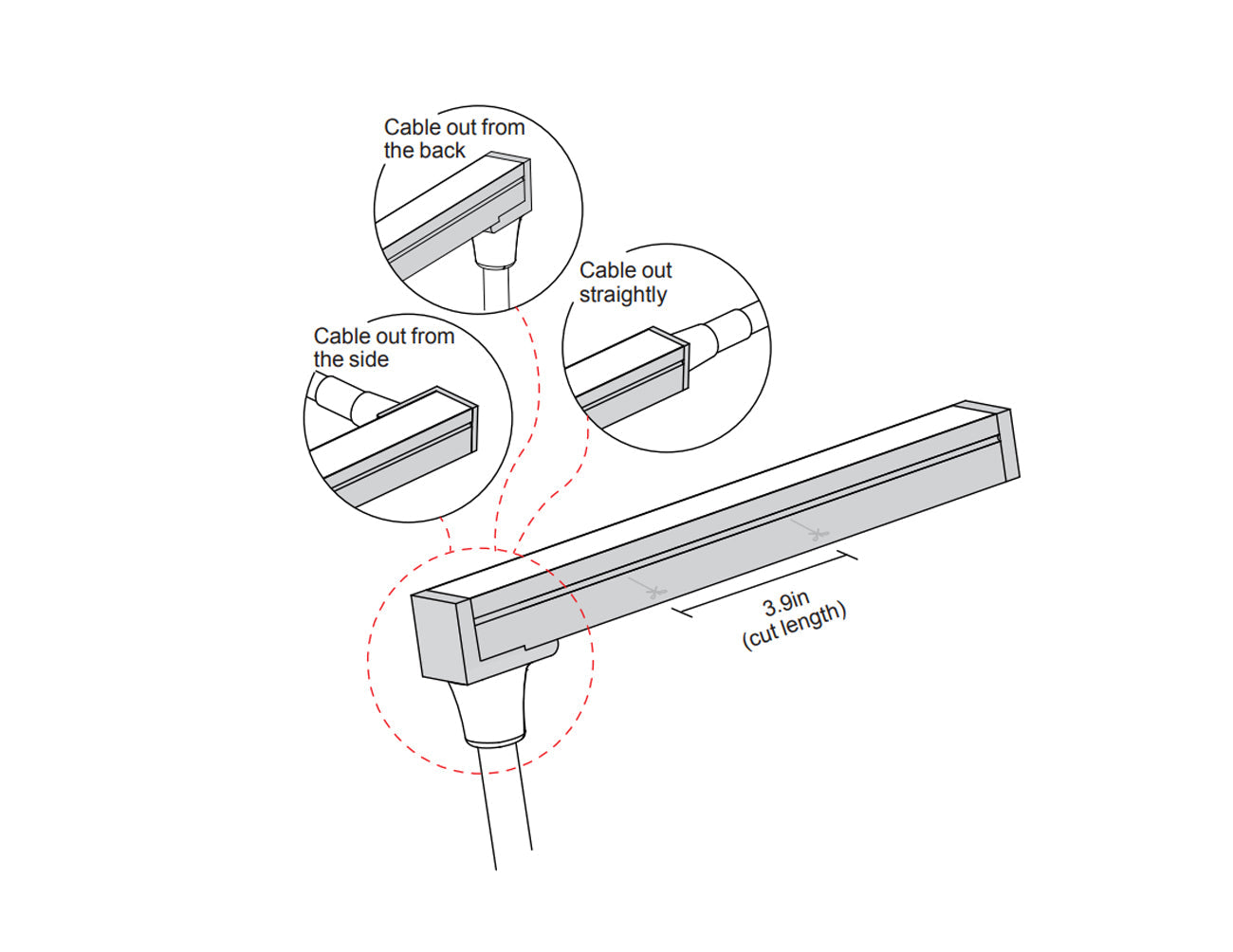

Power Lead - Rear Feed		 Side Bend
Power Lead - Bottom Feed		 Side Bend
Power Lead - Left Side Feed		 Side Bend
Power Lead - Right Side Feed

Mounting Accessories
Mounting Buckle Mounting Channel Bendable Bracket
