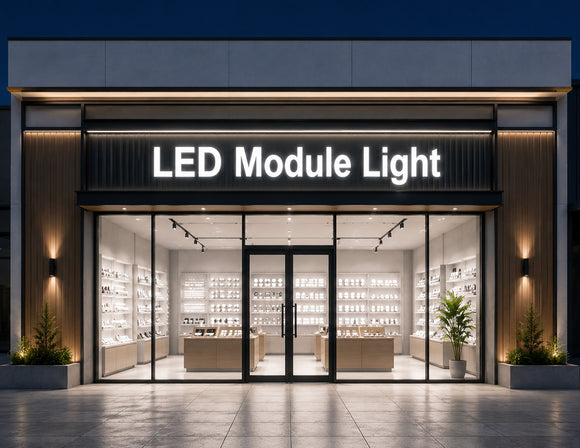

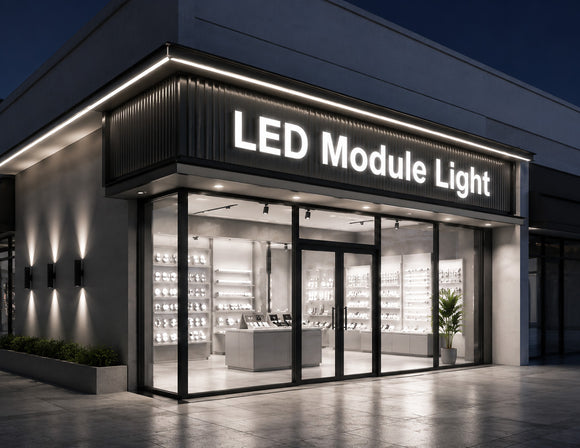

Samsung 2835 LED Chip, With a wide beam angle, Made in Korea. LED Module has excellent transmissivity and uniformity, which is applicable for lower channel letters.
![]() |
![]() |
Specifications:
Input Voltage ![]() |
12VDC |
Operating Ambient Temperature |
-22°F~158°F |
Chip |
Samsung |
Storage Temperature |
-40°F-167°F |
Lead Wire ![]() |
18 AWG, 2 wire |
IP Rating ![]() |
IP68 (Waterproof) |
Length |
2 modules/ft |
Power Consumption ![]() |
1.2 W/Module |
Dimmable ![]() |
0-10V, MLV, ELV, Incandescent, and CFL/LED |
Color Temperature ![]() |
6500K, 9000K |
One Run Max |
50pcs modules |
Current |
100mA |
Brightness |
Light Efficiency ![]() |
Viewing Angle | |

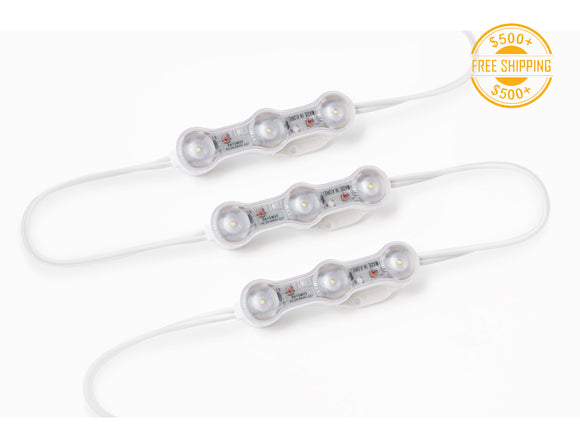

6500K-Frosted Lens | 131 lm/module | 109 lm/W | 170° |

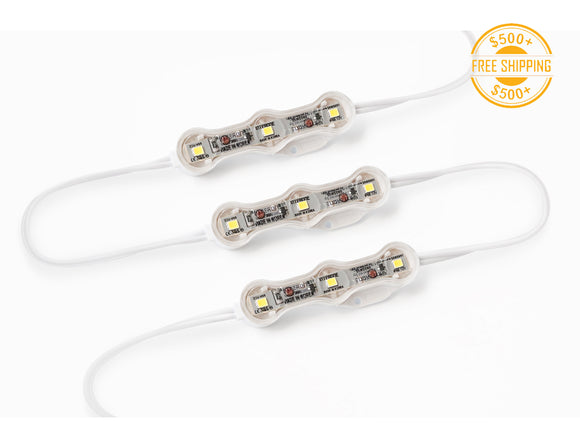

9000K-Clear Lens | 130 lm/module | 108 lm/W | 140° |

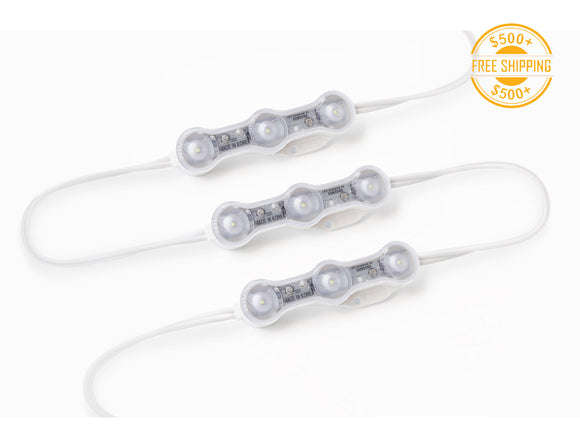

9000K-Frosted Lens | 125 lm/module | 104 lm/W | 170° |
Documents:
LED Module Light Specification
View Accessories
Power Supply Calculator – Designed just for You
Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.
Power Calculator
The power supply you need is
Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.
Installation Accessories:
LED Module Holder Bottom and Top
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
Similar Products
Model | Color | Lens | Viewing Angle | Power (W/pc) | Brightness (LM/pc) |
Z3V-05-O3-a7-072-S2 | 3000K | Frosted | 170° | 0.72W/pc | 62LM/pc |
Z3V-05-W6-a7-120-S2 | 6500K | Frosted | 170° | 1.2W/pc | 131LM/pc |
Z3V-05-W9-a4-120-S2 | 9000K | Clear | 140° | 1.2W/pc | 130LM/pc |
Z3V-05-W9-a7-120-S2 | 9000K | Frosted | 170° | 1.2W/pc | 125LM/pc |
Z3V-05-R-a7-072-K2 | Red | Frosted |
170° | 0.72W/pc | 16LM/pc |
Z3V-05-B-a7-072-K2 | Blue | Frosted | 170° | 0.72W/pc | 10LM/pc |
Z3V-05-G-a7-072-K2 | Green | Frosted | 170° | 0.72W/pc | 48LM/pc |
Z3V-05-Y-a7-072-K2 | Yellow | Frosted | 170° | 0.72W/pc | 17LM/pc |
Z3V-05-P-a7-072-K2 | Pink | Frosted | 170° | 0.72W/pc | 8LM/pc |
Z3V-05-T-a7-072-K2 | Turquoise | Frosted | 170° | 0.72W/pc | 14LM/pc |
Note
LED module one run max length is 50pcs modules. Each 50pcs modules will need a power input.
