Product Details

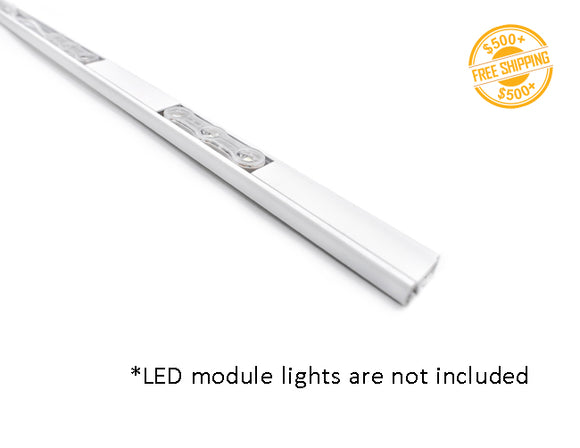

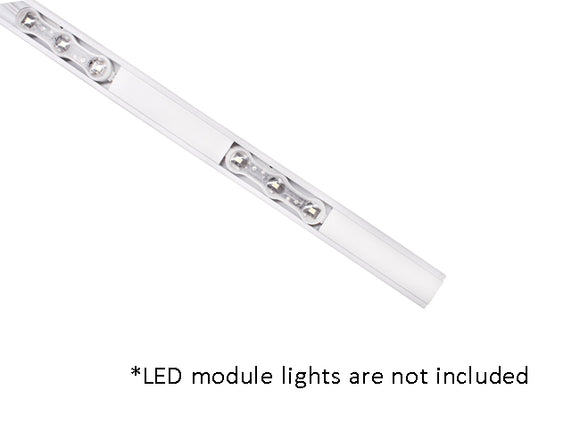

The LED Module Protection Holder is specially designed for linear LED module installation, providing a clean and professional lighting finish. The Bottom Holder (3.3' length) secures the LED modules firmly in place, while the Top Cover (3.3' length) neatly conceals the wires for a smooth, continuous lighting effect. Made from durable, heat-resistant materials, it ensures safety, easy maintenance, and long-lasting performance. Ideal for channel letters, light boxes, and architectural lighting projects requiring a neat linear LED appearance. Perfect for both indoor and outdoor applications.
Suitable for LED Module Lights

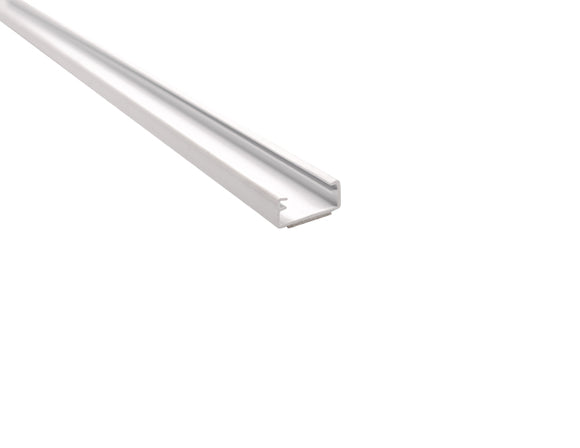

Holder (Bottom): 3.3' length

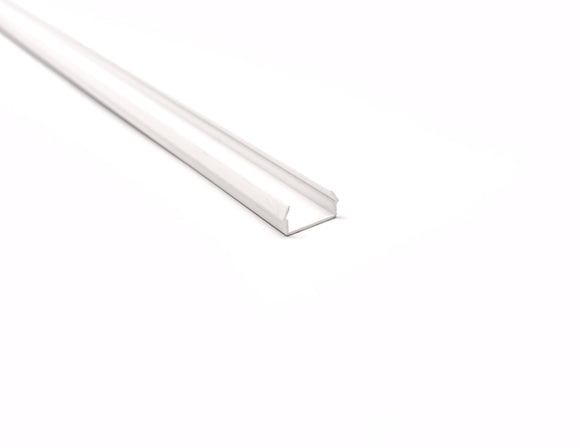

Cover (Top): 3.3' length
Installation Instructions
1. Install the Holder Bottom
- The bottom base comes with pre-applied double-sided adhesive tape.
- Peel off the protective film and firmly attach the bottom holder to the installation surface.
- Make sure the surface is flat, clean, and free of dust, oil, or moisture to ensure strong adhesion.
2. Install the Module
- The module also has double-sided adhesive tape on its underside.
- Remove the protective film and carefully stick the module inside the bottom holder.
- Ensure the module is properly aligned and securely attached.
3. Install the Holder Top
- Cut the top cover to the required length according to your installation needs and cable position.
- The top should cover the module and wires for a neat appearance.
- Press the top firmly into the bottom holder’s slot until it clicks into place and is securely fixed.
4. Completion
- Check that the bottom, module, and top are all securely attached.
- Ensure that the wires are completely covered and the overall appearance is clean and tidy.
Notes
- Clean the installation surface before applying to remove any dust, oil, or moisture.
- The adhesive tape is for one-time use — position carefully before sticking.
- It is recommended to install at room temperature (15–30°C) for the best adhesive performance.
- For rough or uneven surfaces, additional fixing methods (such as screws or clips) may be used to enhance stability.
