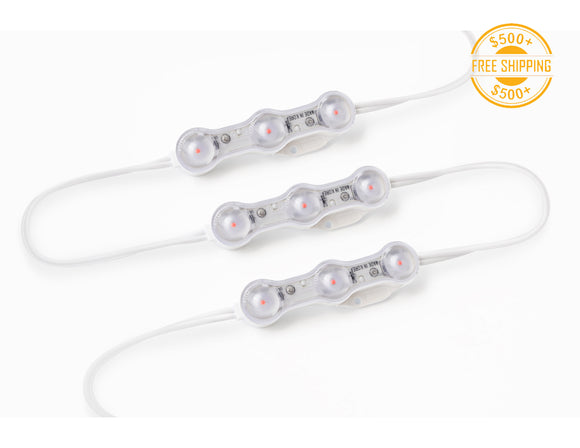

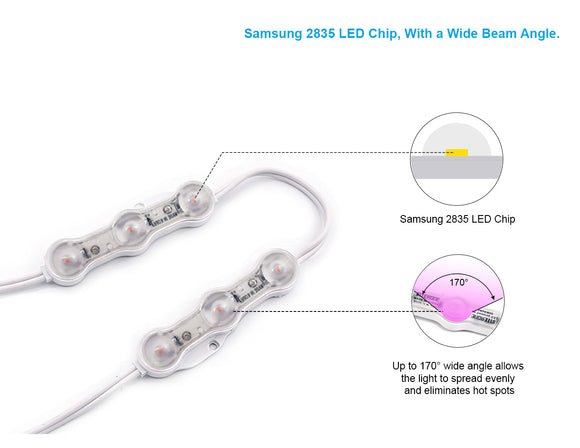

Samsung 2835 LED Chip, With a wide beam angle, Made in Korea. LED Module has excellent transmissivity and uniformity, which is applicable for lower channel letters.

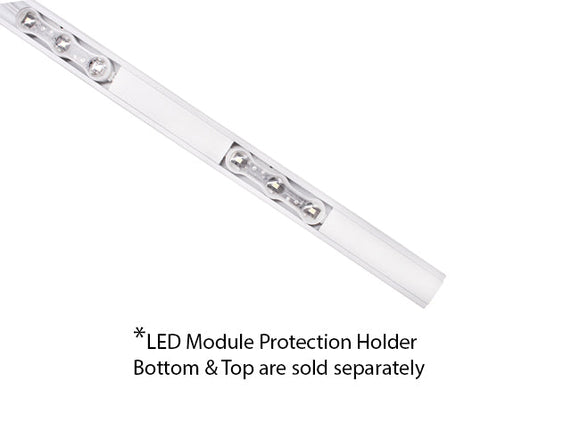

Installation Accessories: LED Module Holder Bottom and Top
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
- Model No: LED Module Light - Single Color (200pcs/bag)
- Length: 100ft/bag (25ft/string*4)
- Operation Voltage: 12VDC
- Samsung 2835 Chip
- Wattage per pc: 1.2W/pc (6500K, 9000K)
0.72W/pc (3000K, Red, Blue, Green, Yellow, Pink, Turquoise)
- LED per ft: 200pcs/bag
- Brightness/Lumen per ft: Details in the following table

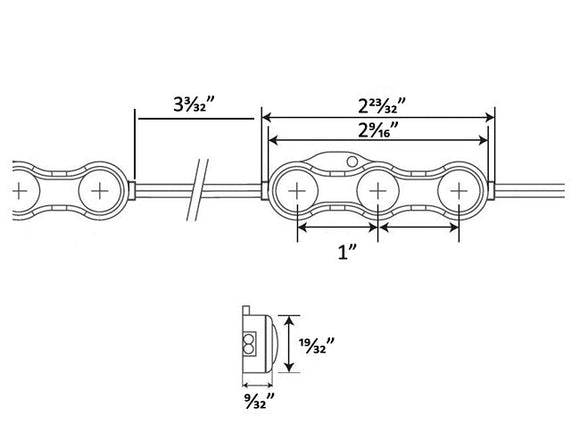

- Dimension: L 2.7", W 0.28", D 0.59"
- Dimming Method: Dimming 0-10V, MLV, ELV, Incandescent, and CFL/LED
- Work Environment/IP Rating: Waterproof design – IP68
- Long Lifetime: 50,000 hrs
- Color Rendering Index (CRI): >80
- Color: 3000K, 6500K, 9000K, Red, Blue, Green, Yellow, Pink, Turquoise
- Beam Angle: 140°, 170°
- Cuttable Increments: 1 Module/Cut
- One Run Max: 50 Modules
- Certification: UL
- Warranty: Limited 5 years warranty
- Applicable for channel letter
- 3M tape on the back
- Made in Korea
| Model |
Color |
Lens |
Viewing Angle |
Power (W/pc) |
Brightness (LM/pc) |
| Z3V-05-O3-a7-072-S2 |
3000K |
Frosted |
170° |
0.72W/pc |
62LM/pc |
| Z3V-05-W6-a7-120-S2 |
6500K |
Frosted |
170° |
1.2W/pc |
131LM/pc |
| Z3V-05-W9-a4-120-S2 |
9000K |
Clear |
140° |
1.2W/pc |
125LM/pc |
| Z3V-05-W9-a7-120-S2 |
9000K |
Frosted |
170° |
1.2W/pc |
130LM/pc |
| Z3V-05-R-a7-072-K2 |
Red |
Frosted
|
170° |
0.72W/pc |
16LM/pc |
| Z3V-05-B-a7-072-K2 |
Blue |
Frosted |
170° |
0.72W/pc |
10LM/pc |
| Z3V-05-G-a7-072-K2 |
Green |
Frosted |
170° |
0.72W/pc |
48LM/pc |
| Z3V-05-Y-a7-072-K2 |
Yellow |
Frosted |
170° |
0.72W/pc |
17LM/pc |
| Z3V-05-P-a7-072-K2 |
Pink |
Frosted |
170° |
0.72W/pc |
8LM/pc |
| Z3V-05-T-a7-072-K2 |
Turquoise |
Frosted |
170° |
0.72W/pc |
14LM/pc |
Product Specifications Download
Note
LED module one run max length is 50pcs modules. Each 50pcs modules will need a power input.
