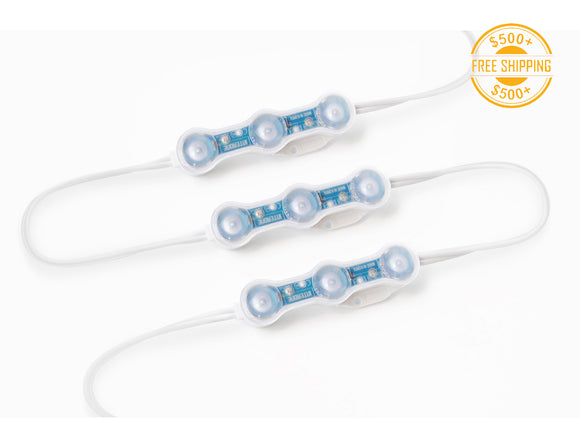

LED Module Light - Single Color - Blue (200pcs/bag)

SKU: Z3V-05-B-a4-072-K2

Login to view price

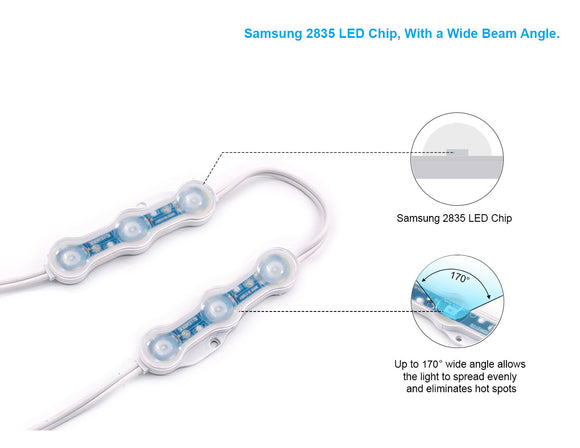

Samsung 2835 LED Chip, With a wide beam angle, Made in Korea. LED Module has excellent transmissivity and uniformity, which is applicable for lower channel letters.

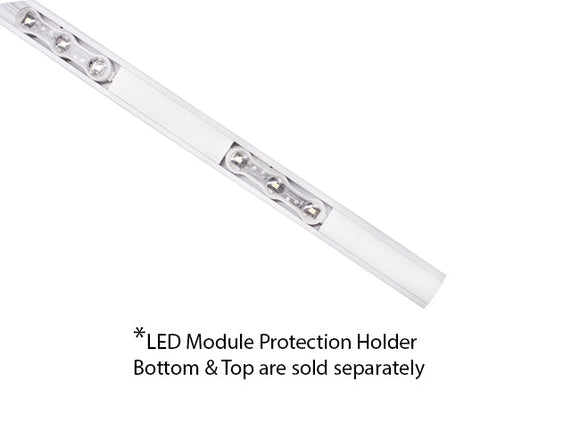

Installation Accessories:
LED Module Holder Bottom and Top

LED Low Voltage Light System

  • Model No: LED Module Light - Single Color (200pcs/bag)
  • Length: 100ft/bag (25ft/string*4)
  • Operation Voltage: 12VDC
  • Samsung 2835 Chip
  • Wattage per ft: 1.2W/pc (6500K, 9000K)
                             0.72/W (3000K, Red, Blue, Green, Yellow, Pink, Turquoise)
  • LED per ft: 200pcs/bag
  • Brightness/Lumen per ft: Details in the following table

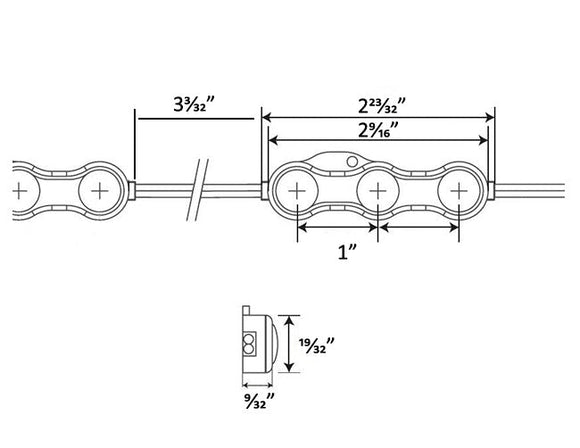

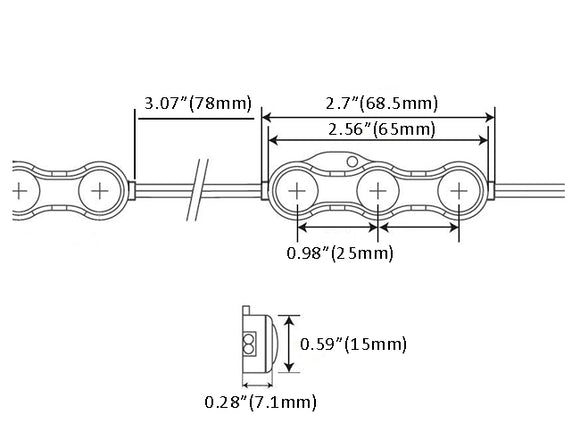

  • Dimension: L 2.7", W 0.28", D 0.59"
  • Dimming Method: Dimming 0-10V, MLV, ELV, Incandescent, and CFL/LED
  • Work Environment/IP Rating: Waterproof design – IP68
  • Long Lifetime: 50,000 hrs
  • Color Rendering Index (CRI): >80
  • Color: 3000K, 6500K, 9000K, Red, Blue, Green, Yellow, Pink, Turquoise
  • Beam Angle: 140°, 170°
  • Cuttable Increments: 1 Module/Cut
  • One Run Max: 50 Modules
  • Certification: UL
  • Warranty: Limited 5 years warranty

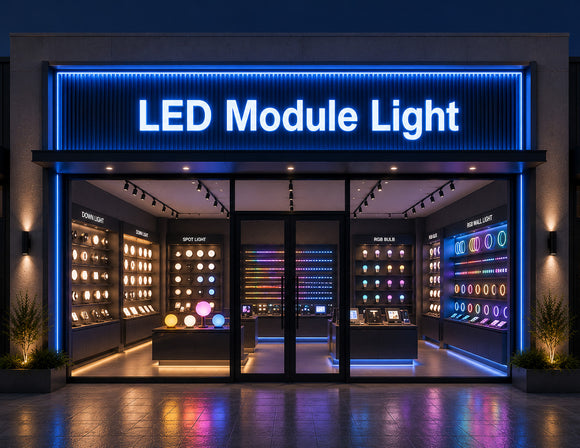

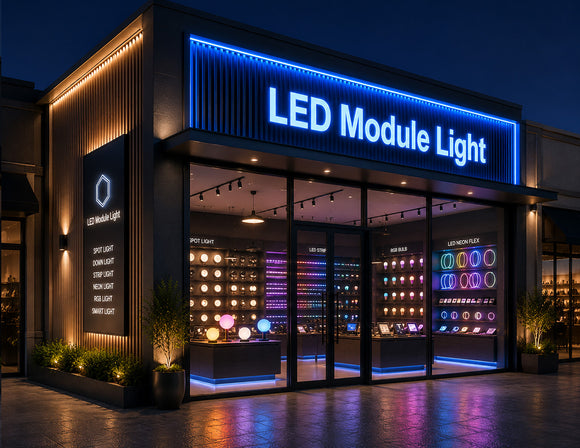

  • Applicable for channel letter
  • 3M tape on the back
  • Made in Korea
Model Color Lens Viewing Angle Power (W/pc) Brightness (LM/pc)
Z3V-05-O3-a7-072-S2 3000K Clear 140° 0.72W/pc 62LM/pc
Z3V-05-W6-a7-120-S2 6500K Frosted 170° 1.2W/pc 131LM/pc
Z3V-05-W9-a4-120-S2 9000K Clear 140° 1.2W/pc 125LM/pc
Z3V-05-W9-a7-120-S2 9000K Frosted 170° 1.2W/pc 130LM/pc
Z3V-05-R-a7-072-K2 Red Frosted
170° 0.72W/pc 16LM/pc
Z3V-05-B-a4-072-K2 Blue Frosted
170° 0.72W/pc 10LM/pc
Z3V-05-G-a7-072-K2 Green Frosted 170° 0.72W/pc 48LM/pc
Z3V-05-Y-a4-072-K2 Yellow Clear 140° 0.72W/pc 17LM/pc
Z3V-05-P-a7-072-K2 Pink Clear 170° 0.72W/pc 8LM/pc
Z3V-05-T-a7-072-K2 Turquoise Clear 170° 0.72W/pc 14LM/pc

Product Specifications Download

Note
LED module one run max length is 50pcs modules. Each 50pcs modules will need a power input.
