With a 150° beam angle, Made in Korea. LED Module has excellent transmissivity and uniformity, which is applicable for lower channel letters.
LED Low Voltage Light System
- Model No: LED Module Light - MINI3 (300pcs/bag)
- Length: 75ft/bag (12.5ft/string*6)
- Operation Voltage: 12VDC
- Wattage per pc: 0.48W/pc
- LED per ft: 300pcs/bag
- Brightness/Lumen per ft: Details in the following table

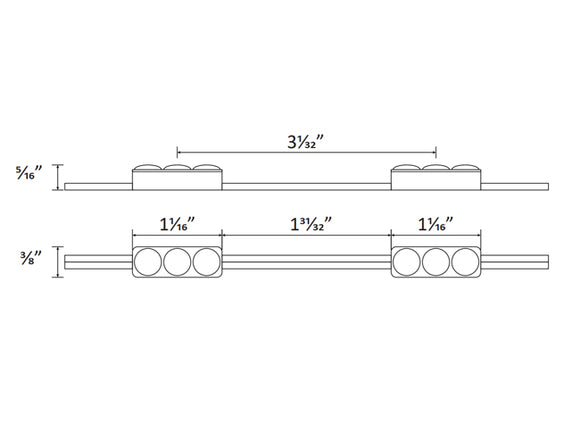

- Dimension: L 1 1/16", W 3/8", D 5/16"
- Dimming Method: Dimming 0-10V, MLV, ELV, Incandescent, and CFL/LED
- Work Environment/IP Rating: Waterproof design – IP68
- Long Lifetime: 50,000 hrs
- Color Rendering Index (CRI): >80
- Color: Blue
- Beam Angle: 150°
- Cuttable Increments: 1 Module/Cut
- One Run Max: 50 Modules
- Certification: UL
- Warranty: Limited 5 years warranty
- Applicable for channel letter

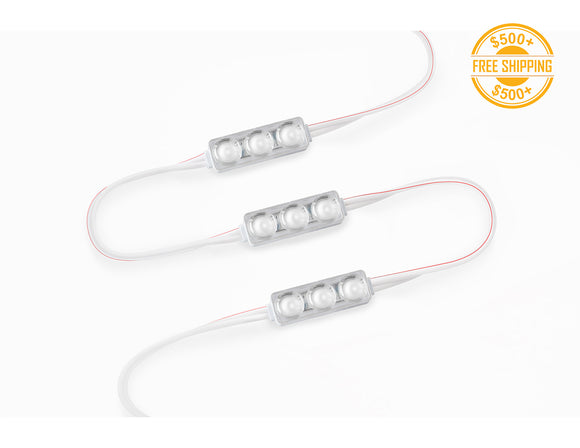

- 3M tape on the back
- Made in Korea
| Model |
Color |
Lens |
Viewing Angle |
Power (W/pc) |
Brightness (LM/pc) |
| MINI3-10YG48 |
9000K |
Frosted |
150° |
0.48W/pc |
45.12LM/pc |
| MINI3-RESM36 |
Red |
Frosted |
150° |
0.36W/pc |
12.6LM/pc |
| MINI3-BLSM48 |
Blue |
Frosted |
150° |
0.48W/pc |
10.08LM/pc |
| MINI3-GRSM48 |
Green |
Frosted |
150° |
0.48W/pc |
41.76LM/pc |
| MINI3-YLYG48 |
Yellow |
Frosted |
150° |
0.48W/pc |
38.4LM/pc |
Product Specifications Download
Note
LED module one run max length is 50pcs modules. Each 50pcs modules will need a power input.
