Product Details

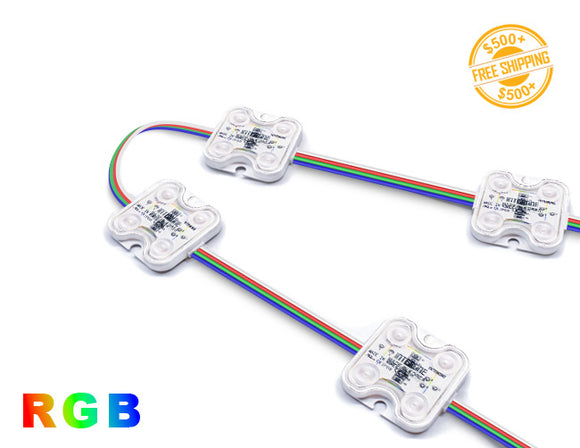

With a 150° beam angle, Made in Korea. LED Module has excellent transmissivity and uniformity, which is applicable for lower channel letters.

Specifications

Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	12VDC	Operating Ambient Temperature	-22°F~158°F
One Run Max	50 mods	IP Rating × LED Strip Light IP Rating Guide IP Rating = IP + Dustproof digit(0-6) + Waterproof digit(0-9) Examples(IP20 vs IP65 vs IP67 vs IP68): IP20-Not waterproof-Dry indoor areas IP65-Water resistant-Kitchen, bathroom, damp place(Complete dust-tightness and against low-pressure water jets) IP67-Temporary submersion-Outdoor(short-term water exposure) IP68-Continuous underwater-Pools, underwater lighting Pro Tip: Ensure waterproof connectors and buy from reputable brands to avoid fake ratings!	IP68 (Waterproof)
Length	2 modules/ft	Lens	Clear
Dimmable × Are LED strip lights dimmable? Yes, LED strip lights are dimmable. LEDs are naturally dimmable light sources. With a compatible power supply and dimmer, both single-color and color-changing strips can achieve smooth brightness control. GL LED offers a wide range of dimmable options, supporting PWM, Triac (forward phase), 0-10V, and ELV (reverse phase) dimming methods.Dimmable LED strips help save energy, extend lifespan, and create customizable lighting effects. GL LED helps customers select the right dimming system to ensure stable performance and meet specific lighting goals.	0-10V, MLV, ELV, Incandescent, and CFL/LED	Color Temperature	11000K
Brightness	117 lm/pc	Chip	Samsung
Viewing Angle	140°	Power Consumption × What Is Low Voltage LED Strip Light Power Consumption (W/ft)? Power use is measured in watts per foot (W/ft) and depends on brightness, LED density, and color setup. To calculate total power: Watts = W/ft × total length (ft) When choosing a power supply, always add a safety margin: • Indoor: ×125% • Outdoor: ×150–200% This ensures stable, efficient performance and protects the driver from overload.	1.44 W/module

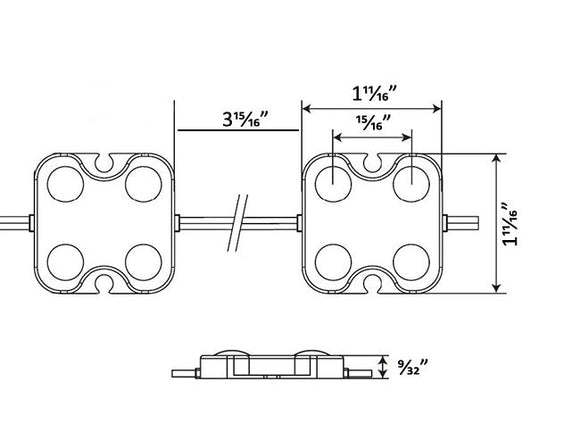

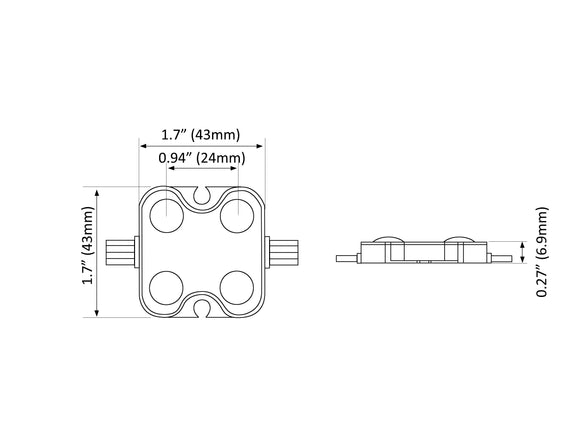

Lead Wire × What wire gauge (AWG) is used for low voltage LED strips? Wire gauge affects current capacity—lower numbers mean thicker wires. Choosing the right AWG prevents voltage drop, overheating, and fire risk, especially in long runs. At GL LED, most 12V/24V strips use 20 AWG, ideal for up to 10 ft and 5–11A loads. For longer runs or higher loads, 18 or 16 AWG is recommended to ensure brightness and safety. Read More >>>	20AWG, 2 wires	Dimensions	1.69” x 1.69” x 0.27”



Documents

Product Specifications Download

Power Supply Calculator – Designed just for You

Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.

Power Calculator

LED Light Length (ft):

LED Light Power Consumption (W/ft): Choose LED power consumption 1W/ft 1.5W/ft 2W/ft 2.5W/ft 3W/ft 3.5W/ft 4W/ft 4.5W/ft 5W/ft 5.5W/ft 6W/ft 6.5W/ft 7W/ft

Installation Environment: Choose using environment Indoor (125%) Regular-Outdoor (150%) Harsh-Outdoor (200%)

Calculate

The power supply you need is

Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.

Go To Dimmable Power Supply Page >>>

Go To Non-dimmable Power Supply Page >>>



Installation Accessories

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
