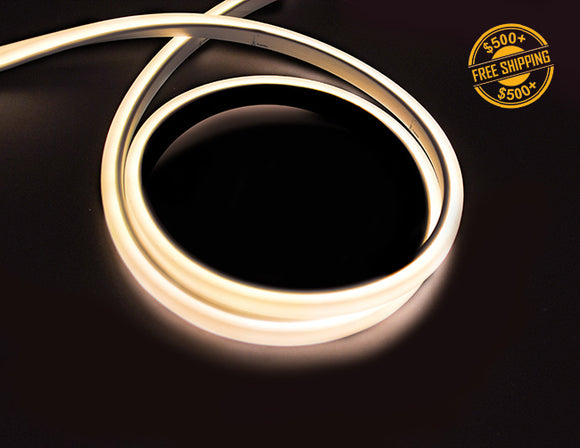

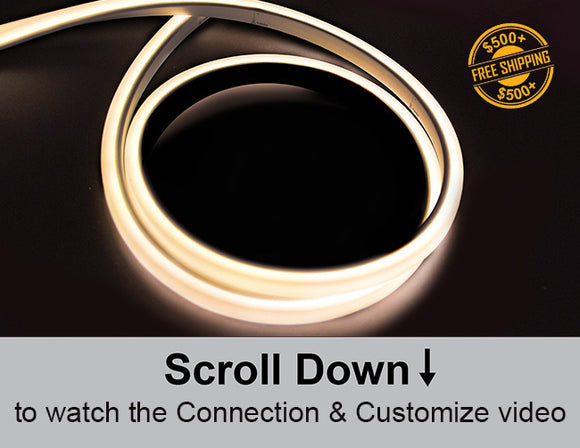

LED 3D Neon Light - Single Color - Wet Location - 3000K - 24V

SKU: GL-3DN-2216-240-3000K-24V-IP65 (16.4ft)

Login to view price

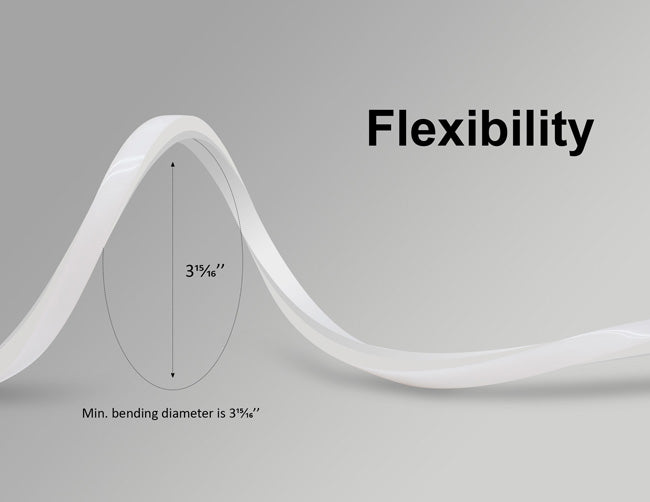

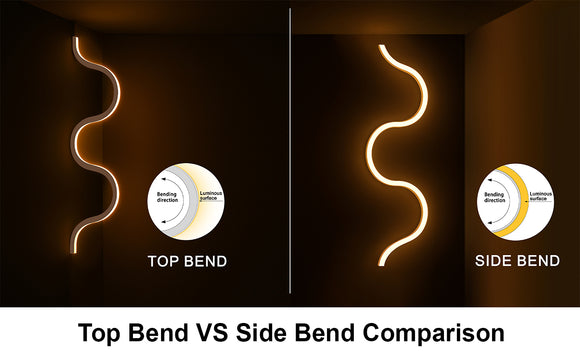

This LED 3D Neon Light is durable and flexible with a 120mm minimum bending diameter. It has three-dimensional emitting output providing uniform and even light without any hotspots. It is good for damp location. Using 24VDC power input, the power connection and installation of this 3D neon light is as same as regular LED strip light.

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Customized Service is available, click here to get more information.

LED Low Voltage Light System


Transformer Recommendation for 3D Neon Light 3000K (4.4W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-1 0-6 0-6 0-10 0-10 0-17
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-18 0-27 0-36 0-58 0-109 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-4 0-27 0-36 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-5 0-10 0-17 0-27 0-36 0-54
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use: (use 50% capacity)
Length of Strip Light(ft) 0-6 0-11 0-17 0-22 0-36 0-68
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-17 0-22 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-3 0-6 0-10 0-17 0-22 0-34
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

More LED Neon Lights:
Model
3000K
LED Color
3000K
6500K
Blue
Red
RGB
Brightness
414 lm/ft
427 lm/ft
103.4 lm/ft
54.72 lm/ft
183.38 lm/ft
Power Consumption
4.4 W/ft
4.4 W/ft
4.4 W/ft
4.4 W/ft
4.4 W/ft
CRI
90+
90+
/
/
/
IP Rating
Wet Location
Wet Location
Wet Location
Wet Location
Wet Location
Length
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
Input
24V DC
24V DC
24V DC
24V DC
24V DC
Max Run
16.4ft
16.4ft
16.4ft
16.4ft
16.4ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply

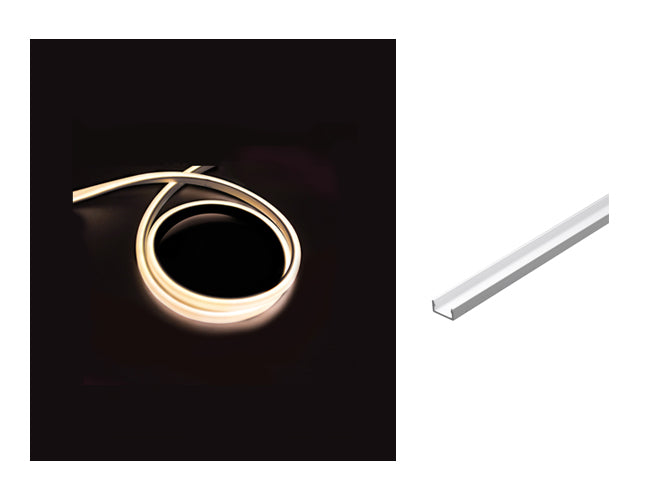

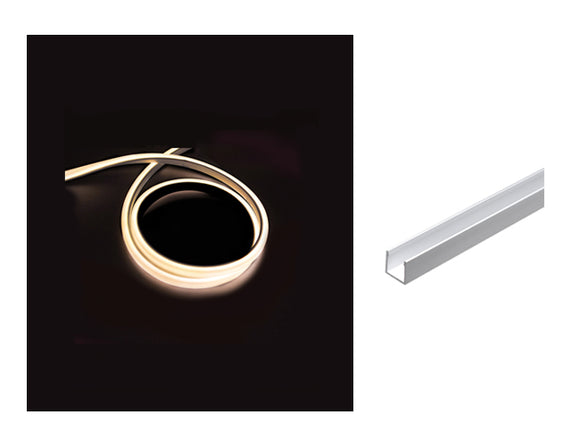

LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: LED 3D Neon Quick Connection

Instruction Video: How to Customize LED 3D Neon

  • Model No: Single Color - Wet Location - 3000K - 24V, SKU: GL-3DN-2216-240-3000K-24V-IP65
  • Operation Voltage: 24VDC
  • Wattage per ft: 4.4W/ft
  • LED per ft: 72 LEDs/ft
  • Brightness/Lumen per ft: 414LM/ft

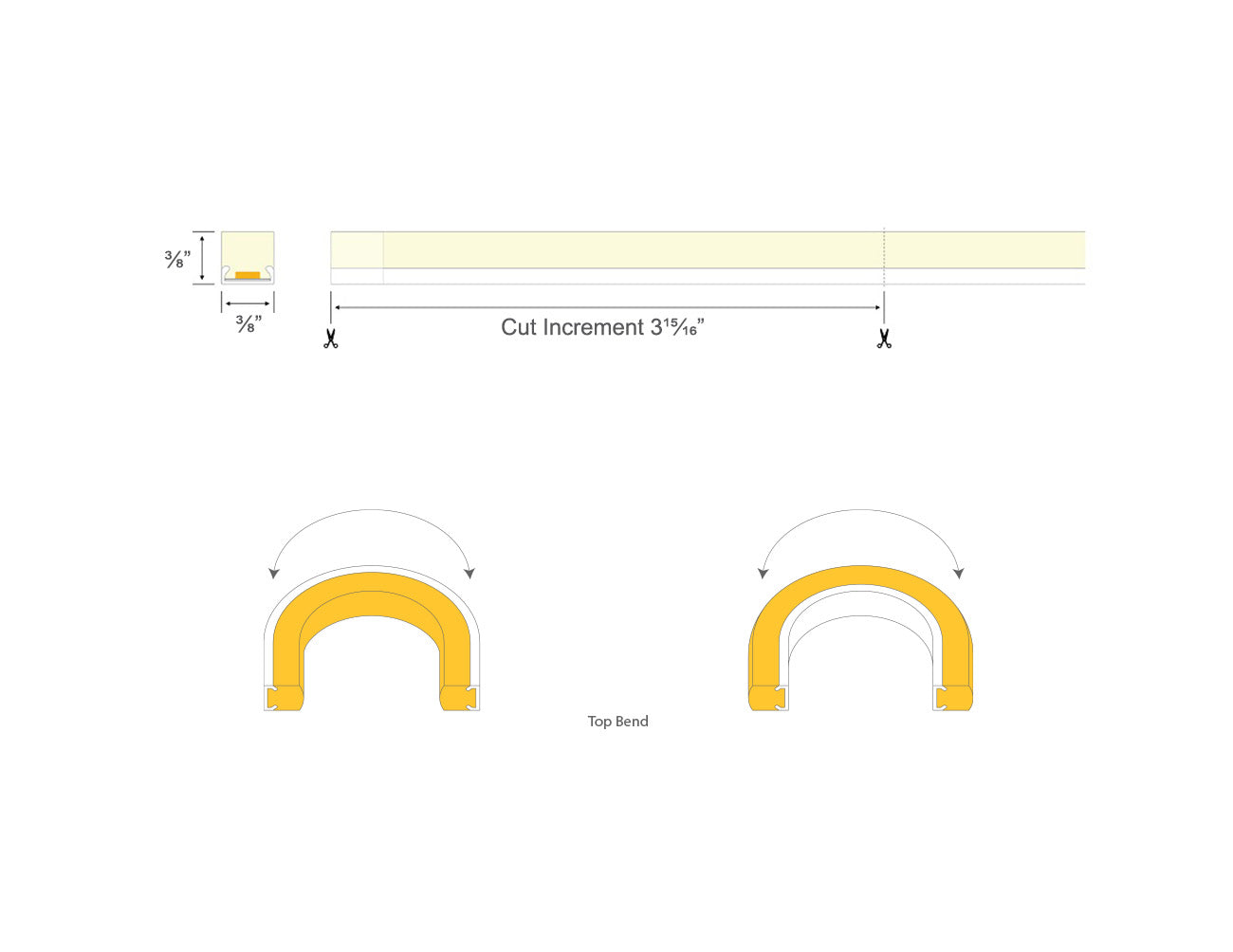

  • Dimension: L 16.4', W 0.375", D 0.375"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP65 (Wet location)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >90
  • Color Temperature options (CCT): 3000K
  • Beam Angle: 120°
  • Cuttable Increments: 3 15/16"
  • One Run Max: 16.4'
  • Certification: UL
  • Warranty: Limited 5 years warranty

LED 3D Neon Light Specification
LED 3D Neon Light Single Color Installation Manual
