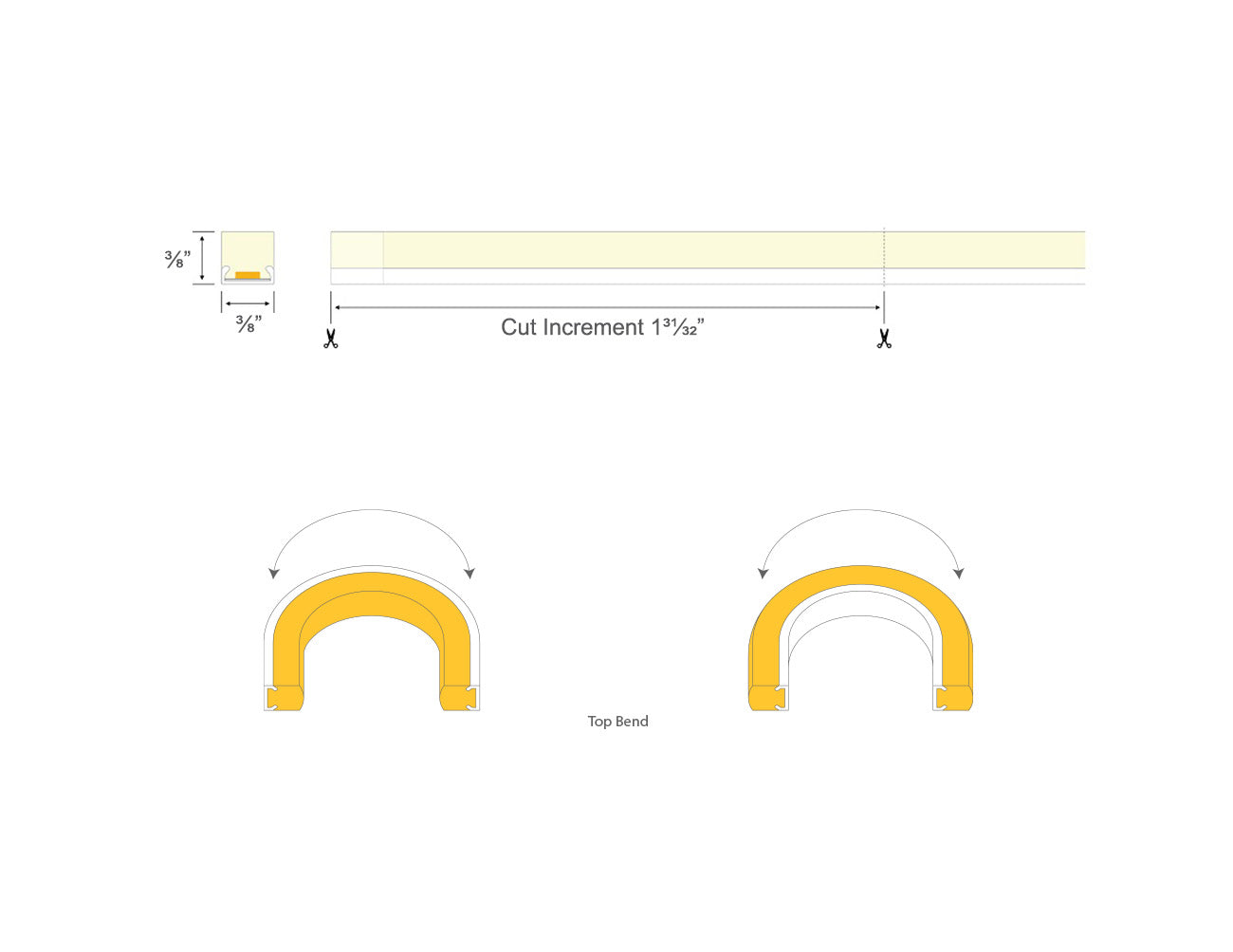

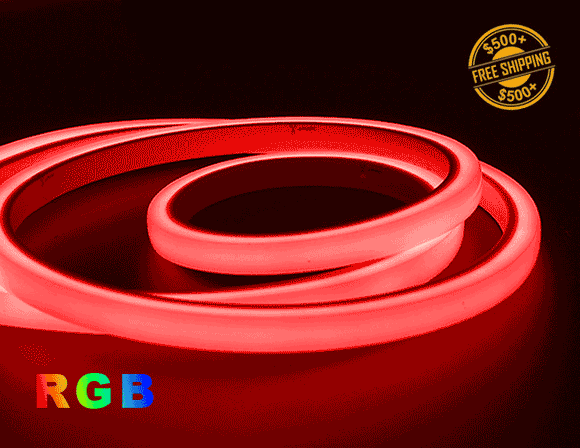

This LED 3D Neon Light is durable and flexible with 120mm minimum bending diameter. It has three-dimensional emitting output providing uniform and even light without any hotspots. It is good for damp location. Using 24VDC power input, the power connection and installation of this 3D neon light is as same as regular LED strip light.
Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.
Customized Service is available, click here to get more information.
- Color Changing RGB Hardwired Control Configuration
- Color Changing RGB Wireless Control Configuration
Transformer Recommendation for 3D Neon Light RGB
For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) | 0-1 | 0-6 | 0-6 | 0-10 | 0-10 | 0-17 |
Transformer | APV-8W-24V | APV-35W-24V | YHY-36W-24V | YHY-60W-24V | LPV-60W-24V | TPZ-96W-24V |
Length of Strip Light(ft) | 0-18 | 0-27 | 0-36 | 0-58 | 0-109 | ** |
Transformer | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V | ** |
Length of Strip Light(ft) | 0-9 | 0-36 | ** | ** | ** | ** |
Dimmable Transformer | P-50W-24V | P-200W-24V | ** | ** | ** | ** |
Length of Strip Light(ft) | 0-10 | 0-17 | 0-27 | 0-36 | 0-54 | ** |
Dimmable Transformer | G-60W-24V | G-96W-24V | G-150W-24V | G-200W-24V | G-300W-24V | ** |
More LED Neon Lights:
Model
|
RGB>
|
||||
LED Color
|
3000K
|
6500K
|
Blue
|
Red
|
RGB
|
Brightness
|
414 lm/ft
|
427 lm/ft
|
103.4 lm/ft
|
54.72 lm/ft
|
183.38 lm/ft
|
Power Consumption
|
4.4 W/ft
|
4.4 W/ft
|
4.4 W/ft
|
4.4 W/ft
|
4.4 W/ft
|
CRI
|
90+
|
90+
|
/
|
/
|
/
|
IP Rating
|
Wet Location
|
Wet Location
|
Wet Location
|
Wet Location
|
Wet Location
|
Length
|
16.4ft/32.8ft
|
16.4ft/32.8ft
|
16.4ft/32.8ft
|
16.4ft/32.8ft
|
16.4ft/32.8ft
|
Input
|
24V DC
|
24V DC
|
24V DC
|
24V DC
|
24V DC
|
Max Run
|
16.4ft
|
16.4ft
|
16.4ft
|
16.4ft
|
16.4ft
|
