Door Sensor Switch

SKU: DS01-W

$19.31

Description Specification Accessories

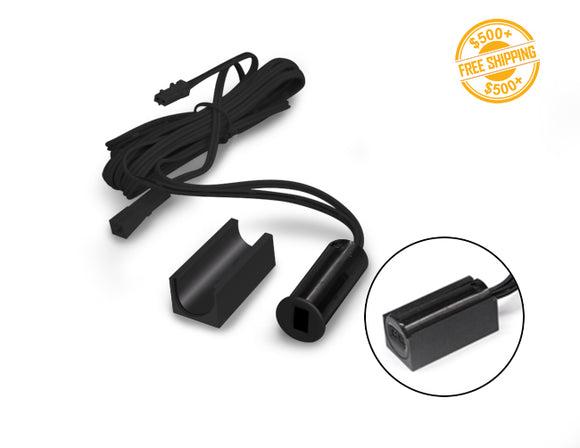

Door Sensor Switch

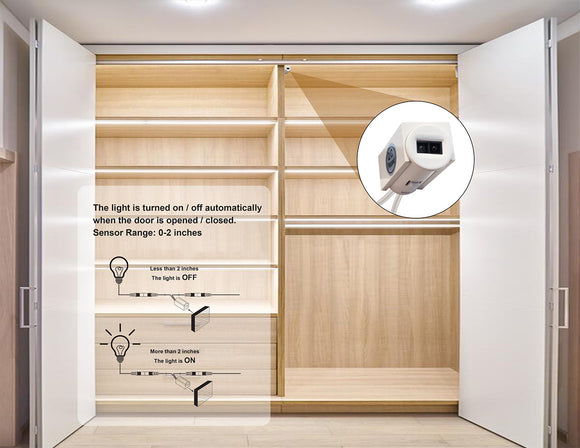

• The Door Sensor Switch is used in an environment where the light is needed to be turned on/off automatically when the door is opened/closed. It is widely used in wardrobes, closets, cabinets, or any other furniture with doors.
• This product only can be used for low-voltage LED light circuits.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: DS01-W
  • Operation Voltage: 12V or 24V
  • Maximum load/Amp: Max 1A, 12V-12W, 24V-24W

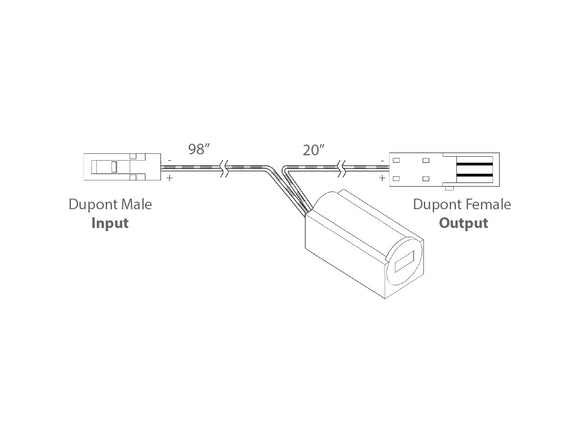

  • Dimension: L 1.4", W 0.5", D 0.6"
  • Control method: Infrared photoelectric
  • Work Environment/IP Rating: Dry location, IP20

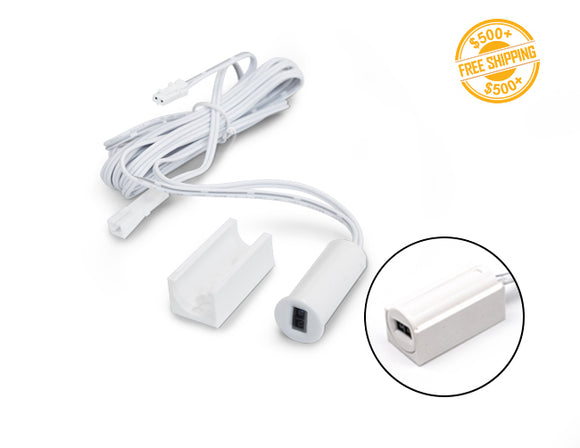

  • Finish options: Black/White

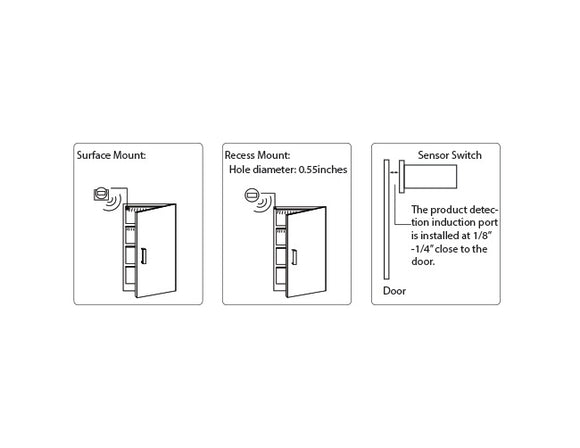

  • Installation options: Surface Mounted， Recessed Mounted
  • Certification: CE
  • Warranty: 2 Years

Door Sensor Switch Specification

LED Strip Light

Accessories are available and sold separately

DC Female to Dupont Female Adapter

DC Male to Dupont Male Adapter

Dupont DC Splitter 1 to 6

Dupont Extension Wire

Dupont Male Wire
