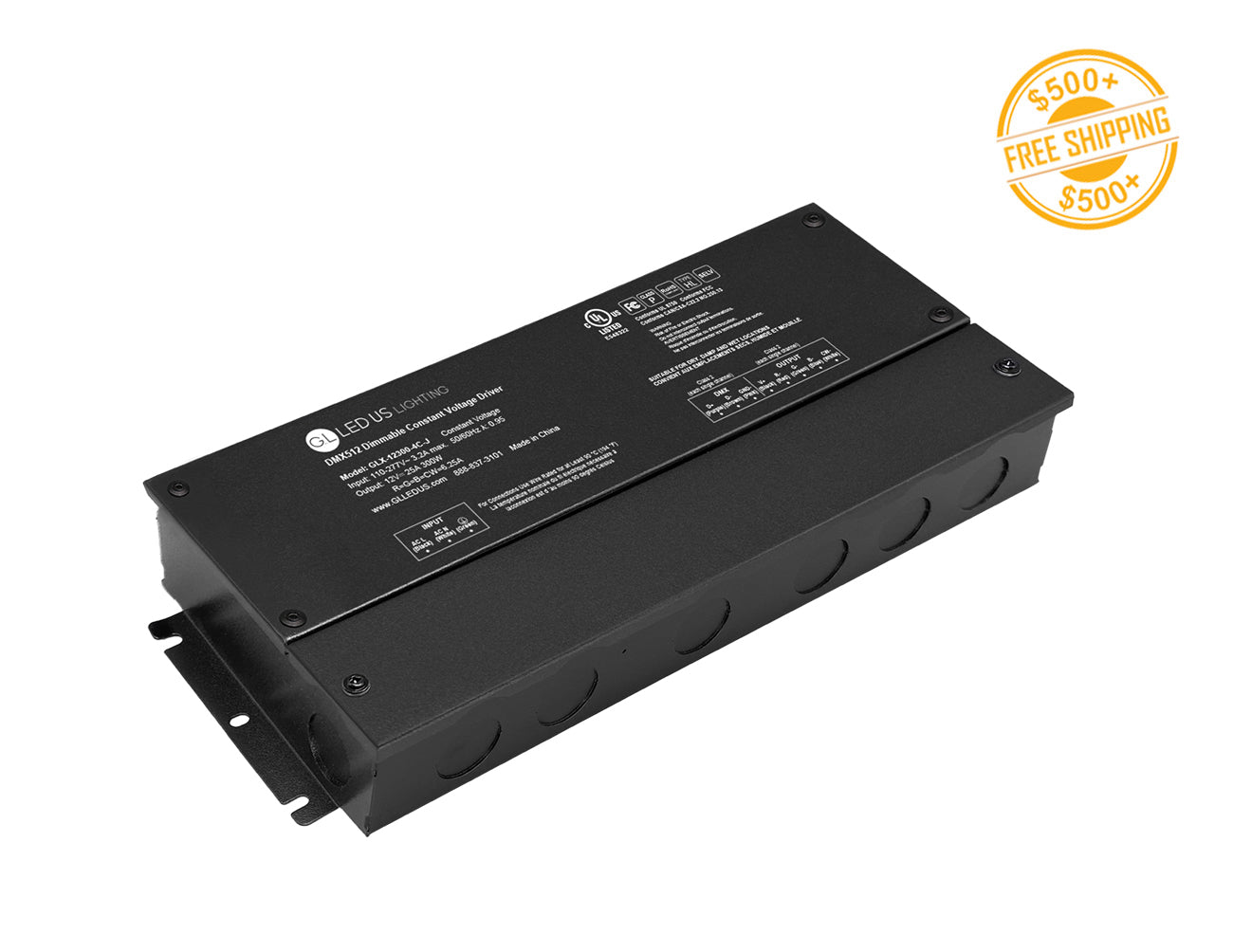

DMX LED Dimmable Driver GLX-12300-4C-J

SKU: GLX-12300-4C-J

Free

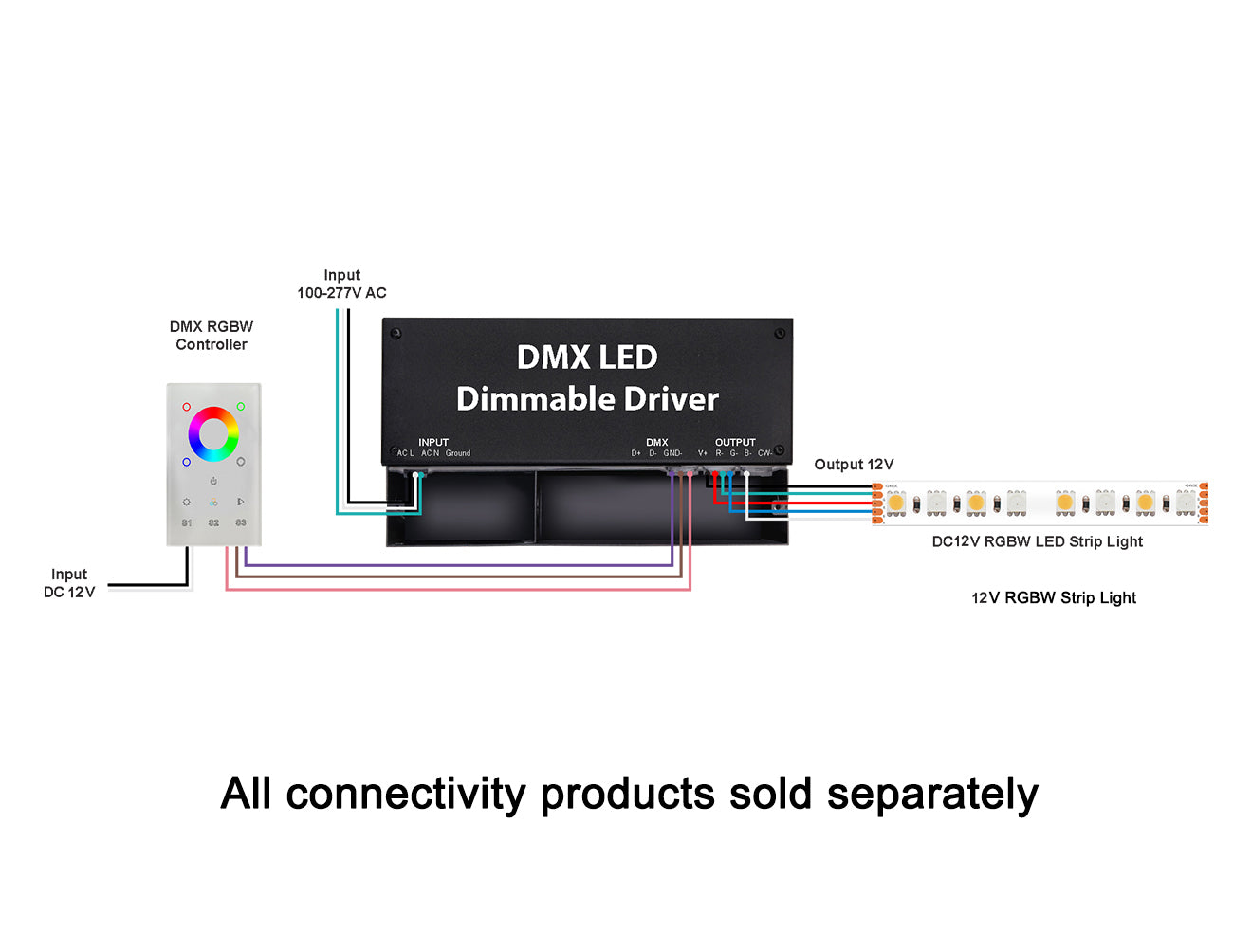

DMX LED dimmable driver is a driver with integrated DMX controller for integrating color changing RGB/RGBW LED strip lights into a DMX systems with minimal components. The advanced design of DMX LED dimmable driver helps an easy wiring process and brings cost-saving opportunities on labors, making it ideal for both commercial and residential applications. The DMX LED dimmable driver can also be controlled using Pro NFC app from your phone.

Key Features:

Universal AC input: 100-277VAC
Dimming range: 0-100%
DMX 512 Signal Control, 4 CH independent outputs: RGBW.
Flicker-free, 4K Hz PWM
Compact housing IP66 waterproof design
With Pro NFC app address setting function
Output constant Voltage with slightly adjustable, to solve the problem of line loss.
UL Listed, class 2, class P, 5 Year Warranty.

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

Decide Your Control Type First

Pick the control or dimming method that fits your lighting application:

    • Triac Dimmer – Standard wall switch dimmer (common in homes)
    • 0-10V Dimmer – Commercial dimming systems
    • ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
    • RGB/RGBW Controller – For color-changing LED strips
    • No Dimming – Basic on/off control

Choose the Right Power Supply to Match

Select a power supply compatible with your control type:

    • Triac Dimmer → Triac Dimmable Power Supply
    • 0-10V Dimmer → 0-10V Dimmable Power Supply
    • ELV Dimmer → ELV Dimmable Power Supply
    • RGB/RGBW Controller → Standard Non-Dimmable Power Supply
    • No Dimming → Standard Non-Dimmable Power Supply

Match the Output Voltage

Make sure your power supply output matches your LED strip voltage:

    • 12V LED strips → Use a 12V power supply
    • 24V LED strips → Use a 24V power supply

Size the Wattage Properly

Choose a power supply rated for more wattage than your LEDs consume:

    • Indoor Installations → Total LED wattage × 1.25 (125%)
    • Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)

This provides:

    • Overload protection
    • Cooler operation
    • Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: GLX-12300-4C-J
  • Input Voltage: 100-277VAC
  • Output Voltage: 12VDC, Constant Voltage
  • Wattage: 100W
  • Rated Current: 4x2.08A
  • Power Factor: Up to 0.98
  • Class: Class P

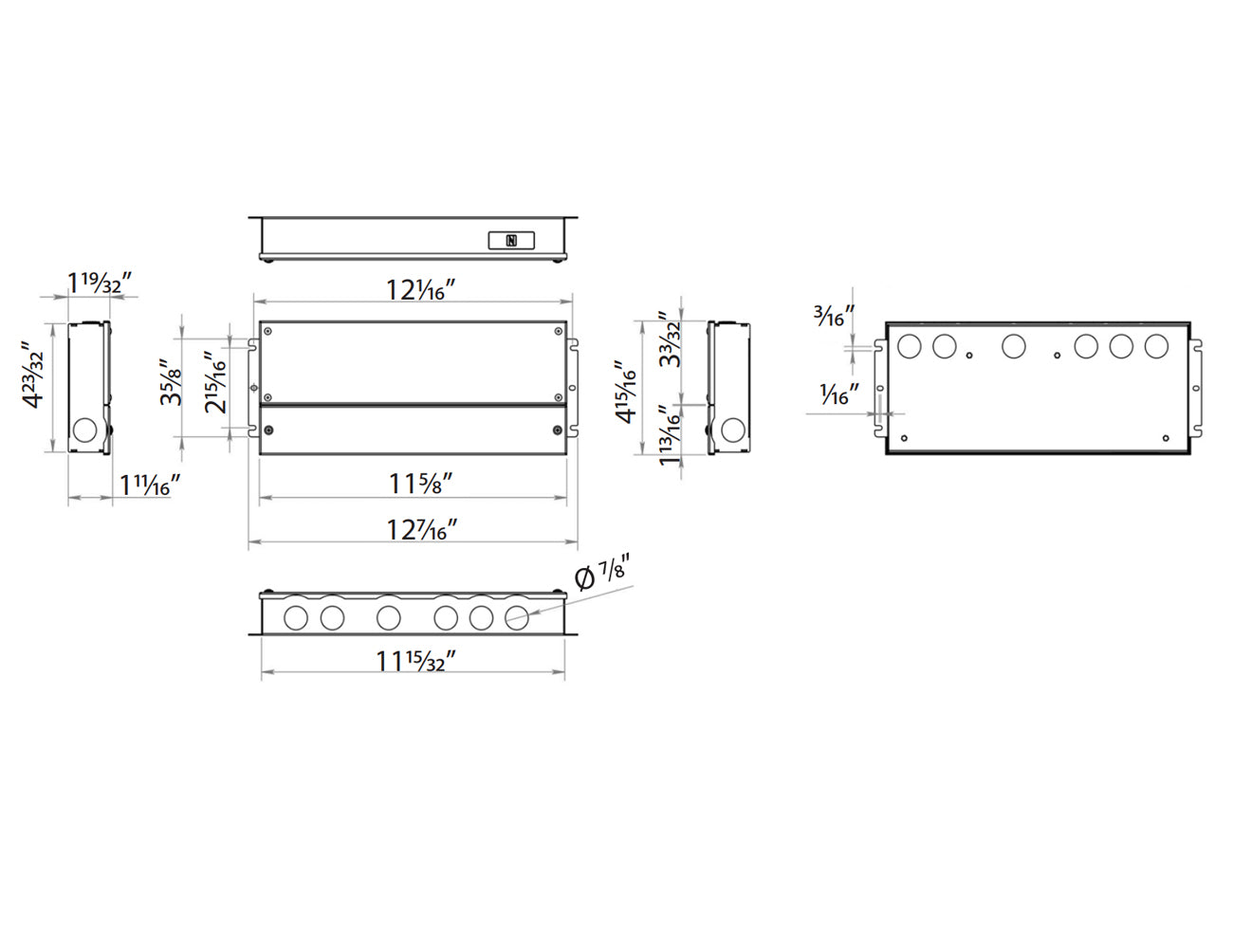

  • Dimension: L 9 16/32", W 4 30/32", H 1 5/8"
  • Dimming Method: DMX 512 Signal Control, 4 CH independent outputs: RGBW.
  • Work Environment: Dry, damp and wet location
  • Installation Options: Surface Mounted
  • Working Temperature: -40~+140℉"
  • Certification: UL listed, Class P, Type HL
  • Warranty: 5 Years
  • Protection Method: Short circuit/Over loading/Over current/ Over temperature

DMX LED Dimmable Driver GLX-12300-4C-J Specification

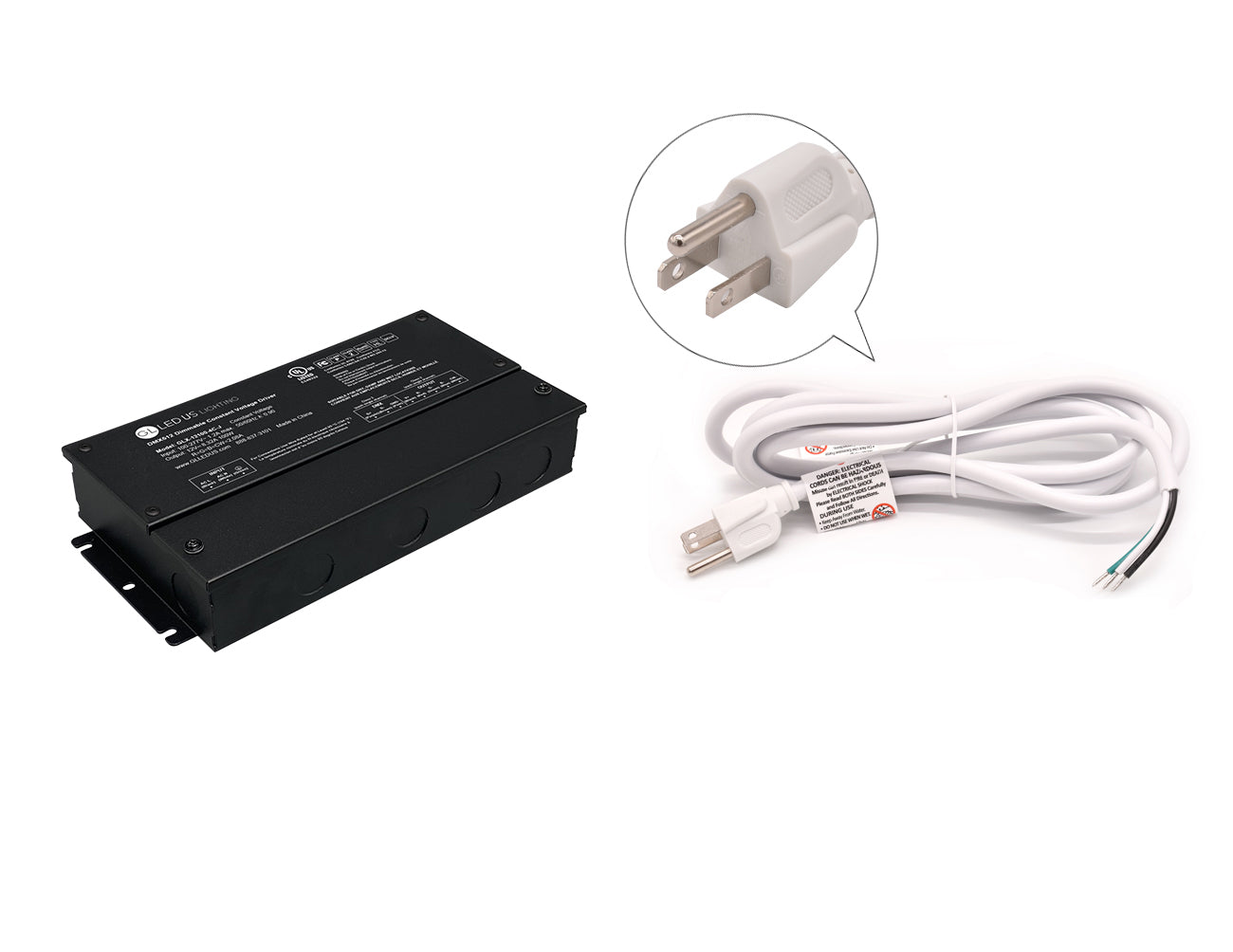

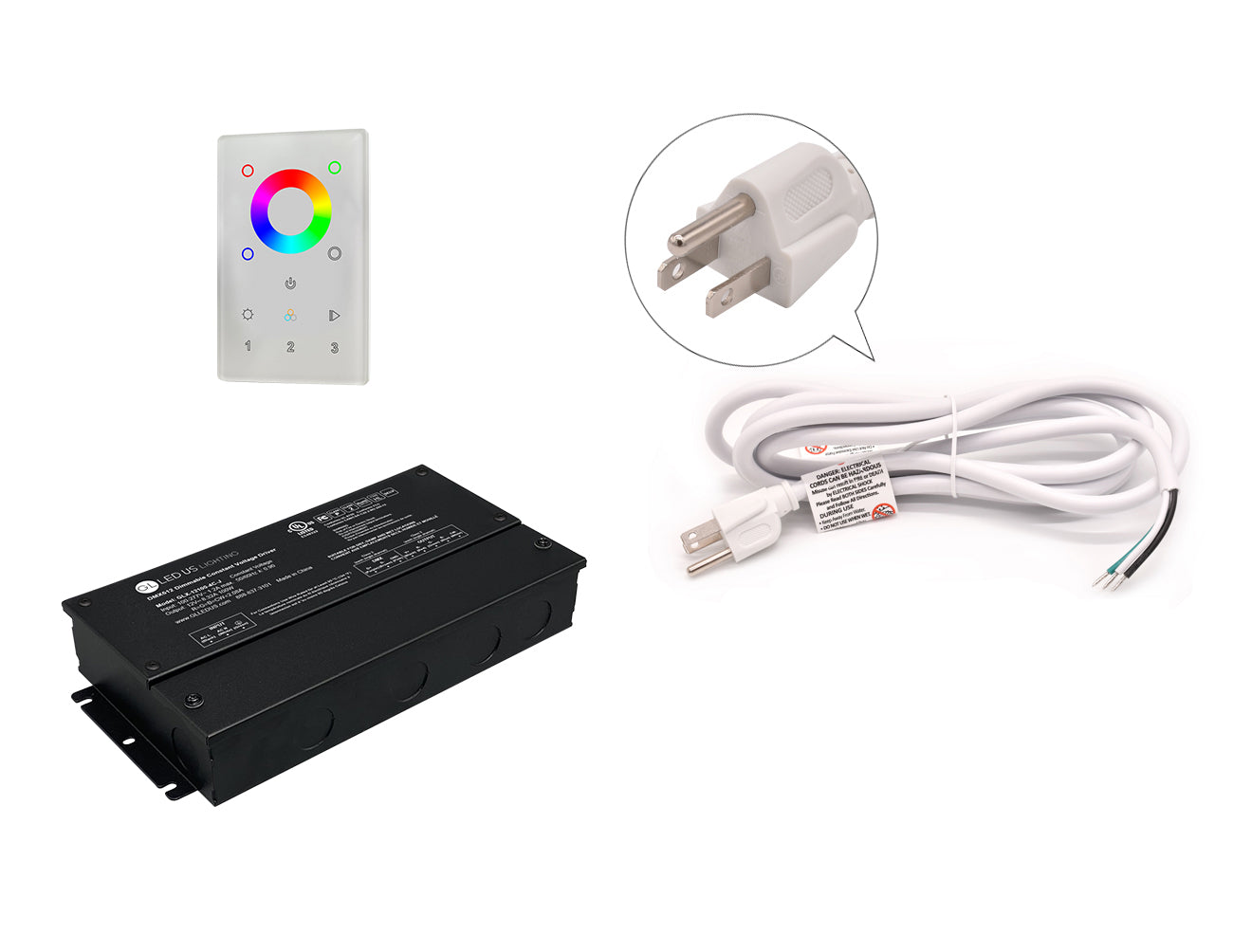

Separate accessories are available

Power Cable
