DMX RGBW Wall Mount Controller 3 Zones

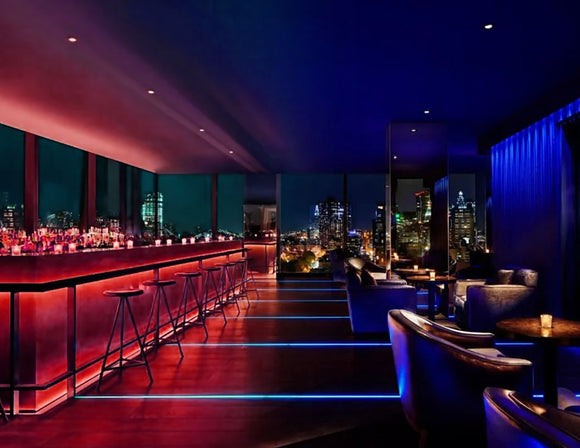

A lively bar counter featuring RGBW lighting effects, controlled remotely to change the color and ambiance of the space. The lighting under and behind the shelves adds a colorful, energetic vibe.

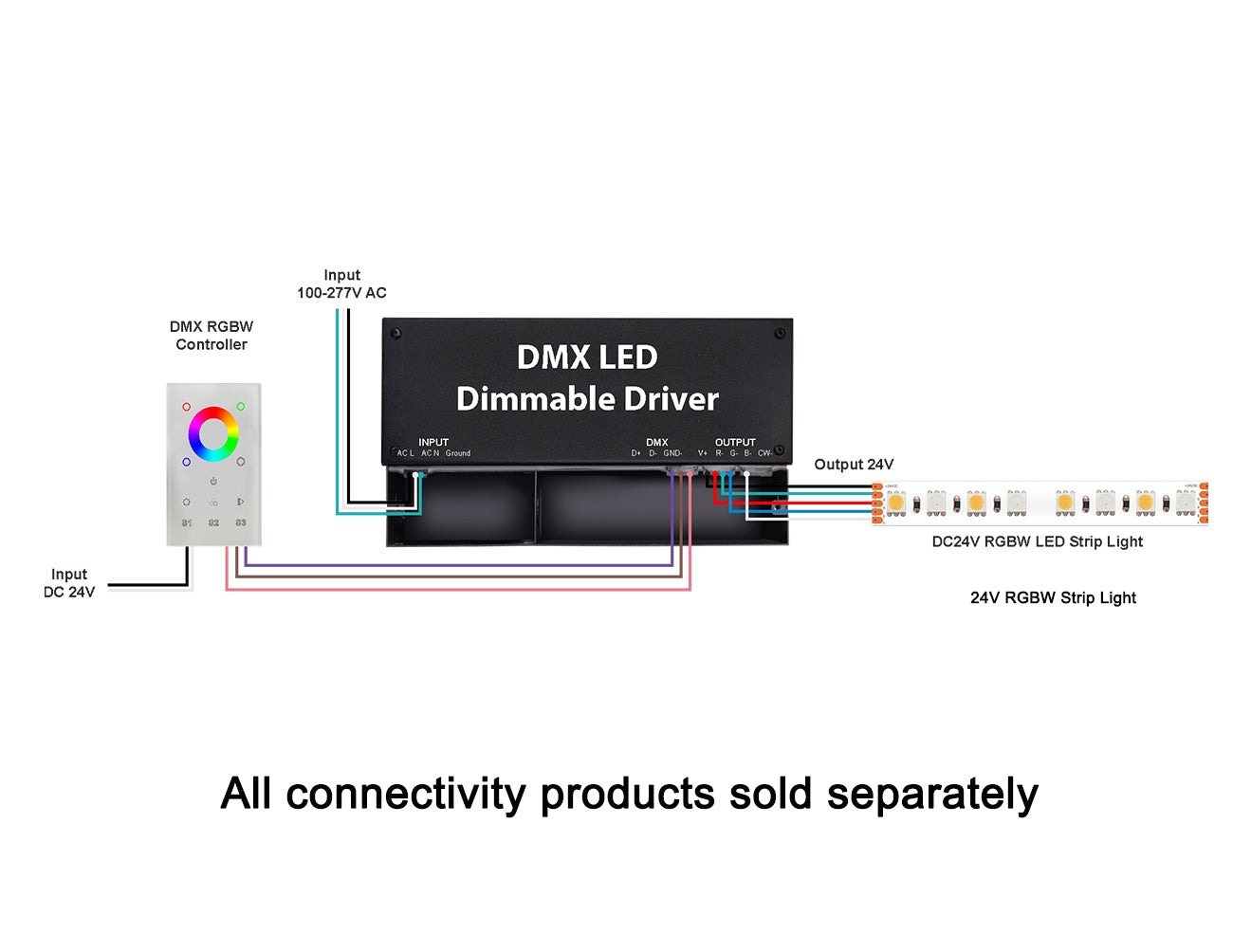

The DMX controller is connected to the 24 Volt DMX power input terminal through a signal line, showing the connection method of the controller, power supply and RGB lamps.

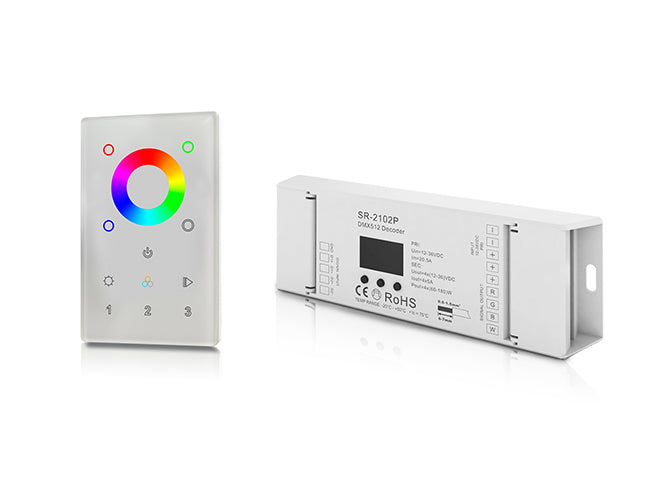

DMX RGBW Wall Mount Controller 3 Zones and its compatible receiver side by side.

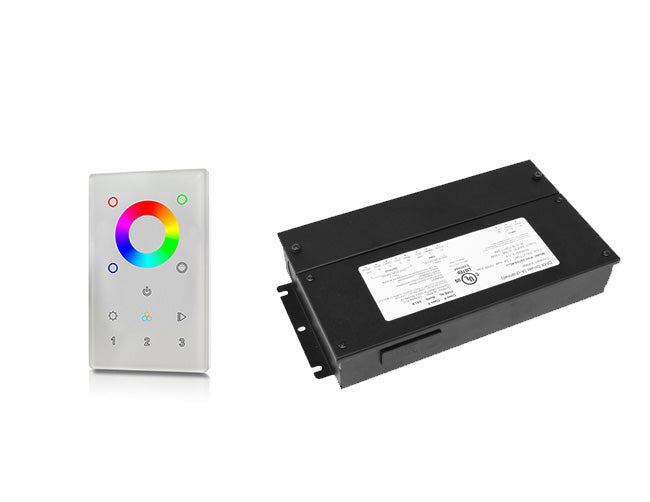

DMX RGBW Wall Mount Controller 3 Zones and its DMX Power supplies by side.

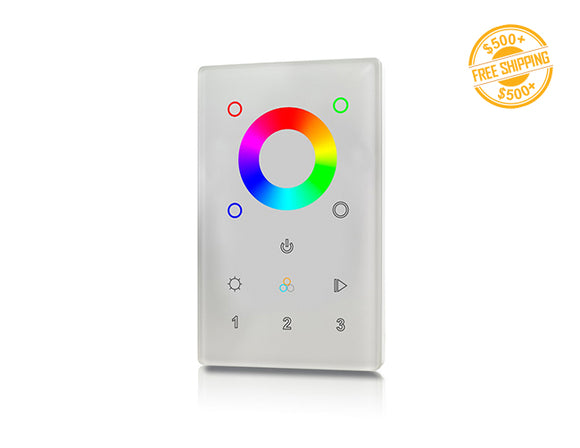

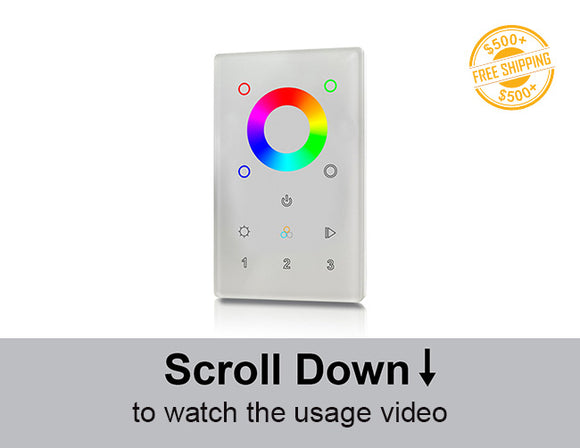

Front view of DMX RGBW Wall Mount Controller 3 Zones; a label of free shipping for orders over $500 is shown as well.

Description Compatible Products

Product Details

Designed for use with the DMX RGBW Decoder (sold separately), this controller fits in standard wall switch boxes and provides on/off control as well as fixed levels of light intensity. This RGB controller has a color-selection wheel for thousands of color options, 0-100% dimming, on/off controls, and 4 color-specific channel controls for red, green, blue, and white. Adjust color, brightness, speed for 3 zones. No flickering.

Specifications

Output	RF(2.4GHz)	Power Supply	3VDC(AAAx2)
Relative humidity	8% to 80%	Operating Ambient Temperature	0°F~40°C
Power consumption	200 mA	Certification	TUV, CE, FC, ROHS, UL
Dimension	75x120x29.1mm	Finish options	Glass interface(Black/White)
Work Environment/IP Rating	IP20(Dry location)	Control method	DMX

Documents

DMX RGBW Wall Mount Controller 3 Zones Manual
