Product Details

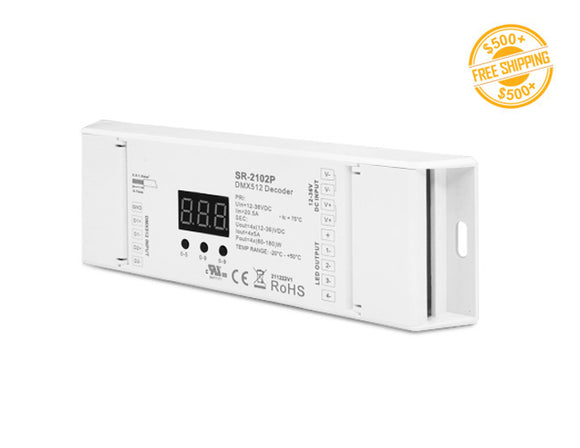

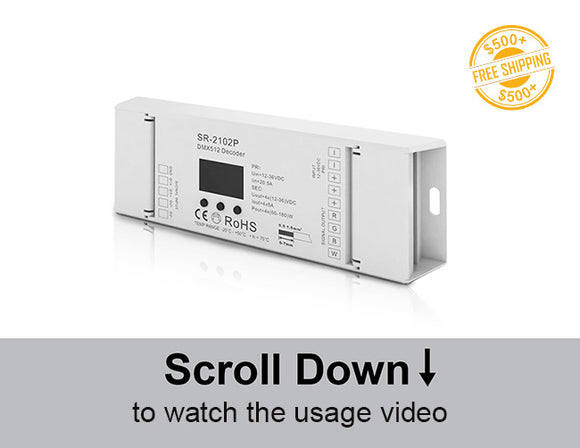

This product is a DMX512 constant voltage decoder designed for low-voltage LED lighting systems. It receives standard DMX512 signals from an external DMX controller and converts them into multi-channel constant voltage PWM output, suitable for RGB, RGBW, and monochrome LED fixtures. The decoder supports configurable DMX start address, channel mapping modes (1CH–4CH), selectable PWM frequency, and linear or logarithmic dimming curves, ensuring smooth dimming performance and reduced flicker. This unit functions solely as a DMX signal decoder and does not generate lighting effects or operate independently. It is ideal for architectural, stage, landscape, and commercial DMX lighting applications.
 |
 |
Specifications
| Operation Voltage |
12V to 36V |
Maximum load/Amp |
Max 20A, 12V-240W, 24V-480W |

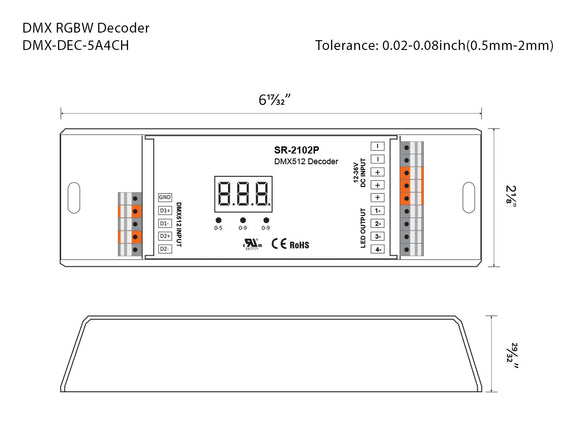

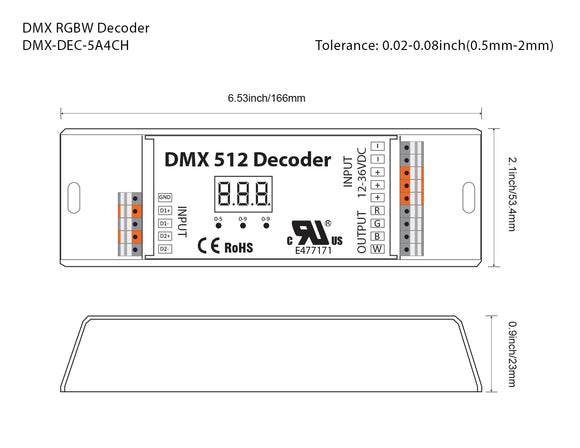

| Dimension |
L 6.5", W 2.1", D 0.9" |
Control method |
DMX |
| Work Environment/IP Rating |
Dry location, IP20 |
Finish options |
White |
| Certification |
TUV, CE, FC, ROHS, UL, RU |
Warranty |
5 Years |
Product Maximum Load/AMP
Single Color-One Channel
| Input Voltage | Output Current | Output Power | Remarks | Size(L*W*H) |
| 12VDC | 5A | 60W | Constant Voltage | 6.5"*2.1"*0.9" |
| 24VDC | 5A | 120W | ||
| 36VDC | 5A | 180W |
Changing Color(CCT)-Two Channel
| Input Voltage | Output Current | Output Power | Remarks | Size(L*W*H) |
| 12VDC | 2*5A | 120W | Constant Voltage | 6.5"*2.1"*0.9" |
| 24VDC | 2*5A | 240W | ||
| 36VDC | 2*5A | 360W |
Changing Color(RGB)-Three Channel
| Input Voltage | Output Current | Output Power | Remarks | Size(L*W*H) |
| 12VDC | 3*5A | 180W | Constant Voltage | 6.5"*2.1"*0.9" |
| 24VDC | 3*5A | 360W | ||
| 36VDC | 3*5A | 540W |
Changing Color(RGBW)-Four Channel
| Input Voltage | Output Current | Output Power | Remarks | Size(L*W*H) |
| 12VDC | 4*5A | 240W | Constant Voltage | 6.5"*2.1"*0.9" |
| 24VDC | 4*5A | 480W | ||
| 36VDC | 4*5A | 720W |
Documents

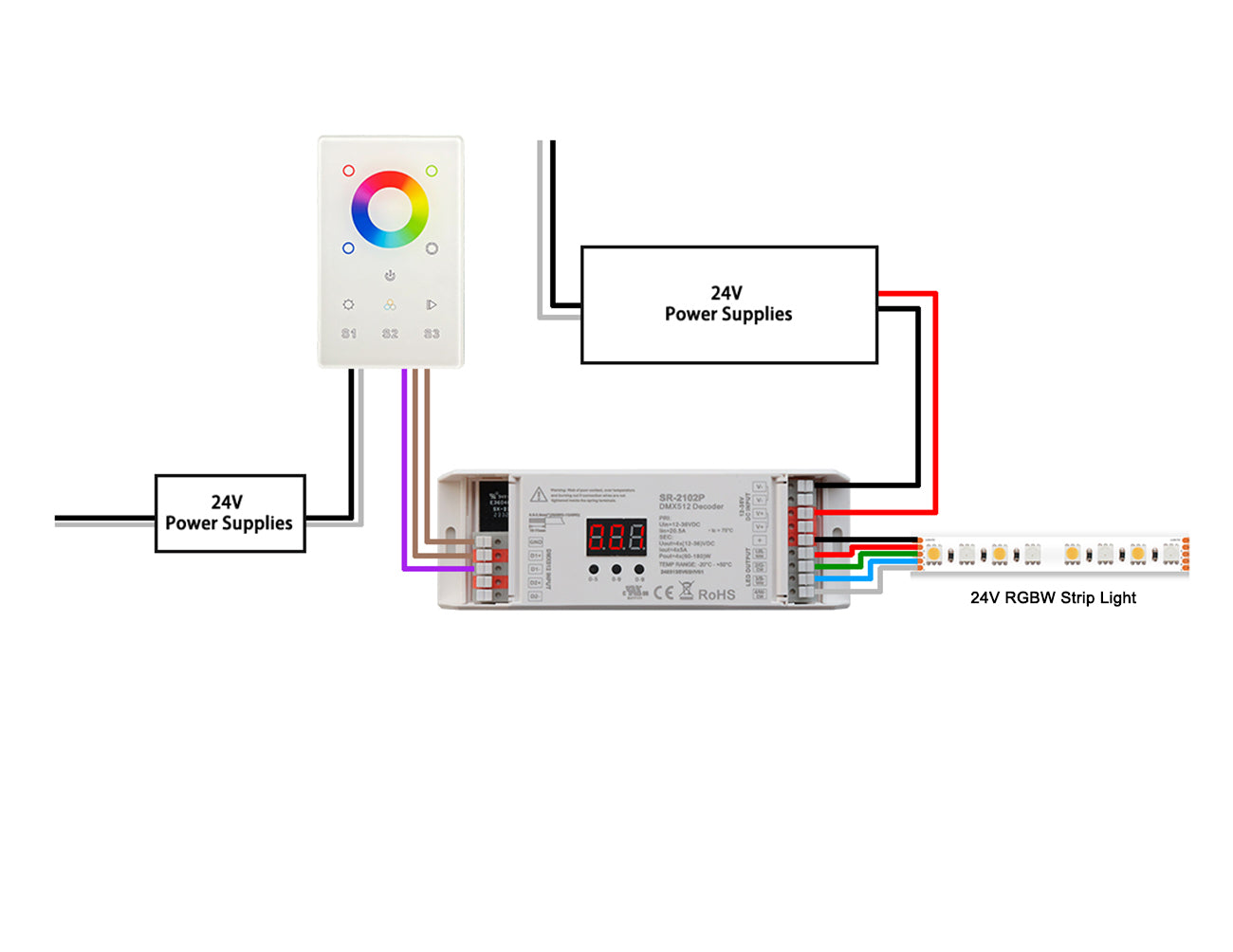

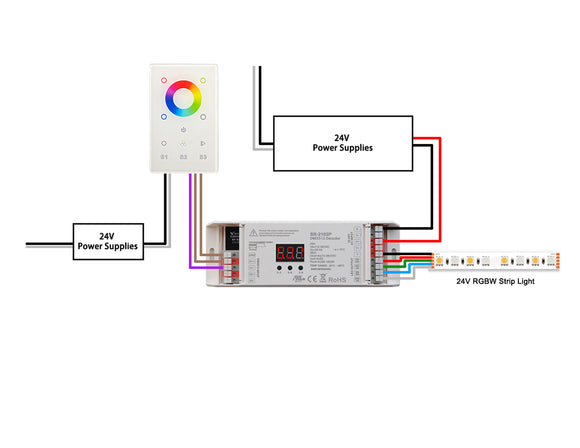

DMX RGBW decoder is compatible with DMX RGBW Controller 3 Zones
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
Frequently bought together
 |
 |
 |
 |
| All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Instruction Video
How to set up DMX RGBW controller |
