SLIM SQUARE - YD 1202 Silver Aluminum Channel + Milky Diffuser - 94"

SKU: YD-1202-AL-8-M-S

Login to view price

YD-1202 is a slim square-shaped extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.67” in width and 0.59” in height. The larger depth of the channel helps avoid hotspots with strip lights inside. Internal width of the aluminum channel is 0.47", compatible to host a 10mm LED strip light. Each extrusion is 94” long and has a silver color with a milky diffuser.

The aluminum extrusion can be easily surface mounted. The sleek design of the channel makes it ideal for a neat finish of LED strip light fixtures.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: YD-1202-AL-8-M-S

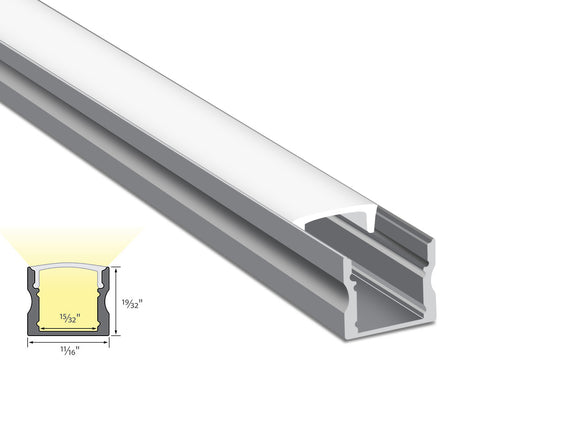

  • Dimension: L 93.75", W 11/16", H 19/32"
  • Internal width: 15/32"
  • Work Environment / IP Rating: IP20
  • Finish options: Silver, Anodized extruded aluminum, Frosted plastic Cover
  • Installation options: Surface Mounted
  • Special features: Slim Square

Aluminum Channel Specification - SLIM SQUARE YD 1202

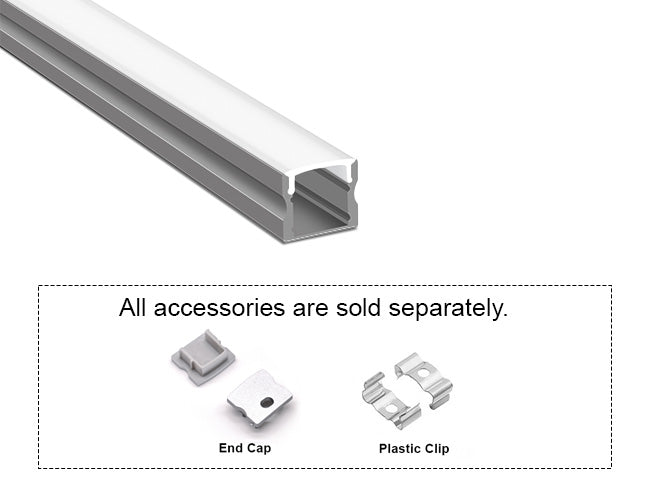

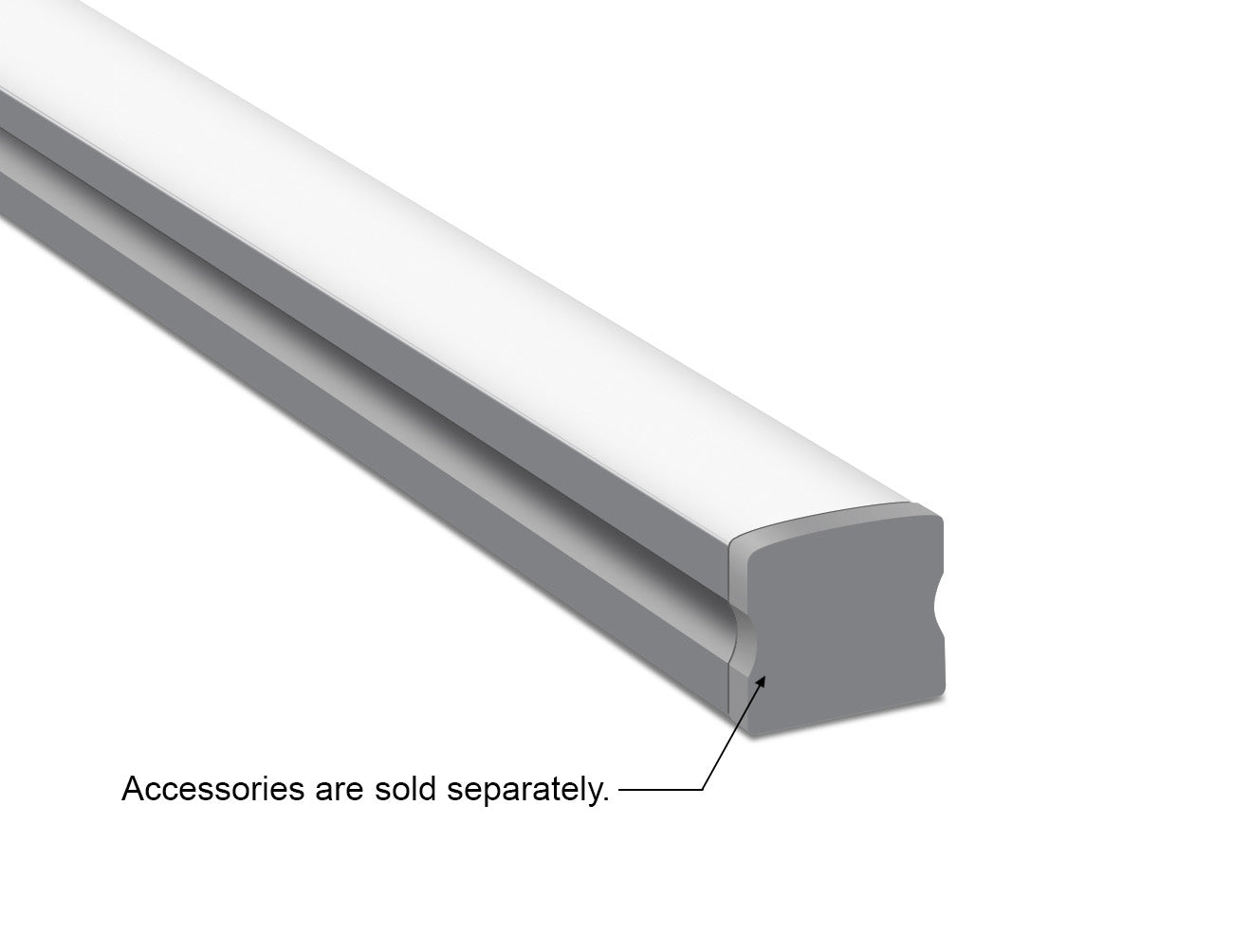

Accessories are available and sold separately

End Caps

Clips
