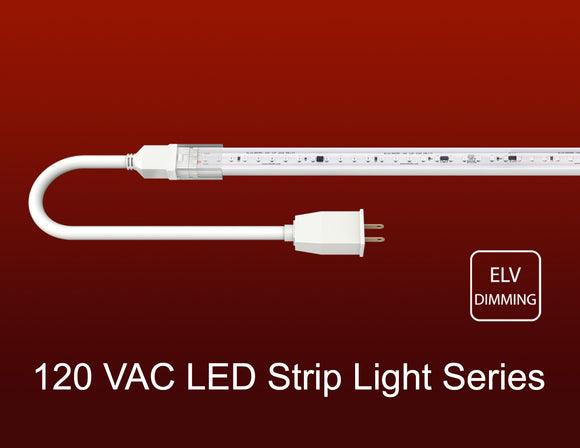

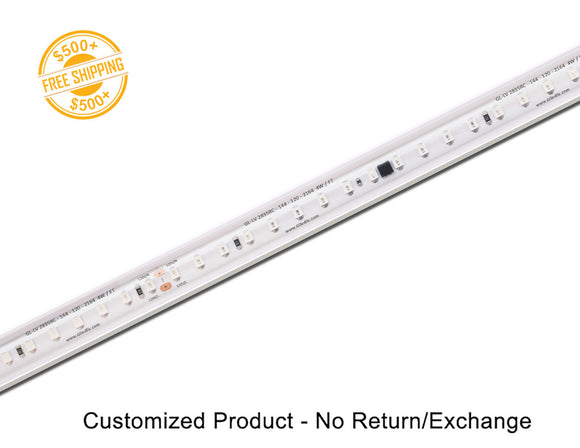

120V Dimmable LED Strip Light PRO-H Red 81-90ft

Product Details

With its modernized design, the PRO-H Red dimmable strip light can be directly wired to a 120V high-voltage source without the need for any external transformers or drivers.

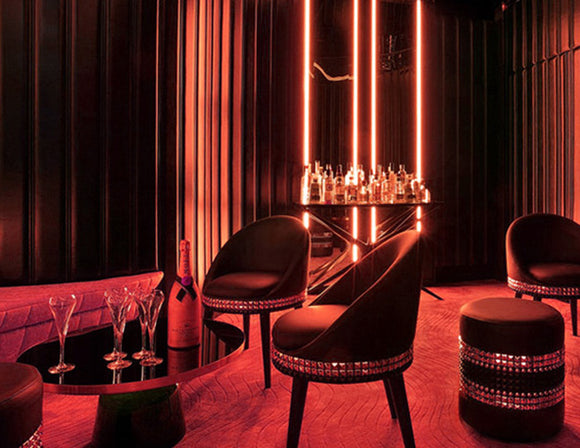

Red lighting is renowned for its intensity and symbolic richness, making this LED strip an excellent choice for dramatic effects or themed color schemes in lighting design.

This waterproof LED strip (IP65 rated) can be cut every 12 inches and continues to perform efficiently. It operates at 4W/ft with an efficiency of 15LM/W. This model has a maximum run of 164ft without a voltage drop.

The strip is easy to install using compatible clips and channels (sold separately). It's a versatile solution for both indoor and outdoor environments requiring flexible layouts, weather resistance, and long-run illumination.

All 120V dimmable LED strip lights are to be made at our shop to customized lengths following project requirements from our customers to ensure the best performance of the driverless strip lights. Once a customized order has been completed, no cancellations, returns or exchanges will be accepted except for manufacturer defects or damages.

Free samples of the dimmable LED strip light are available for your convenience so that you can feel the product prior to making an actual purchase.

Specifications

• Brightness: 34 lm/ft
• Power Consumption: 4.5W/ft
• Maximum Run Length: 164 ft

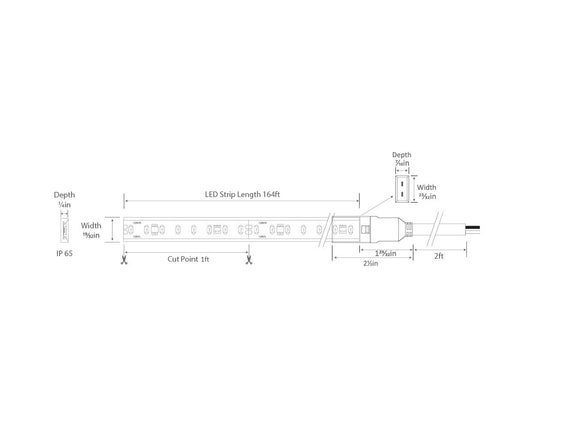

• Dimensions: Width: 19/32"; Depth: 1/4"
• IP Rating: IP65
• Dimming: Compatible with ELV dimmers
• Certifications: ETL
• Warranty: Indoor: 5 Years; Outdoor: 3 Years

Note:
· Each piece of the product may or may not include one straight connector.
· The lights are intended only for the purposes specified in the purchase order.
· Customized products are non-refundable and non-returnable.
· Warranty will be void if the product is modified by the customer.
· All IP65-rated products are designed for wet locations only and must not be used underwater or in areas where water may accumulate.

Our 120V Dimmable LED Strip Light are compatible with various dimmers, but they deliver the best performance when used with ELV dimmers. We have tested and compiled a chart of verified ELV dimmers for your reference (click here to view the file)

Documents

120V Dimmable LED Strip Light PRO-H Specification
120V Dimmable Strip Light Compatible LUTRON Dimmer List
120V Dimmable LED Strip Light Brochure

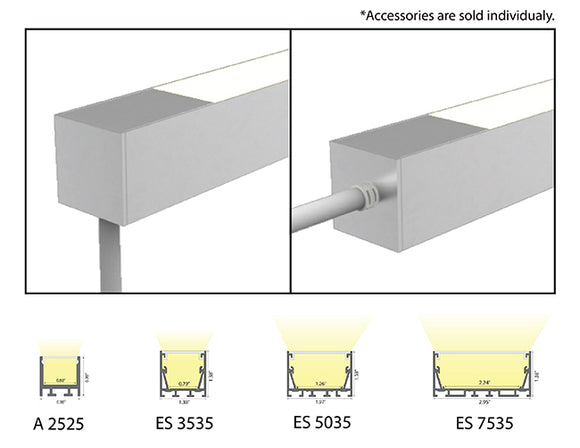

Compatible Aluminum Channel

ES 3535	ES 5035

Frequently bought together

120V Dimmable Strip Lights	120V Strip Light Accessories

Q&A

Do I need a high voltage or a low voltage LED strip light?

High voltage LED strip lights operate within the range of 110-220V AC, which is the standard voltage used in most homes and buildings. These lights do not require an additional driver and can be directly plugged into a line outlet for illumination. This streamlined setup helps reduce both material costs and labor for installation. High voltage LED strip lights maintain their brightness consistently over long runs without experiencing voltage drop issues. They are typically compatible with ELV dimmers and are well-suited for indirect lighting applications. Additionally, they are suitable for large-scale, long-distance projects, both indoors and outdoors.

On the other hand, low voltage LED strip lights operate at 12V or 24V DC and necessitate a separate transformer or power supply to function. This voltage category offers a wider range of models and compatible components, making low voltage strip lights the preferred choice when flexibility is a key consideration. They can be used with various types of dimmers and are suitable for both direct and indirect lighting in indoor and outdoor settings.

Therefore, choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, and the degree of customization and control needed, etc.

Please read here for more details about the differences between high voltage and low voltage strip lights.
