Product Details

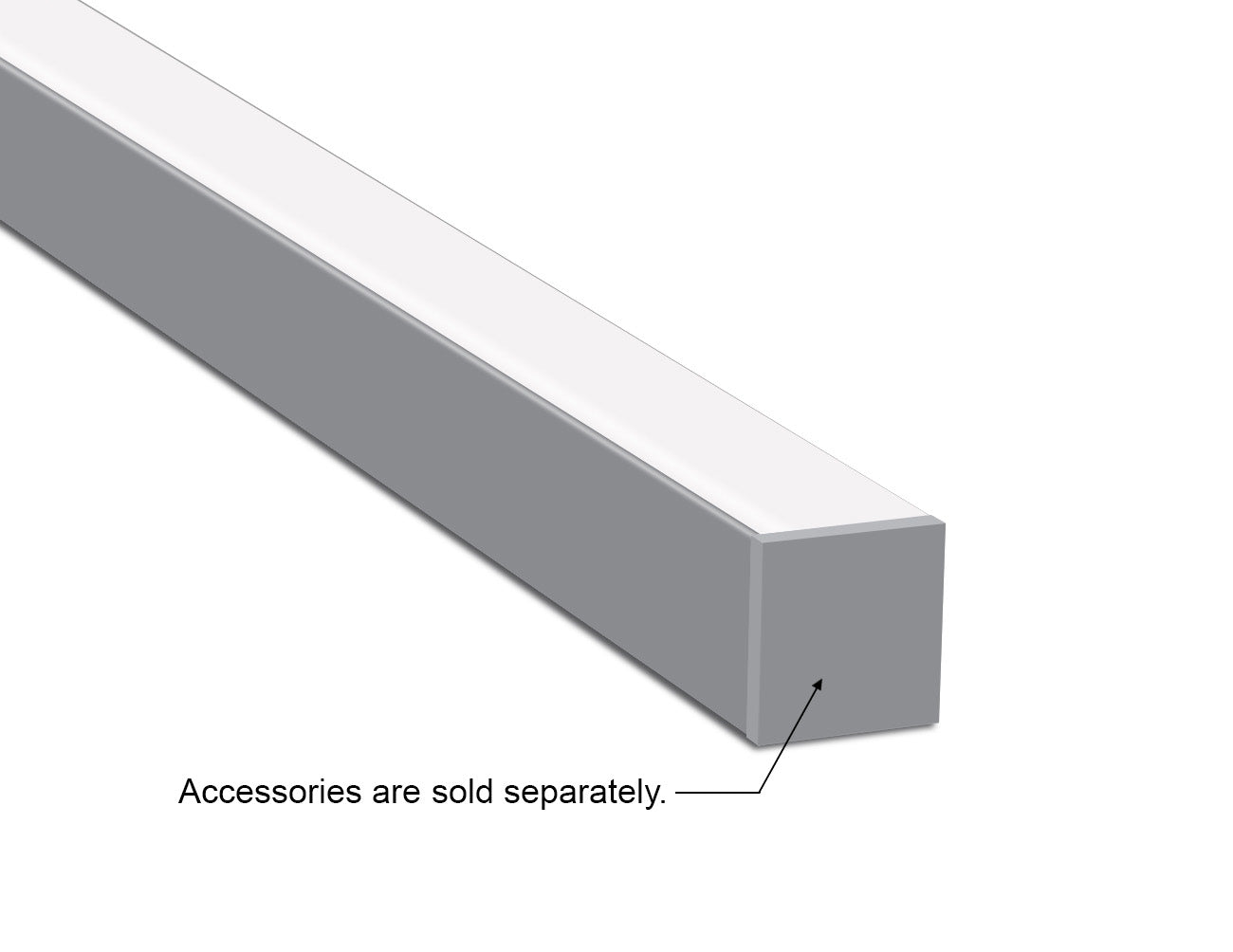

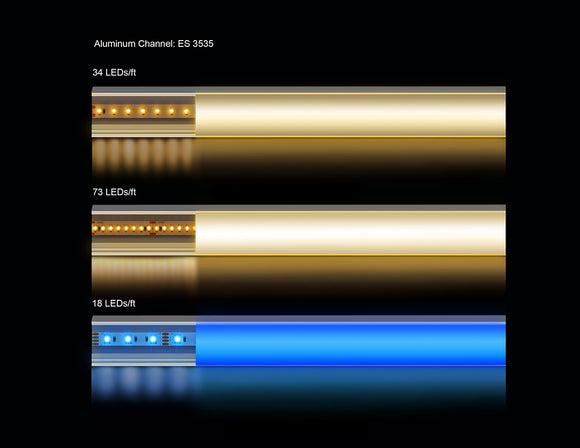

ES-3535 is a square-shaped extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 1.38 in width and 1.38 in height. Each piece is 94” long and has a silver color finish. The increased depth of the profile further aids in achieving a uniformly dispersed light, free from any noticeable hotspots.

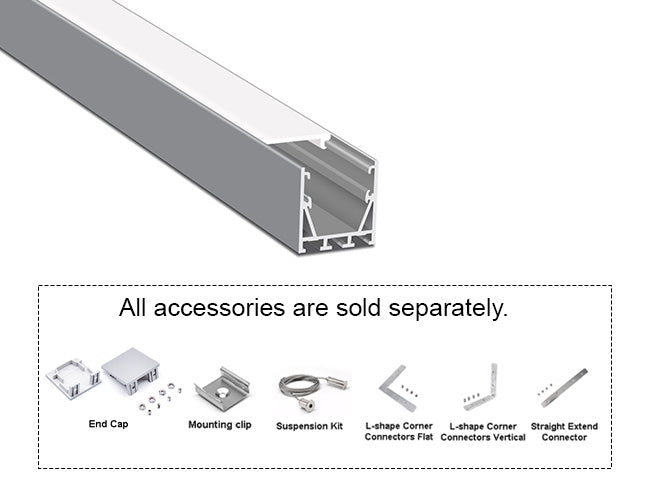

Three grooves at bottom of each channel help seamless connections of the channels using straight extended connectors, L-shaped flat corner connectors, or L-shaped vertical corner connectors (sold separately). The aluminum channel can be surface mounted directly with mounting clips (sold separately), or suspended from a ceiling using a compatible suspension kit (sold separately).

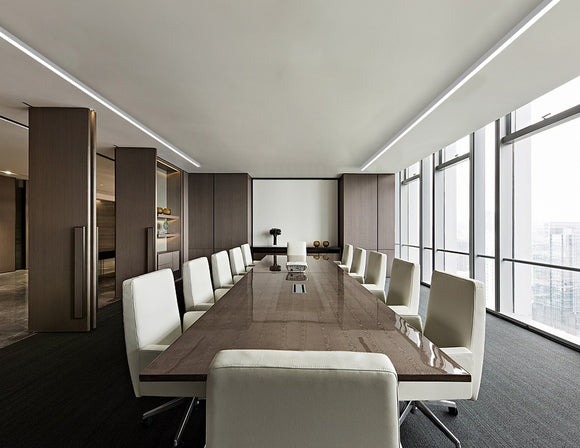

The ES-3535 aluminum extrusion is ideal for linear strip lights that are either suspended or surface mounted to present a stylish lighting appearance.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications

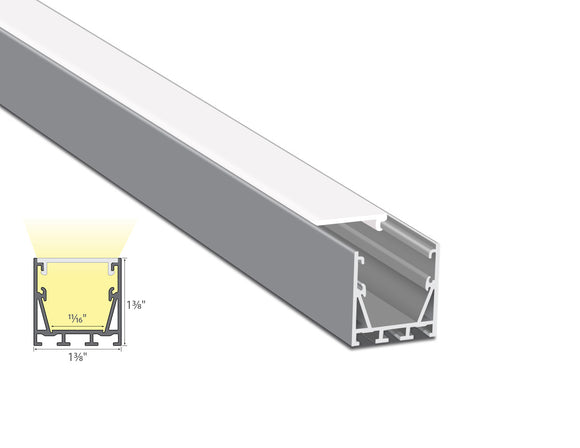

Dimension |
L 94", W 1 3/8", H 1 3/8" |
Internal width |
11/16" |
Material |
Anodized Aluminum |
Finish |
Silver aluminum and milky diffuser |
Diffuser |
Milky |
Installation |
Surface Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - 3535 LINEAR ES 3535
View AccessoriesWhy Use Aluminum LED Channels?
Searching for the best way to install LED strip lights? Aluminum LED channels are the go-to solution for DIYers and professionals:
· Premium Look
Get a clean, flush finish in residential or commercial spaces.
· Anti-Glare Diffusion
Use frosted covers for smooth light output.
· Better Heat Sink
Prevents LEDs from overheating.
· Protective Housing
Keeps LEDs safe from dust, liquids, and damage.
· Custom Fit
Easy to cut, drill, and mount on any surface.
· Saves Money
Fewer LED replacements = lower long-term costs.
