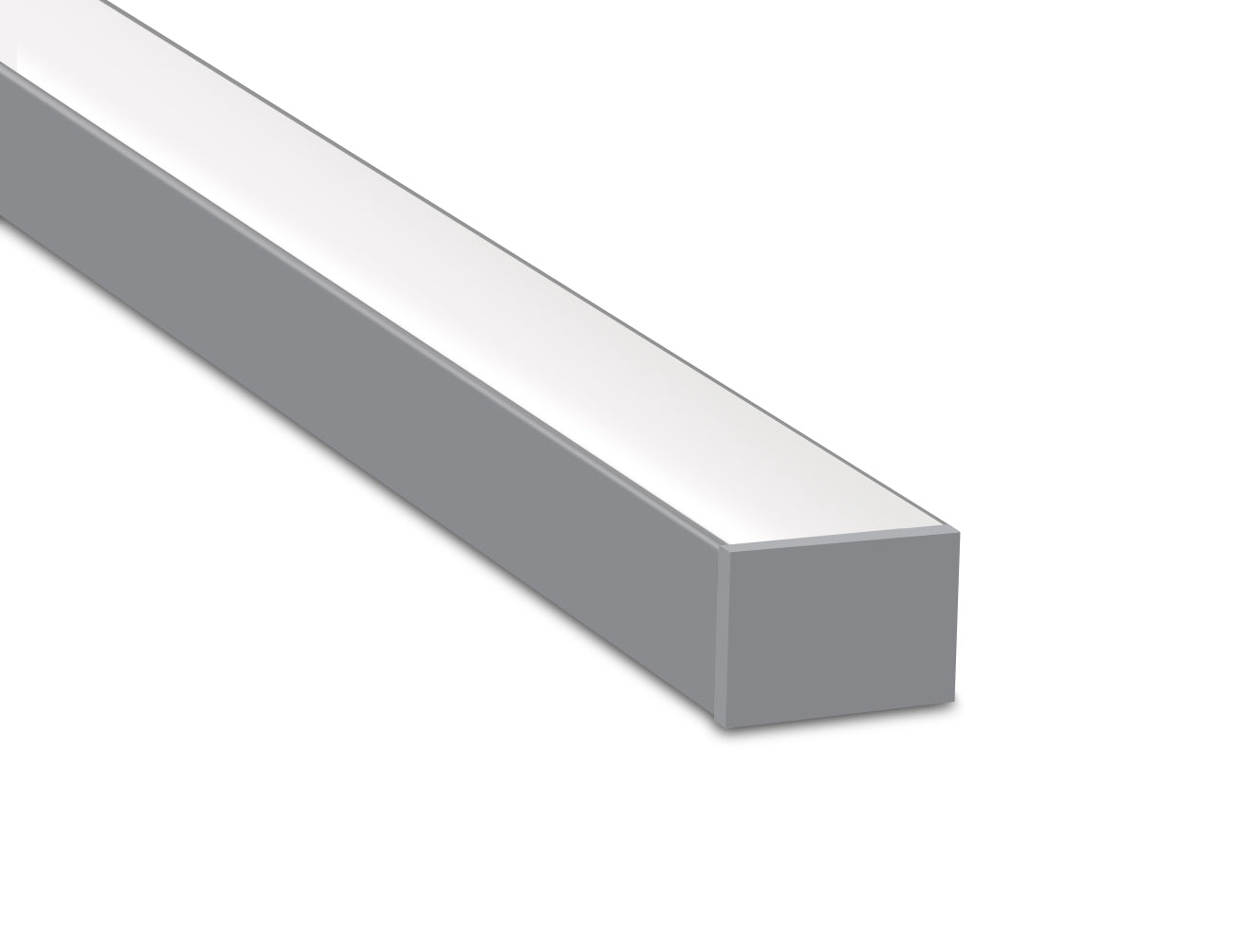

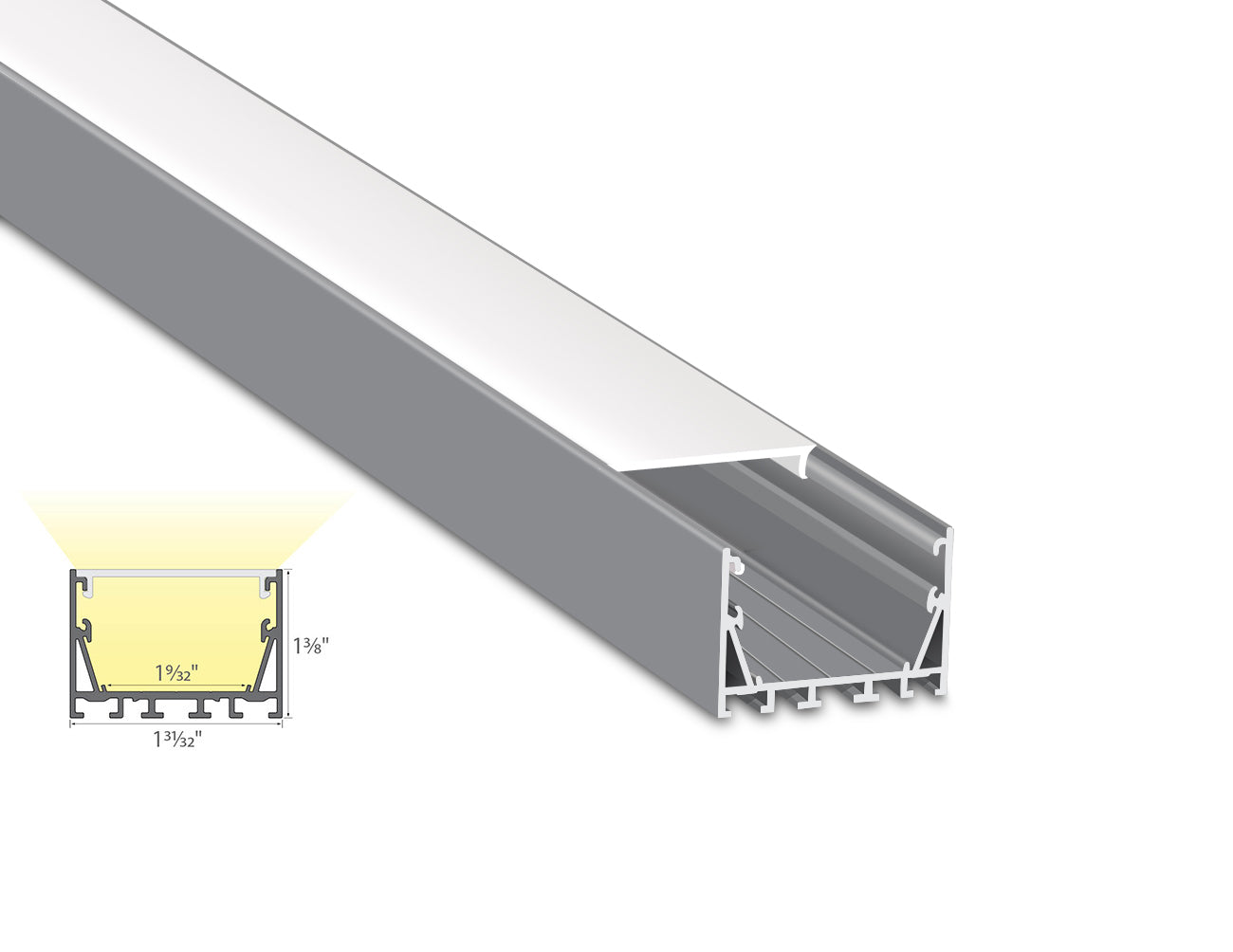

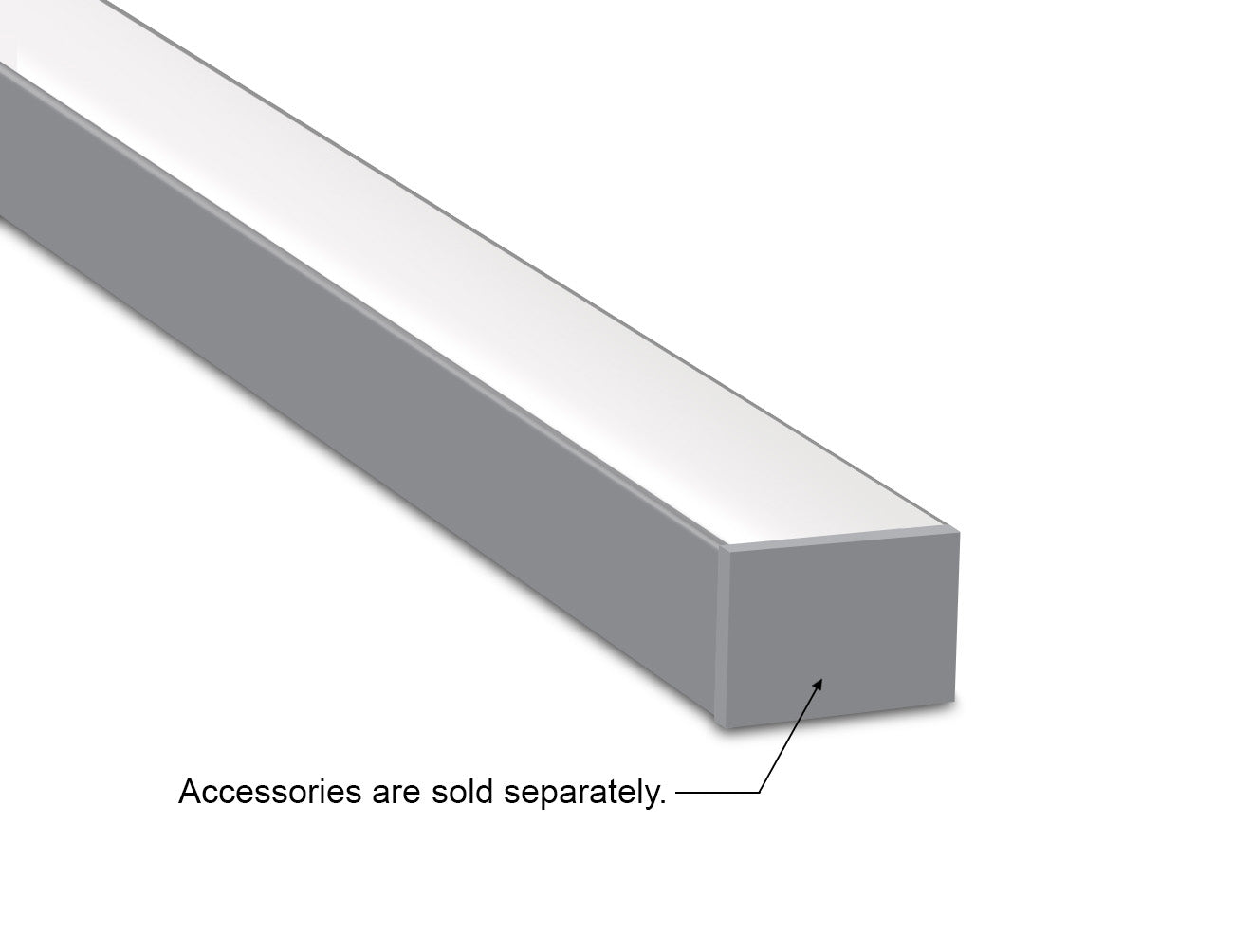

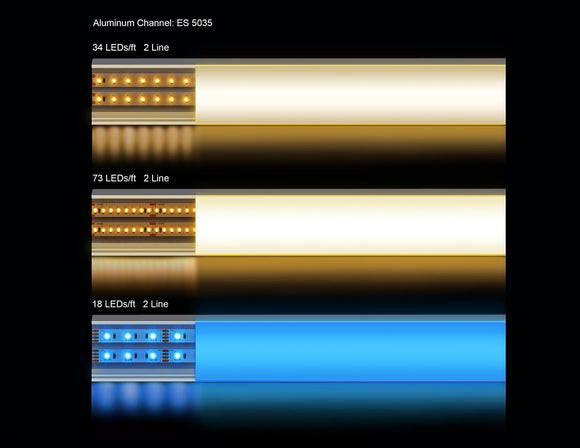

ES-5035 is a rectangular-shaped extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 1-31/32” in width and 1-3/8” in height. Internal width of the aluminum channel is 1-9/32", spacious enough to host at least two lines of 10mm wide LED strip lights. Each piece is 94” long and has a silver color finish.

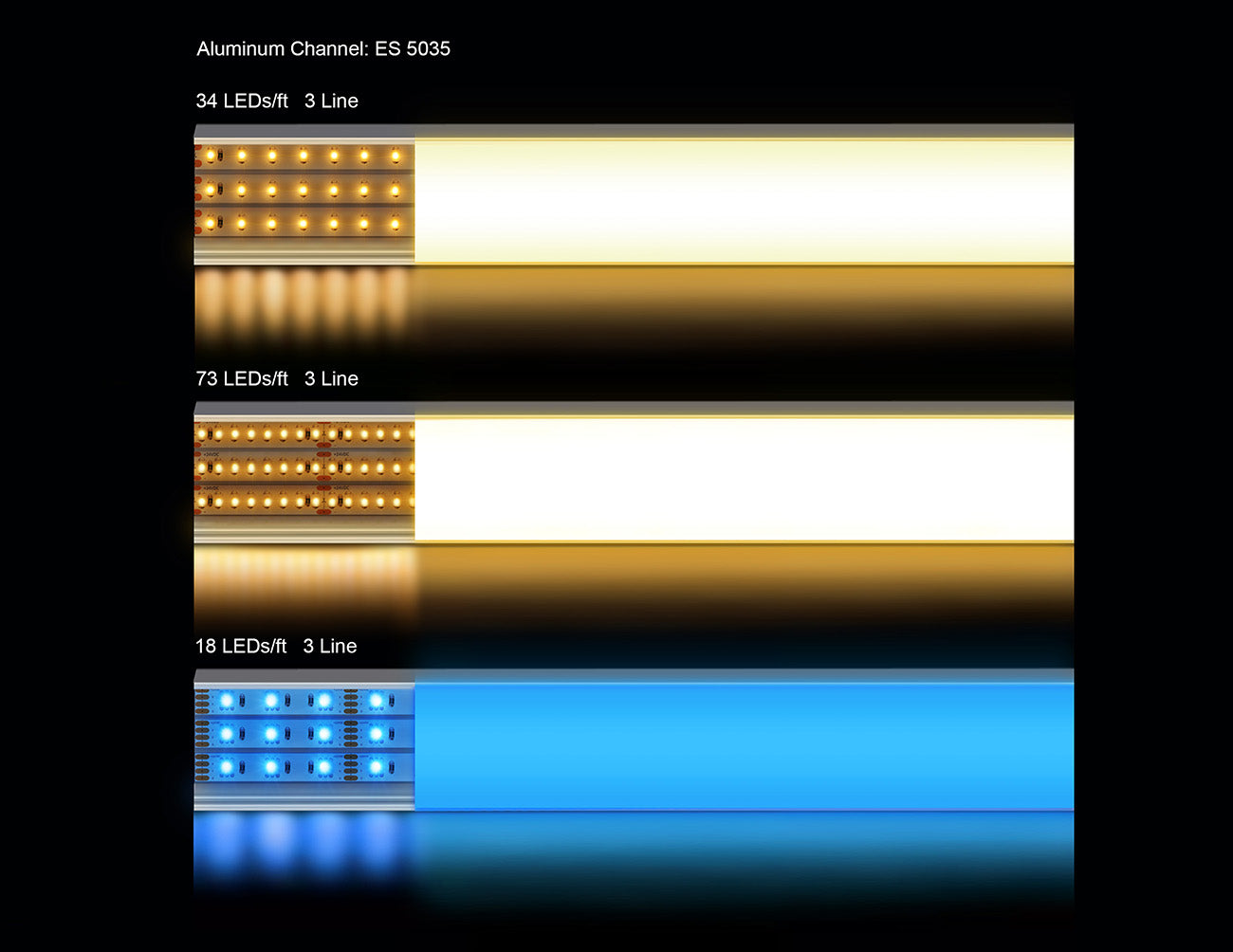

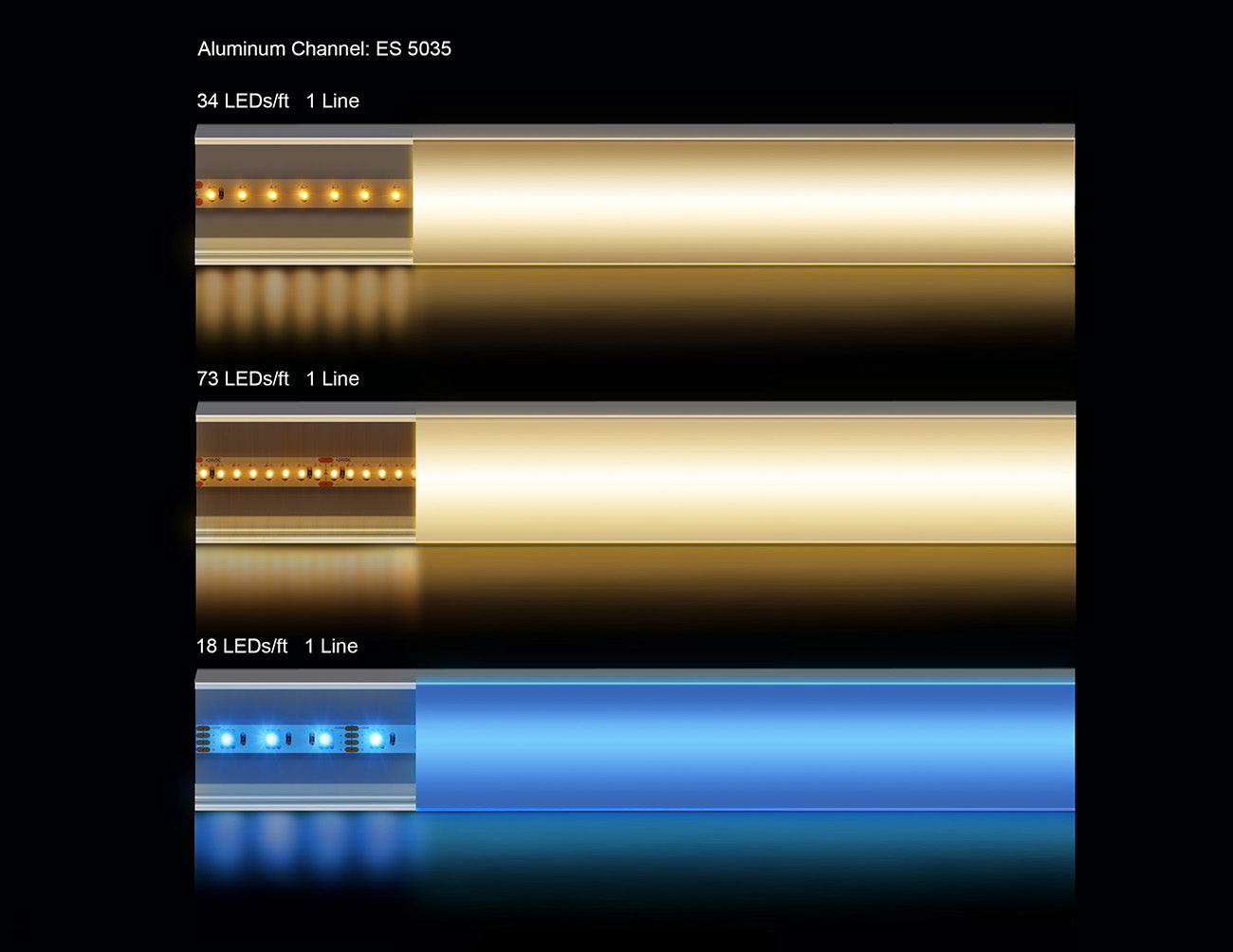

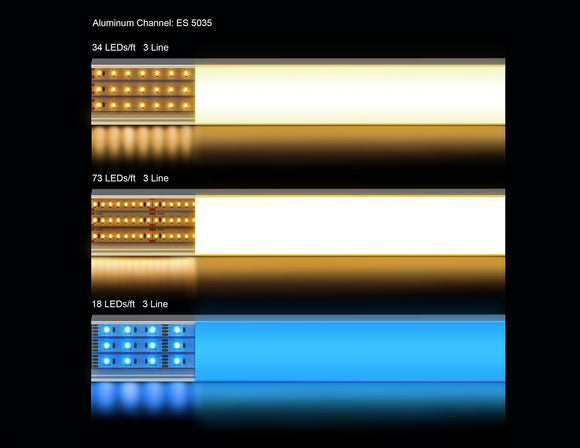

The extrusion possesses ample width to accommodate three rows of LED strip lights with standard dimensions, resulting in an elevated lighting effect. The increased depth of the profile further aids in achieving a uniformly dispersed light, free from any noticeable hotspots.

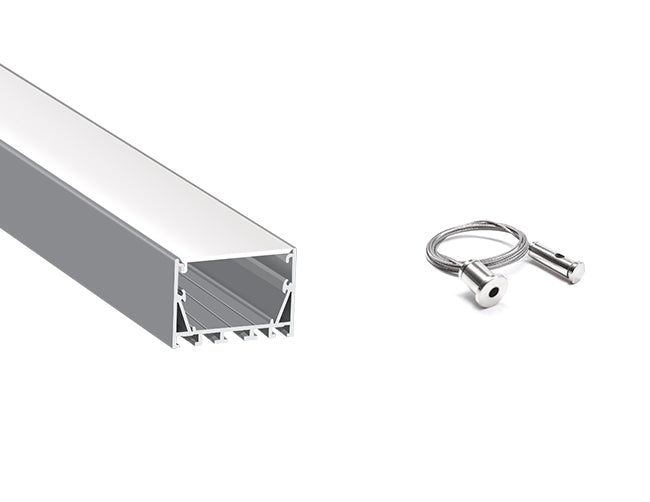

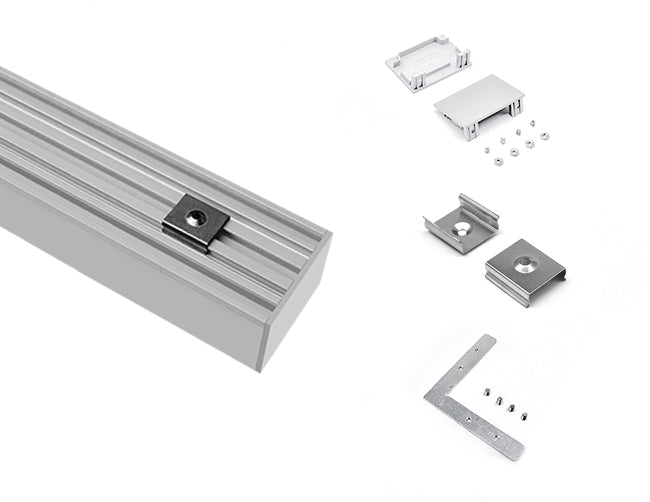

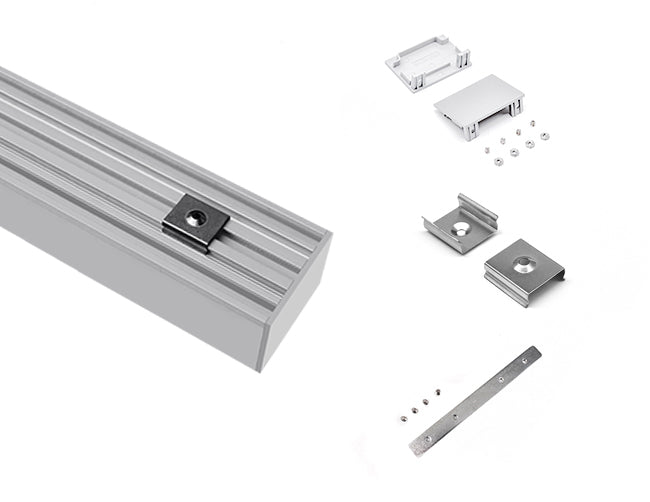

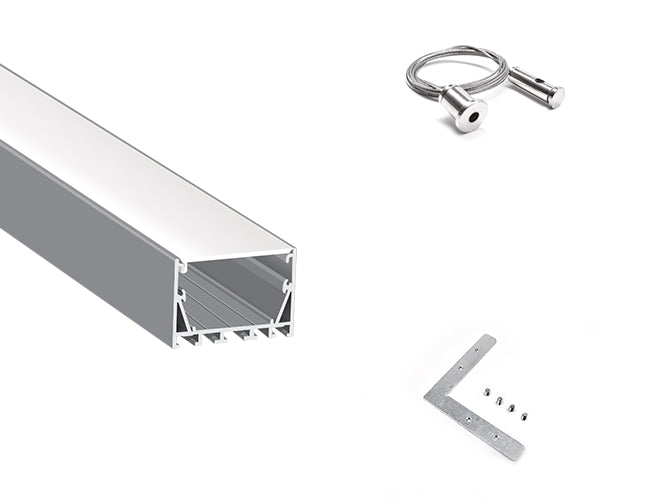

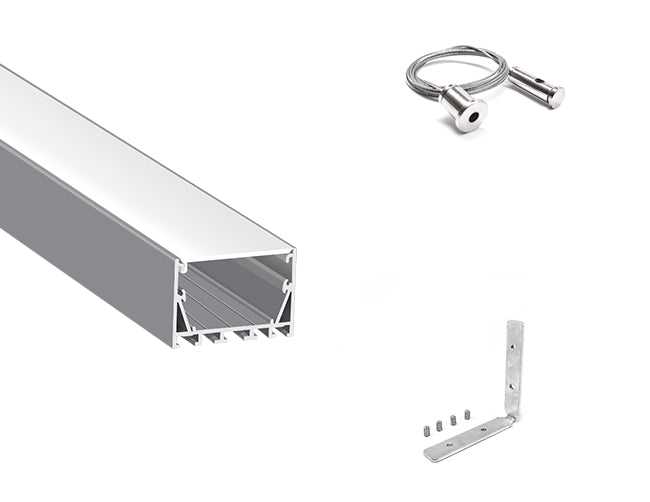

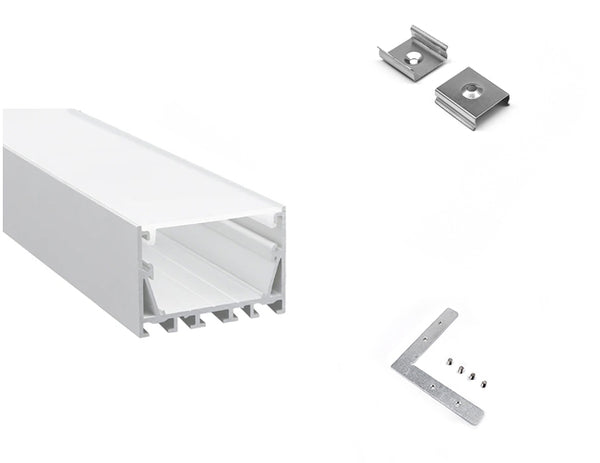

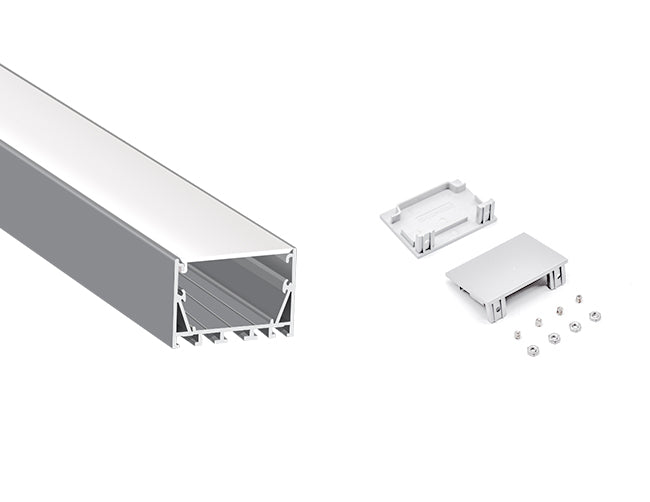

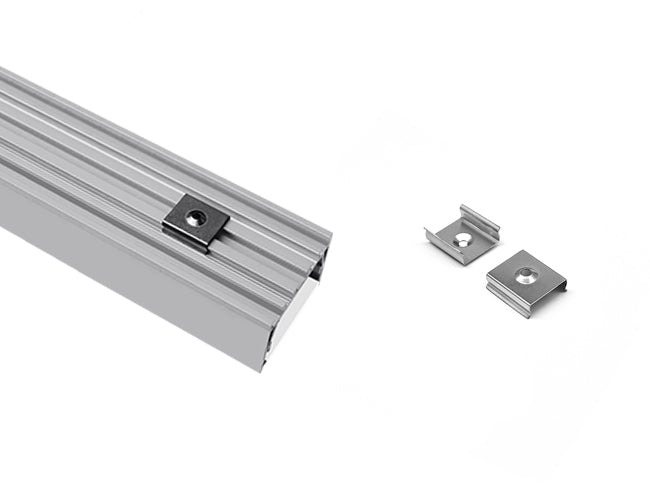

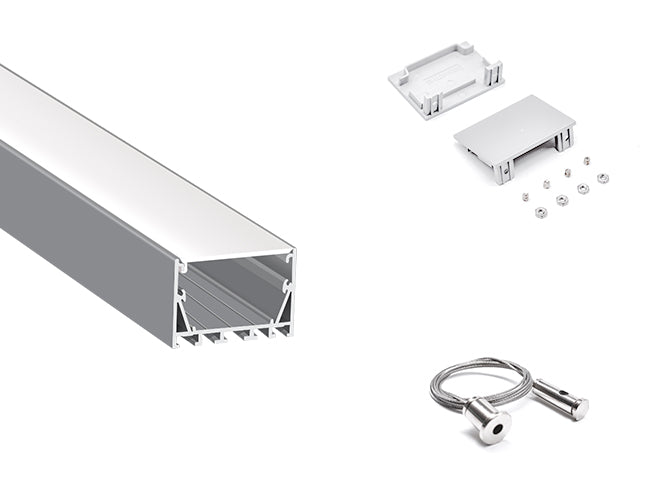

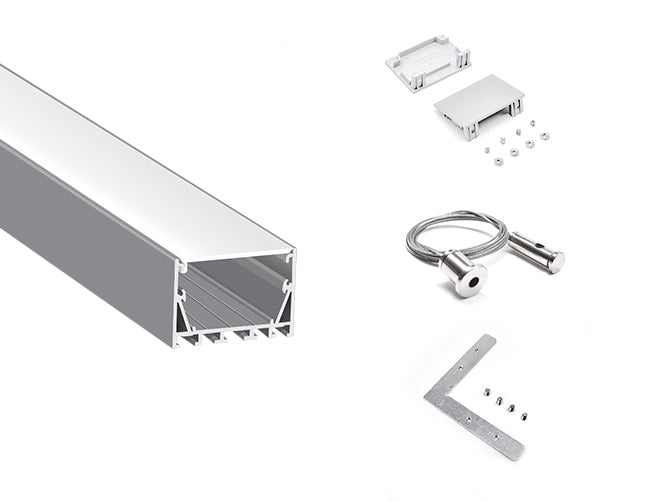

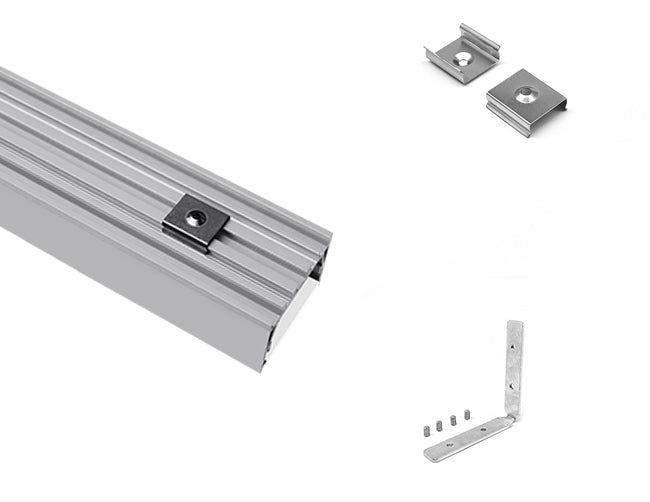

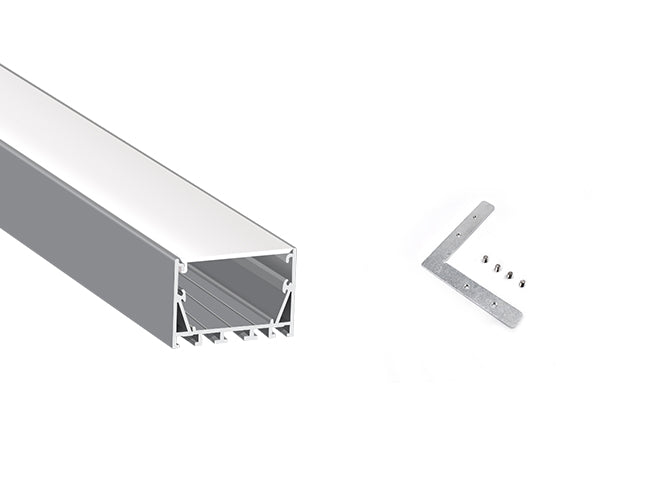

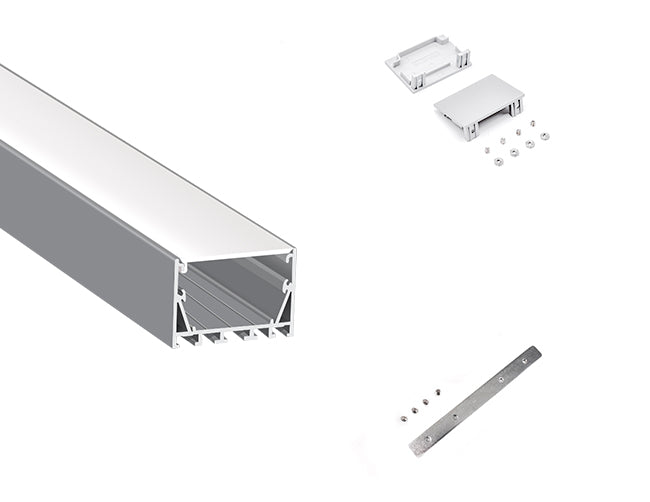

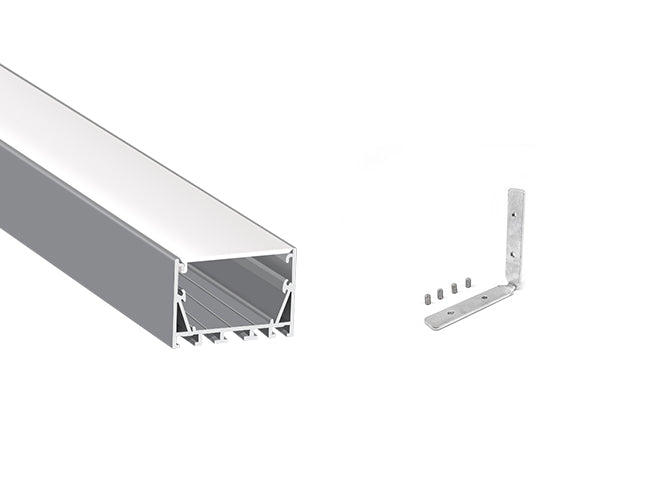

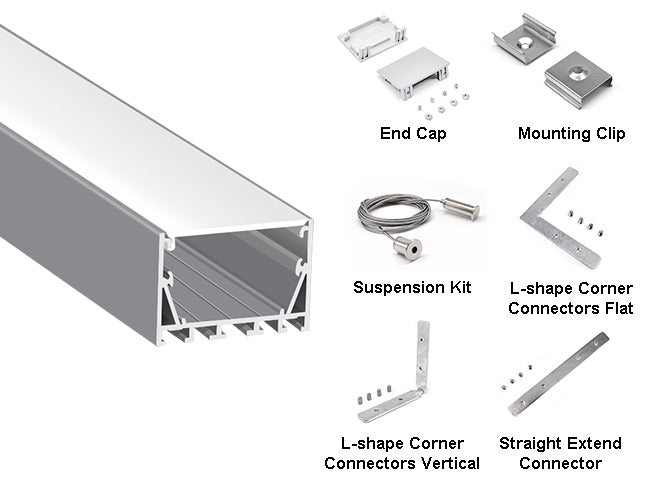

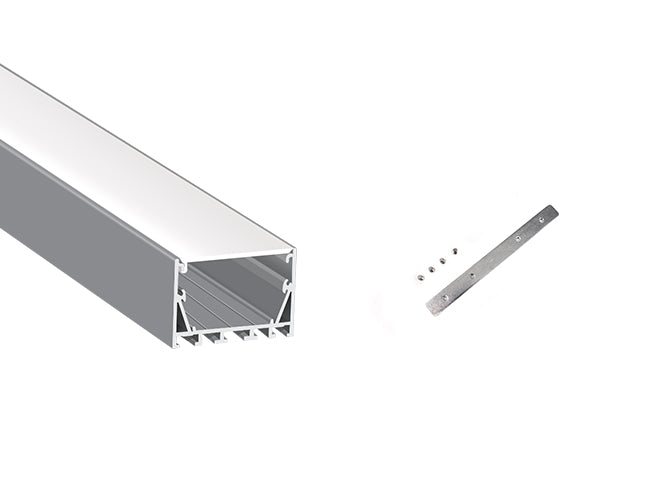

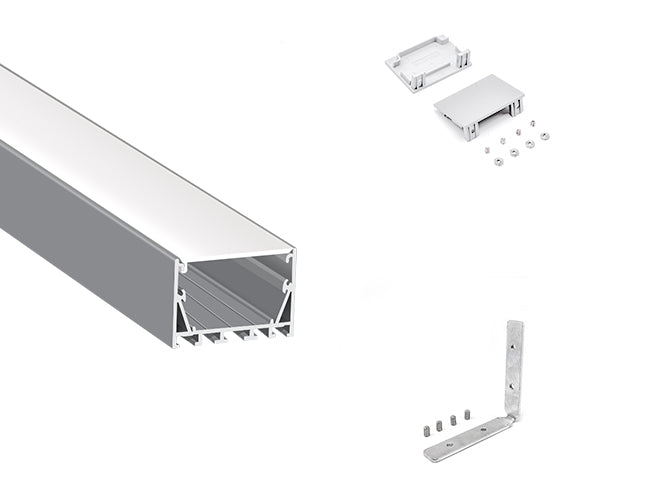

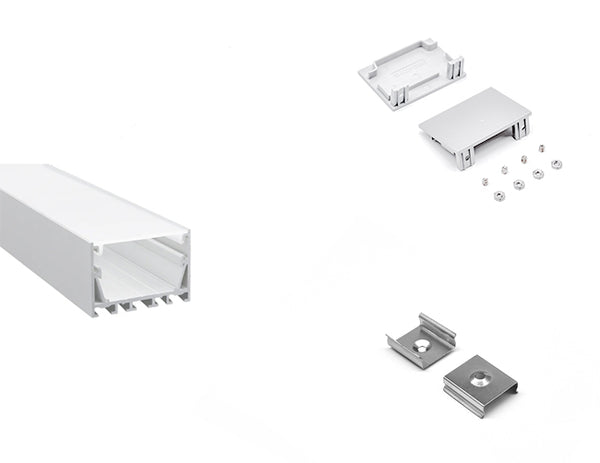

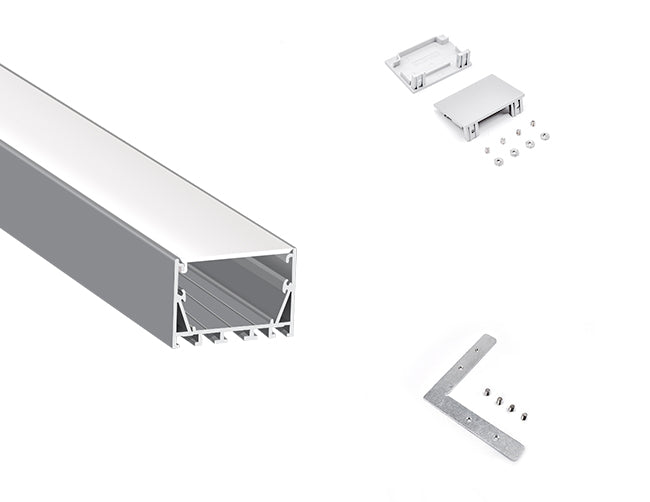

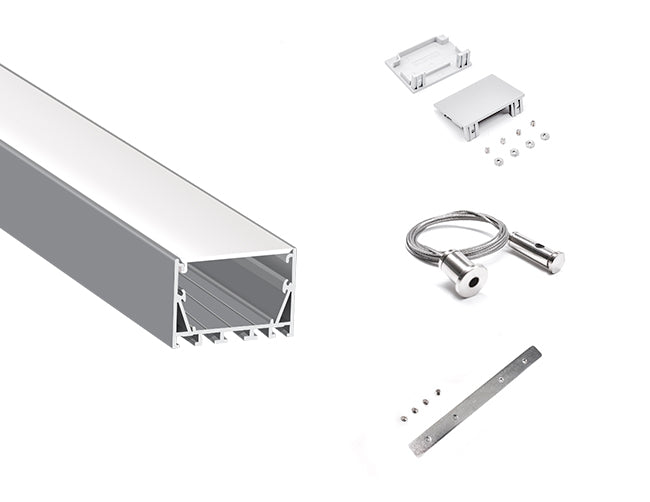

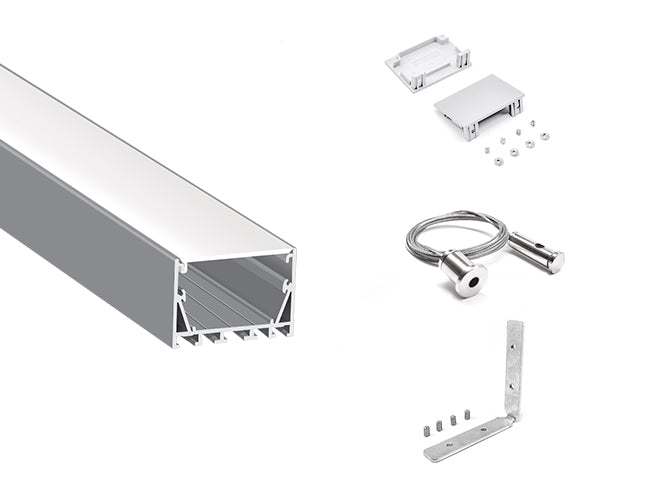

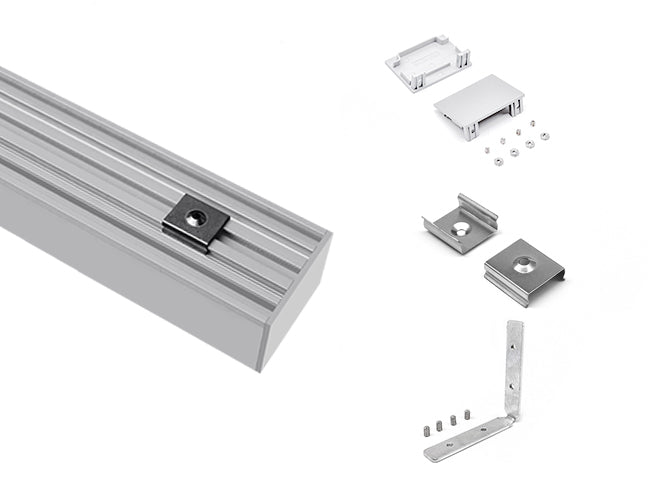

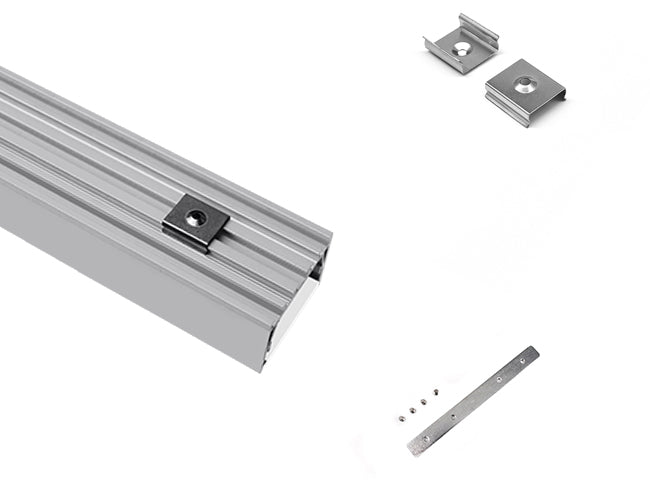

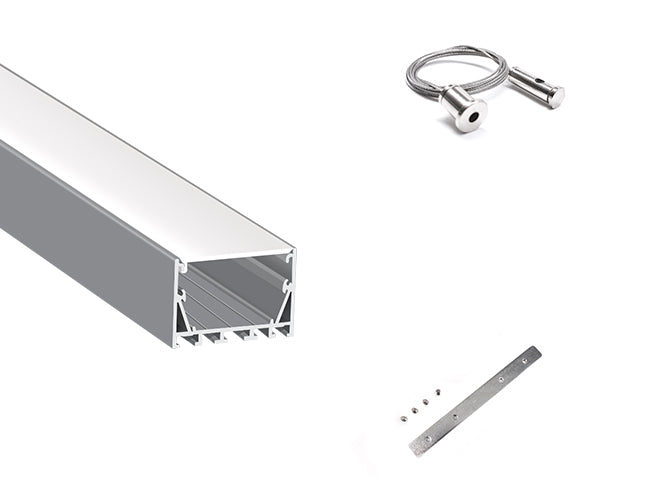

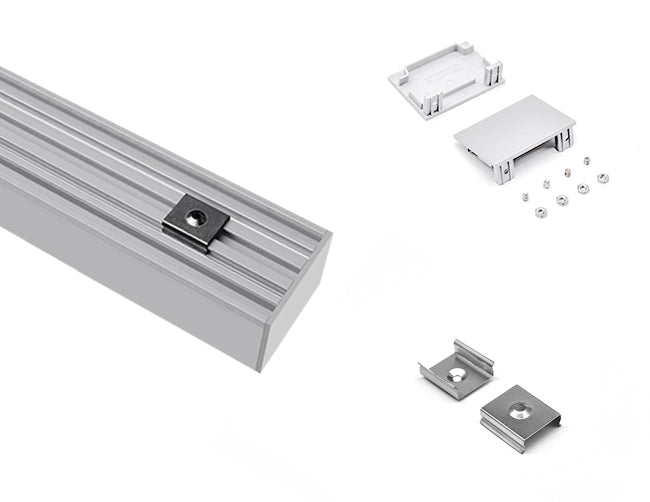

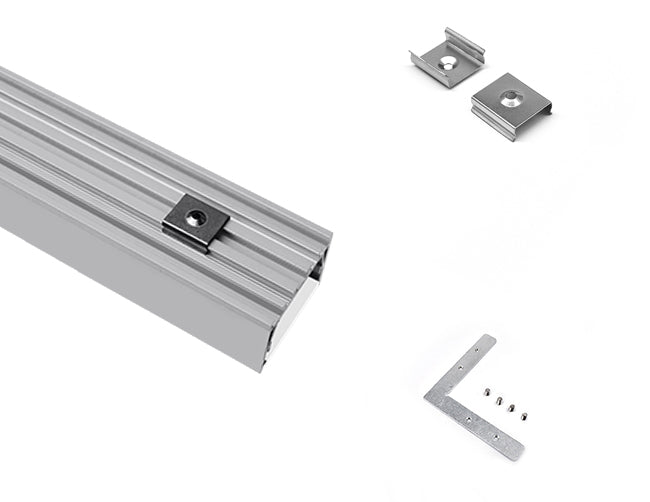

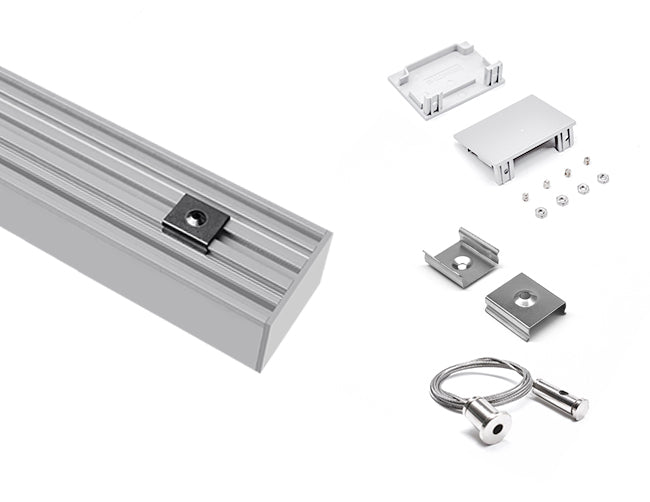

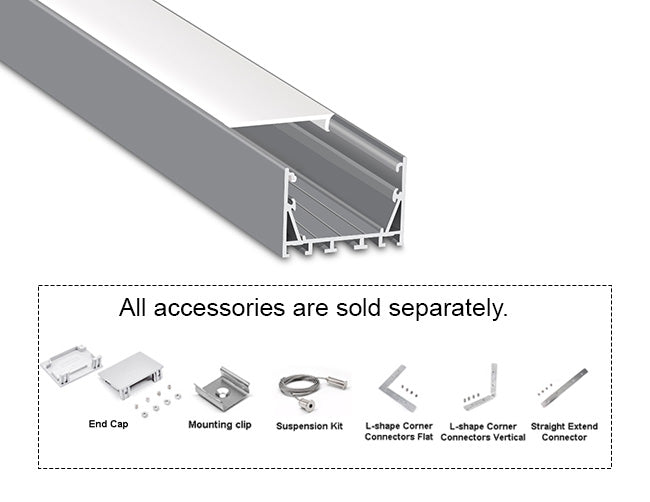

Five grooves at the bottom of each channel help create seamless connections between the channels using straight/flat/vertical extension connectors (sold separately). The aluminum channel can be suspended or surface-mounted to fit different application environments. Other compatible accessories (end caps and mounting clips) are also available to complete a smooth installation.

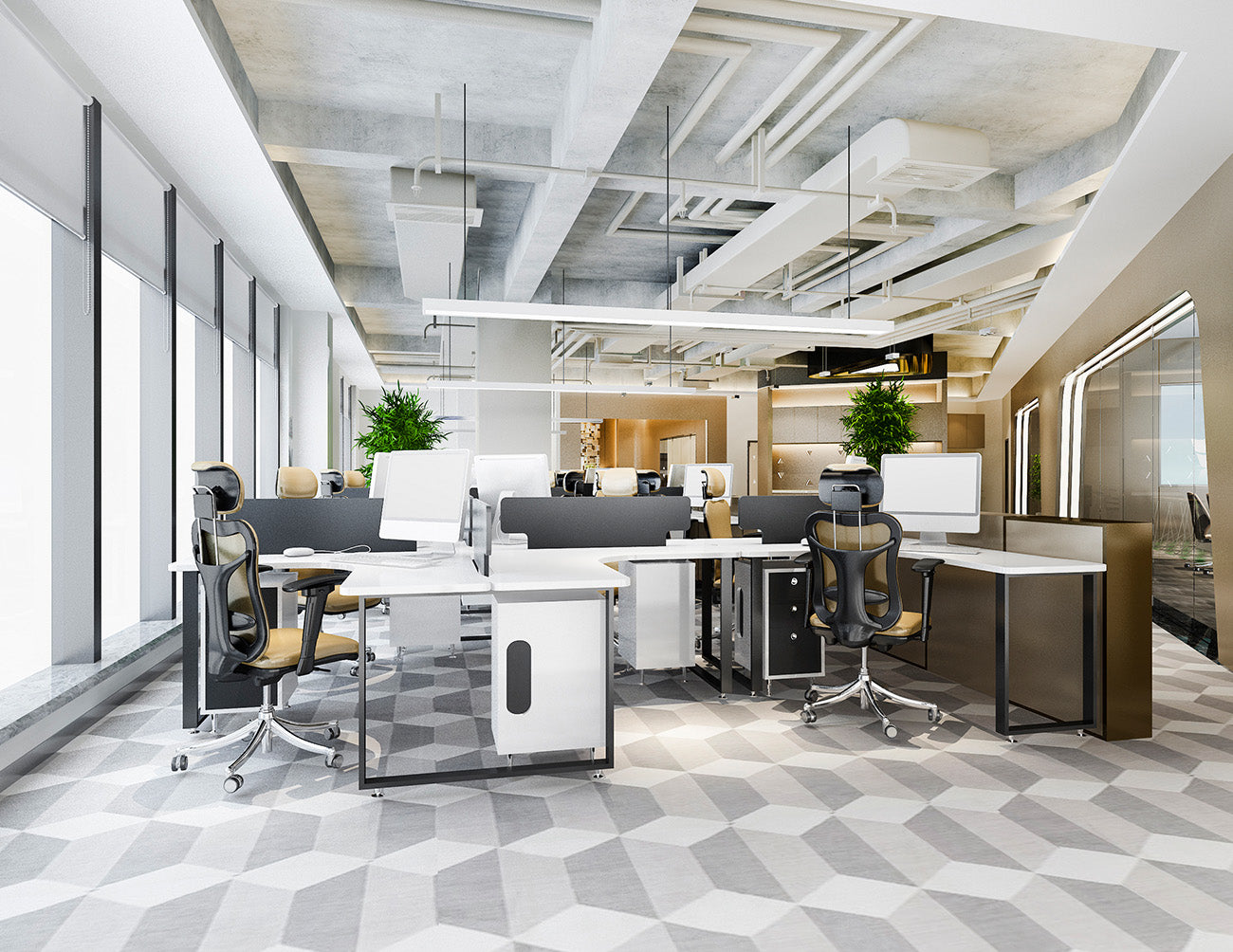

The ES-5035 extrusion is ideal for linear strip lights that are either suspended or surface-mounted to present a stylish lighting appearance.
Want to try our product sample >>Click here!
Note: LED strip light is NOT included
Frequently bought together:
- Model No: ES-5035-AL-8-M
- Dimension: L 94", W 1 31/32", H 1 3/8"
- Internal width: 1 9/32"
- Work Environment / IP Rating: IP20
- Finish: Silver, Anodized extruded aluminum, Frosted plastic Cover
- Installation options: Suspended Mounted, Surface Mounted
- Special features: Corner Turns available
Aluminum Channel Specification - 5035 LINEAR ES 5035
