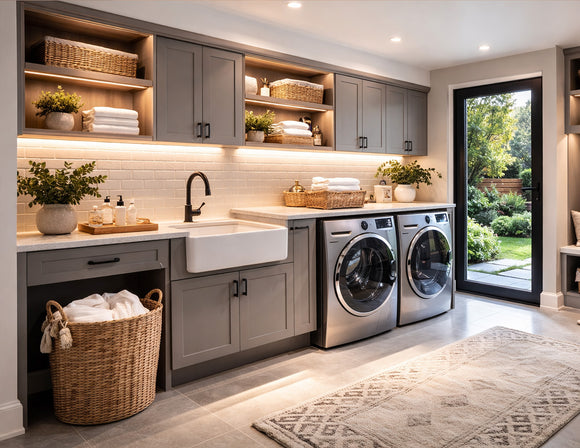

The PRO Series LED strip is the ideal choice for high-brightness and high-density LED needs, commonly used in cabinet lighting and office environments. With 240 LEDs per meter, the high density effectively reduces dark spots. If you're looking for a dotless LED tape light effect, this is the best option. Featuring an IP65 rating, it is suitable for wet locations. The durable 3M adhesive backing ensures quick and easy installation, making it perfect for both residential and commercial applications. How to apply 3M double-sided tape properly).
|
Features:
|
Applications:
|
Specifications:
|
Input Voltage |
24VDC |
LED Quantity |
73LEDs/ft |
|
Power Consumption |
4.4W/ft |
IP Rating |
IP65 (Wet location) |
|
Color Temperature |
2700K, 3000K, 4000K |
Operating Temperature |
-13°F~104°F |
|
Brightness |
Up to 530 lm/ft |
Efficacy |
120 lm/W |
|
Dimmable |
PWM, Forward phase, Triac, 0-10V, MLV, ELV |
Lumen Maintenance |
50,000 hrs |
|
No Voltage Drop |
16.4 ft Max |
Color Rendering Index (CRI) |
>90 |
|
Lead Wire |
20 AWG, 2ft (2 Wires) |
LED Chip |
3528 |
LED Strip Light Specification - PRO IP65
3528-240-2700K-24V-IP65 IES File
3528-240-3000K-24V-IP65 IES File
3528-240-4000K-24V-IP65 IES File
Low Voltage LED Strip Light Installation Manual
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally:
Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
What components do I need?
The essential component needed to power a strip light is a power supply. In addition to this, we offer a variety of installation accessories, including connectors, aluminum mounting channels and controllers. All Products >>
 |
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
LED Low Voltage Light System Configuration
