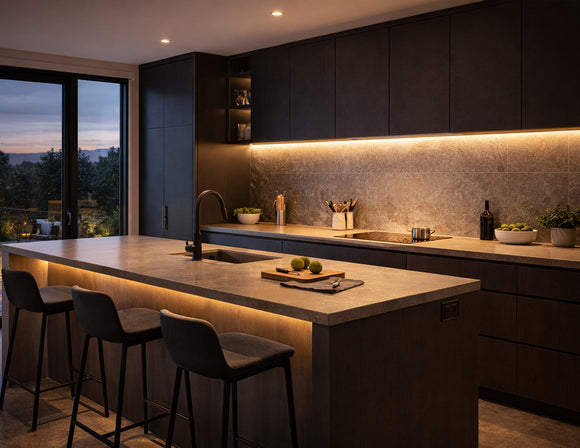

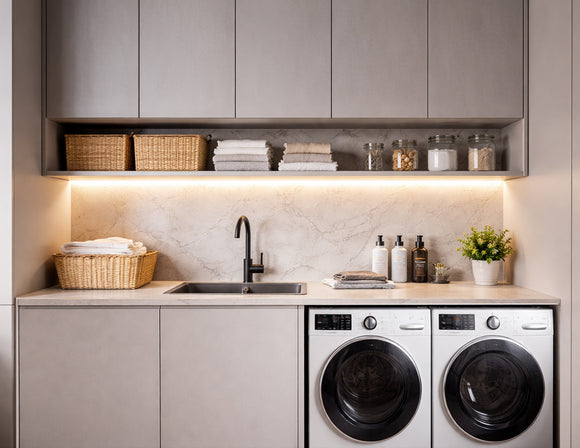

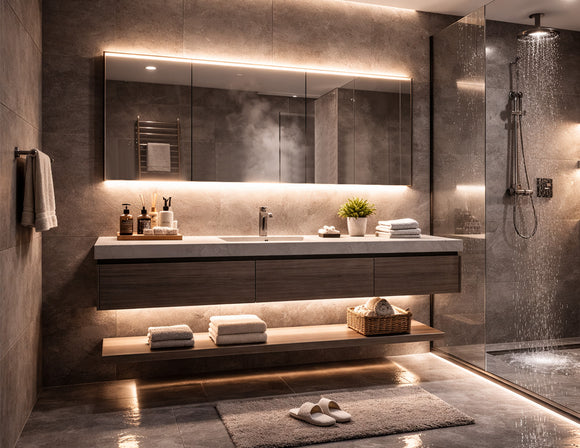

The ECO Series LED strip is a cost-effective and efficient lighting solution, ideal for ambient, under-cabinet, and accent lighting. It offers color temperatures of 2700K, 3000K, and 4000K to meet various needs. Compatible with 12V power and fully dimmable, it features an IP65 rating for wet locations. The peel-and-stick 3M™ adhesive backing ensures easy installation. (Click to see How to apply 3M double-sided tape properly).It’s one of our bestsellers and a customer favorite.
|
Features:
|
Applications:
|
Specifications:
|
Input Voltage |
12VDC |
LED Quantity |
34LEDs/ft |
|
Power Consumption |
3W/ft |
No Voltage Drop |
16.4 ft Max |
|
Color Temperature |
3200K |
Operating Temperature |
-13°F~104°F |
|
Brightness |
226 lm/ft |
Efficacy |
75 lm/W |
|
Dimmable |
PWM, Forward phase, Triac, 0-10V, MLV, ELV |
Lumen Maintenance |
50,000 hrs |
|
IP Rating |
IP65 (Wet location) |
Color Rendering Index (CRI) |
>90 |
|
Lead Wire |
20 AWG, 2ft (2 Wires) |
LED Chip |
3528 |
LED Strip Light Specification - ECO 12V IP65
Low Voltage LED Strip Light Installation Manual
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally:
Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
What components do I need?
The essential component needed to power a strip light is a power supply. In addition to this, we offer a variety of installation accessories, including connectors, aluminum mounting channels and controllers. All Products >>
 |
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
LED Low Voltage Light System Configuration
