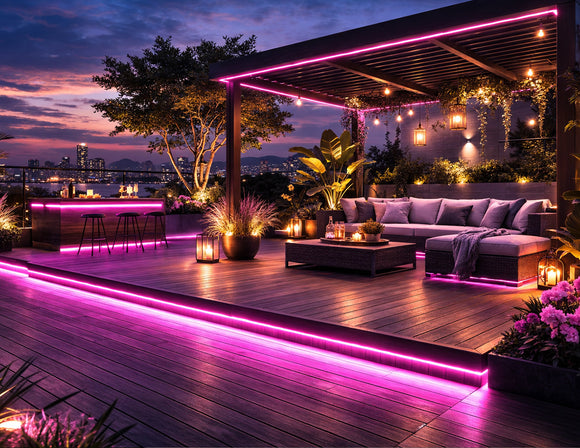

The RGB SPI LED strip features advanced RGBIC technology with Color Chasing effects, delivering smooth, dynamic lighting for parties, stages, commercial spaces, and home décor. Its IP65 design ensures durability in both dry and wet settings. Paired with a digital controller, users can easily customize color, brightness, and speed, creating personalized lighting effects that enhance any environment and meet diverse illumination needs.(Click to see How to apply 3M double-sided tape properly).
|
Features: |
Applications: |
Specifications:
|
Input Voltage |
12VDC |
LED Quantity |
18LEDs/ft |
|
Dimmable |
RGB SPI Controller |
IP Rating |
IP65 (Wet location) |
|
Color |
RGB |
Operating Temperature |
-13°F~104°F |
|
Brightness |
Up to 144 lm/ft |
Efficacy |
33 lm/W |
|
Power Consumption |
4.4W/ft |
Lumen Maintenance |
50,000 hrs |
|
No Voltage Drop |
16.4 ft Max |
Wavelength |
Red: 620-625nm Green: 520-525nm Blue: 465-470nm |
|
Lead Wire |
20 AWG, 2ft (4 Wires) |
LED Chip |
5050 |
LED Strip Light Specification - RGB SPI IP65
LED Strip Lights FAQs
How to chose bar lighting?
In today's dynamic bar and club industry, the strategic use of LED lighting stands as a cornerstone for attracting customers. This guide explores how to chose effective LED lighting in the bar. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
What components do I need?
The essential component needed to power a strip light is a power supply. In addition to this, we offer a variety of installation accessories, including connectors, aluminum mounting channels and controllers. All Products >>
 |
 |
 |
