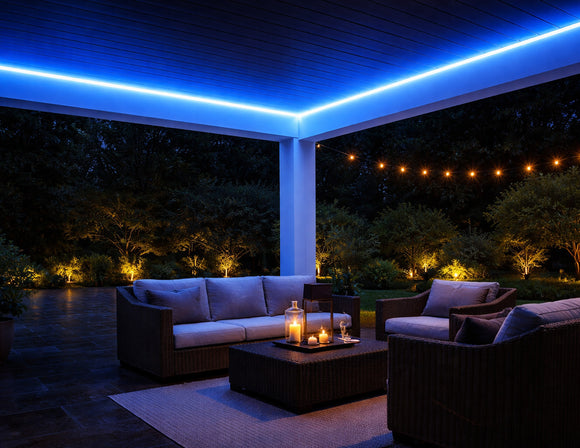

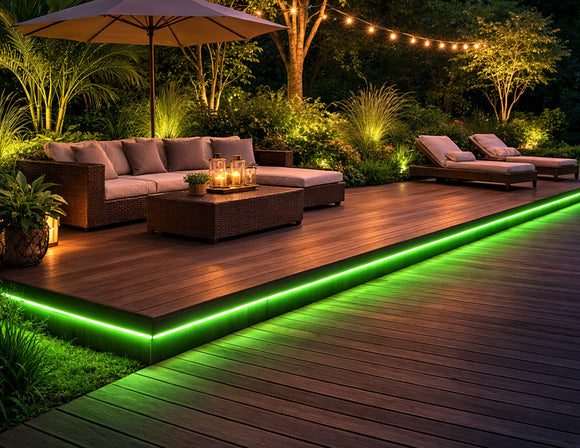

The Super Bright LED Strip offers exceptional brightness and high density, providing stronger illumination and more even light distribution. It is perfect for stage lighting, light shows, bars, clubs, and other venues, enhancing the entertainment experience. Additionally, it is ideal for holiday decorations and event lighting, creating a festive atmosphere. With UL certification, this LED strip ensures safety and durability. Its IP65 rating makes it suitable for use in wet location.(Click to see How to apply 3M double-sided tape properly).
|
Features:
|
Applications:
|
Specifications:
|
Input Voltage |
24VDC |
LED Quantity |
34LEDs/ft |
|
Dimmable |
RGB color changing controller |
IP Rating |
IP65 (Wet location) |
|
Color |
RGB |
Operating Temperature |
-13°F~104°F |
|
Brightness |
Up to 221 lm/ft |
Efficacy |
32 lm/W |
|
Power Consumption |
7W/ft |
Lumen Maintenance |
50,000 hrs |
|
No Voltage Drop |
16.4 ft Max |
Wavelength |
Red: 620-625nm Green: 520-525nm Blue: 465-470nm |
|
Lead Wire |
20 AWG, 2ft(4 wires) |
LED Chip |
3535 |
LED Strip Light Specification - RGB SUPER BRIGHT IP65
3535-120-RGB-24V-IP65 IES File
LED Strip Lights FAQs
How to chose bar lighting?
In today's dynamic bar and club industry, the strategic use of LED lighting stands as a cornerstone for attracting customers. This guide explores how to chose effective LED lighting in the bar. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
What components do I need?
The essential component needed to power a strip light is a power supply. In addition to this, we offer a variety of installation accessories, including connectors, aluminum mounting channels and controllers. All Products >>
 |
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
LED Low Voltage Light System Configuration
|
Instruction Video: Make RGBW light effects using RGB light Instruction Video: How to Prevent Voltage Drop Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light |
