Product Details

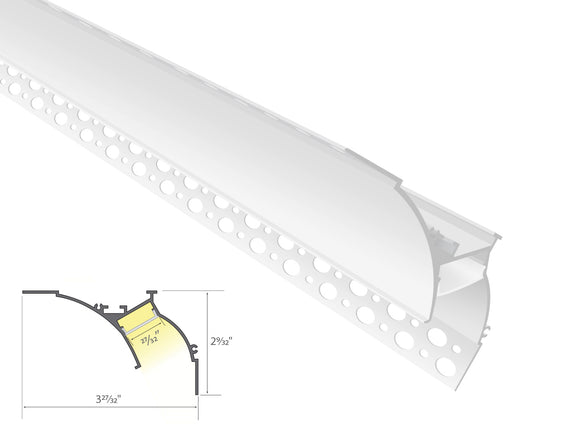

GLQ-9758 is a wash recessed angle extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 3.84” in width and 2.29” in height. Internal width of the aluminum channel is 0.85". Each piece is 94” long and has options of a sleek silver color finish and a stylish black color finish.

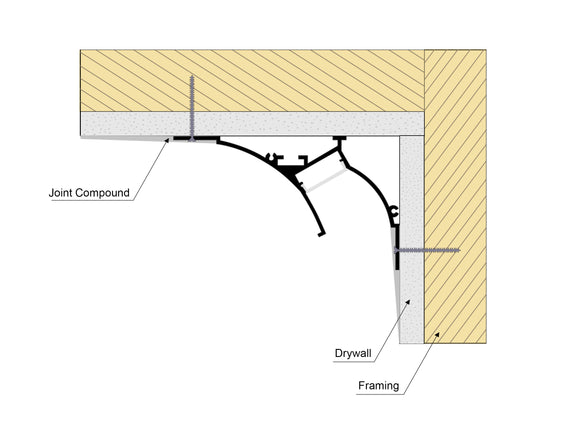

The recessed design allows for a sleek and seamless integration of LED strip lights into surfaces, providing a clean and polished appearance. The channels hide the light source and wiring, resulting in a neater and more professional-looking installation.

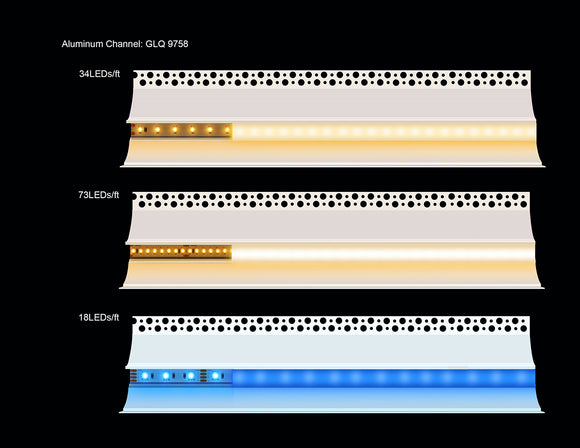

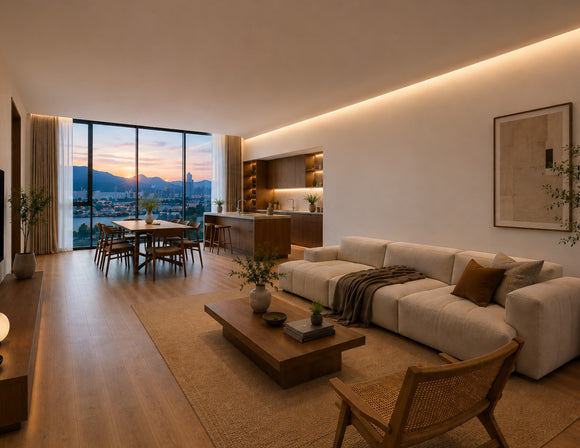

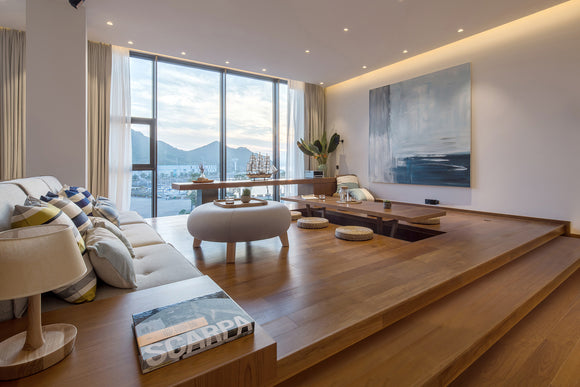

The GLQ-9758 aluminum extrusion is ideal for recessed shelf lighting with a 45 degree light distribution. The lights are reflected out through a curved surface to produce a softer and indirect illumination, perfect for ambient lighting applications.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications
Dimension |
L 94", W 3 27/32", H 2 9/32" |
Internal width |
27/32" |
Material |
Anodized Aluminum |
Finish |
White aluminum and milky diffuser |
Diffuser |
Milky |
Installation |
Recessed Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - WASH RECESS GLQ 9758
View AccessoriesBenefits of Aluminum LED Channels
Aluminum LED channels provide the ruggedness and efficiency needed for reliable performance. Here’s why they’re a smart addition to lighting systems:
·Aesthetic Appeal
Sleek finishes and uniform light diffusion elevate aesthetics—from patios to walkways and signage.
·Controlled Light Output
Opal or milky diffusers reduce glare and boost visibility while softening intense LED output.
·Effective Heat Management
Aluminum profiles dissipate heat effectively, protecting your LEDs from overheating even in warmer climates.
·Weather Resistance
Designed to resist moisture, debris, and impact, these channels safeguard LED strips in demanding conditions.
·Flexible Mounting Options
Suitable for surface mounting or embedding in furniture, handrails, or pathways, these channels support a wide range of applications.
·Maintenance Reduction
Fewer failures and longer LED life reduce service interruptions and costs.
·Hidden Lighting with Mud-In Channels
Recessed channels designed for mud-in installs offer a completely integrated look, perfect for modern interiors where clean lines matter.
