Product Details
0.1-100% full range dimming via touchpad wall control allows full control over your single color LED lighting system without any flickering. Simply mount to the wall and wire to your LED strip light.
 |
 |
Specifications
| Operation Voltage |
12V or 24V |
Maximum load/Amp |
Max 8A, 12V: <96W, 24V: <192W |
| Static power consumption |
<1W |
Operating Ambient Temperature |
-20°C - 60°C |
| Rated Wattage |
600W |
Dimming Method |
Triac (Phase-cut) |
| Current |
5A |
Control Method |
Hard wire |
|
Work Environment/IP Rating |
Dry location, IP20 |
Certification |
CE |

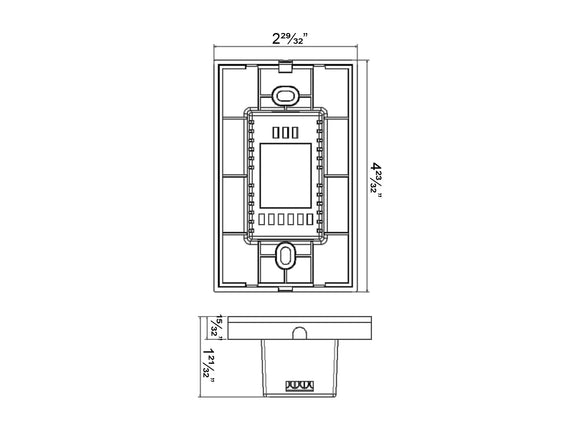

| Dimension |
L 4.7", W 2.9", D 1.6" |
Documents
SIM Wall Mount Dimmer 1 Zone Manual
