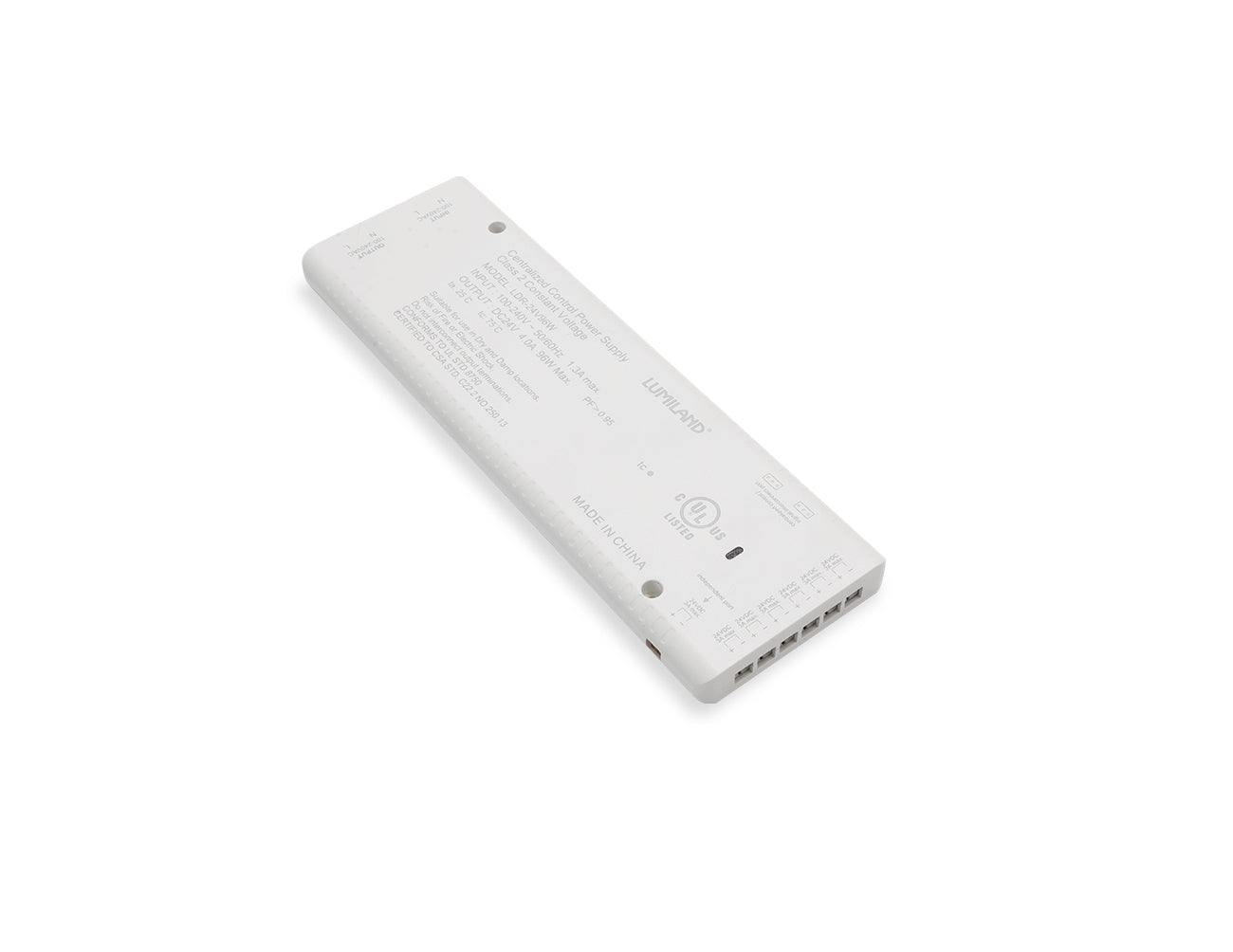

Product Details

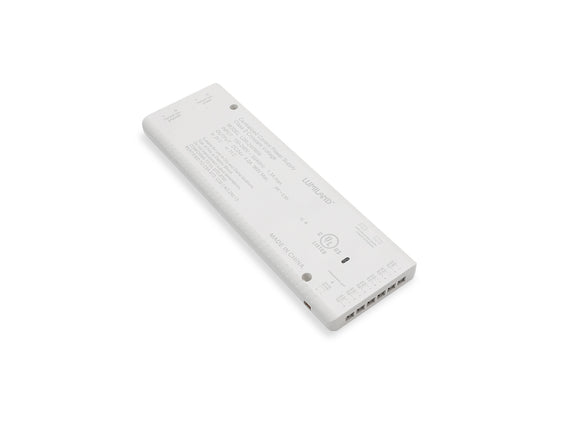

LDR Series power supply is specially designed for Undercabinet Light lighting system. Operating in constant power mode, max. output current for single port is 3A. With a wide AC input range of 100–240VAC. It features advanced surge protection and built-in safety functions for secure operation.
Key Features
- Universal AC Input (100–240 VAC) – Supports a wide range of input voltages for global use.
- Constant Voltage Output – Ensures stable 24 V DC power delivery for LED lighting.
- Built-In Protection – Safeguards against short circuit, overload, and overheating.
- Certified & Reliable – UL Listed, Class 2 rated for safety and compliance.
Recommended Applications

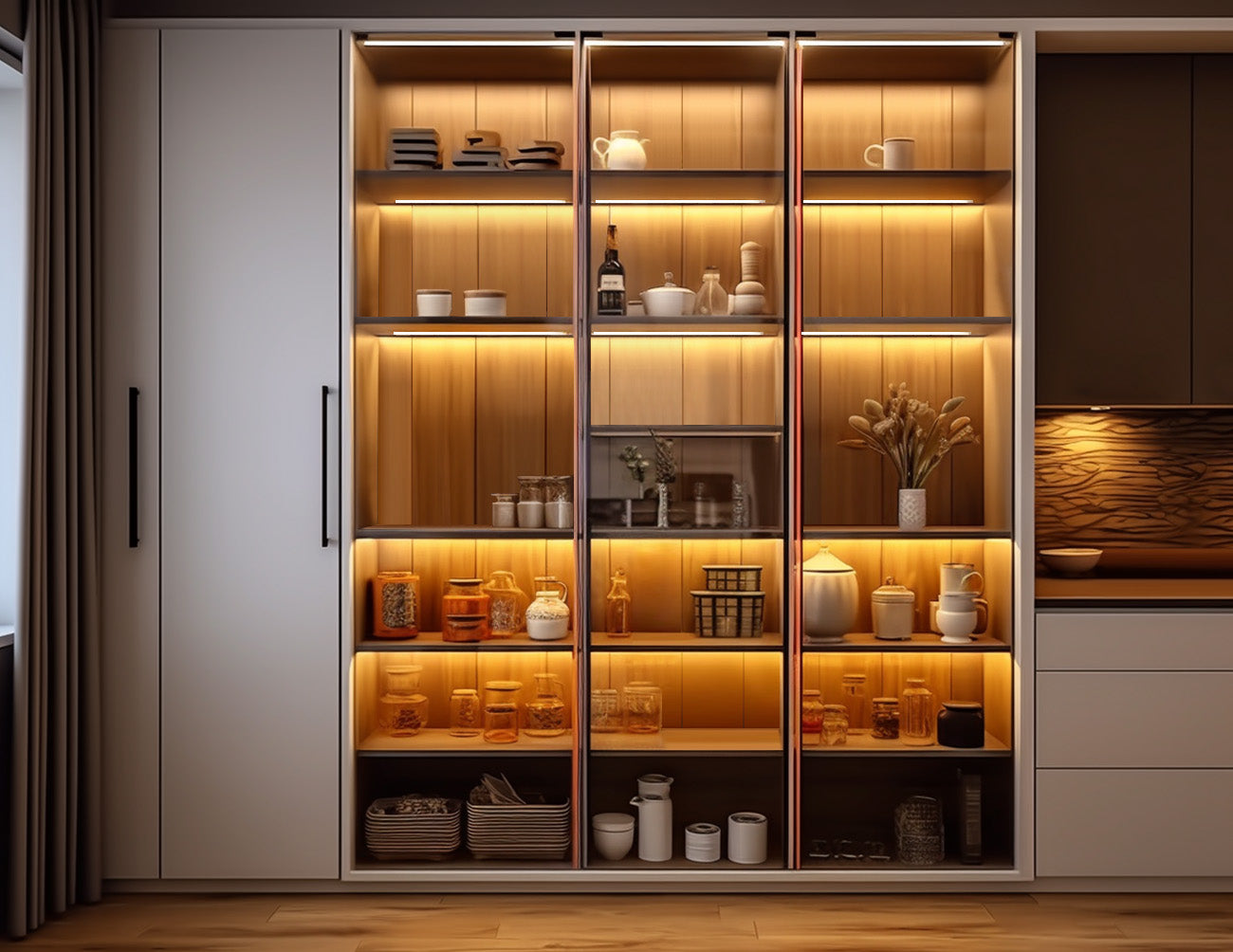

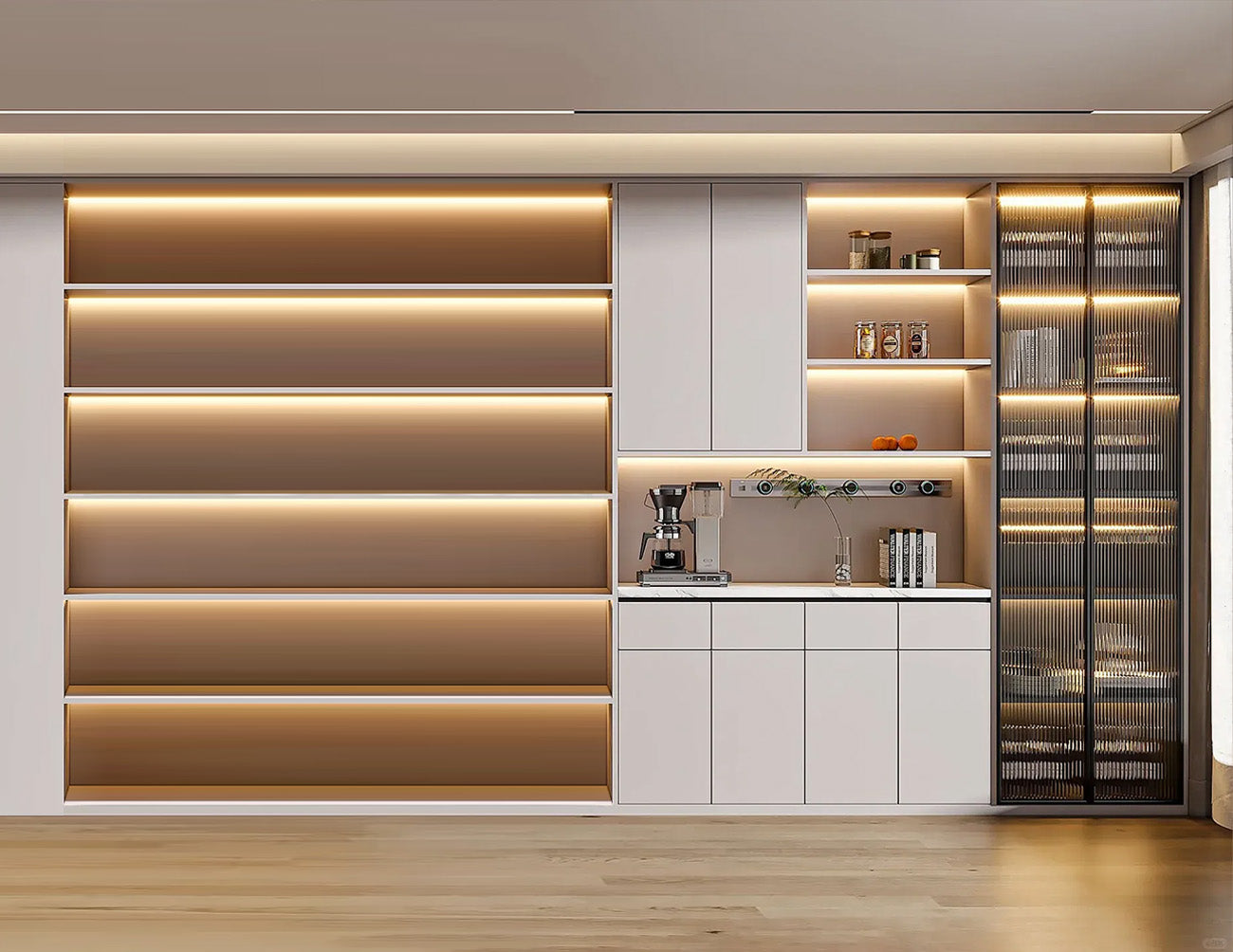

- Cabinet, closet, task, lighting
 |
 |
Specifications
| Type | LDR-24V60W |
| Input Voltage | 100-240VAC |
| Input AC Current (Max.) | 0.9A |
| Output Voltage | 24VDC |
| Output Power | 60W |
| Output Current | 2.5A |
| Certificate | UL listed |
| Safety Standards | UL8750, Class 2 unit. |
| Warranty | 3 years |
| Protections | Short Circuit / Over Loading / Over Temperature |
| Work Environment | Dry Location |
Documents
LDR Series Centralized Control Power Supply_Specification
Technical Tips & Guidance
Step-by-Step: How to Choose the Right Power Supply for Your LED Setup
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
Why You Shouldn’t Use a Constant Voltage Power Supply at 100% Load?
