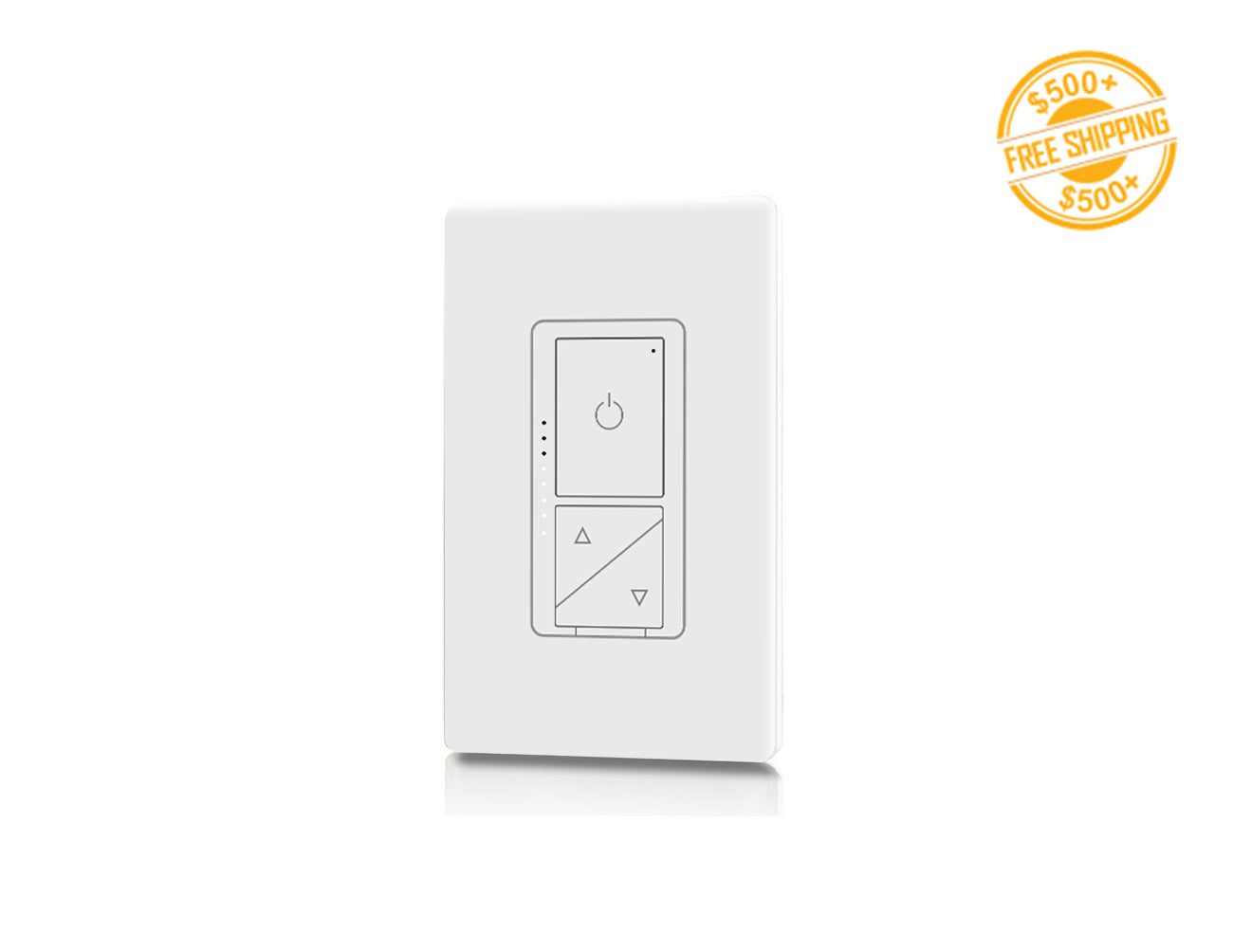

Triac Smart Dimmer Switch

SKU: DNA042CU2-W-600

$46.16

Description

Product Details

This UL-certified Triac Dimmer Switch with Wallplate offers smooth, flicker-free dimming for LED (3W–200W), CFL, and incandescent bulbs (15W–600W). Designed for 120V indoor use, it features phase-cut (Triac) technology, a compact profile, and hard-wire installation—ideal for reliable lighting control in homes and commercial settings.

Application

Designed for modern smart environments, the DNA042CU2-W-600 dimmer switch is perfect for homes, offices, hotels, and retail spaces seeking wireless lighting control. Through Wi-Fi or Bluetooth, users can manage lights via mobile apps, voice assistants, or preset automation—enhancing energy efficiency, comfort, and convenience. Whether adjusting ambience in a living room or automating lighting in a hotel suite, its app-compatible smart control system empowers flexible lighting scenarios across residential and commercial applications.

Specifications

Operation Voltage

120V

 Load Range

Incandescent: 15W-600W, LED/CFL: 3W-200W
Rated Frequency

60Hz

 Operating Ambient Temperature

0°C - 40°C
Rated Wattage

600W

 Dimming Method

Triac (Phase-cut)
Current

5A

 Control Method

Hard wire

Work Environment/IP Rating

Dry location, indoor

Certification

UL
Size (LxWxH)

4.13in×1.73in×1.22in



Documents

Triac Smart Dimmer Switch Specification
Triac Smart Dimmer Switch Installation Instruction

Please Note:

To ensure proper functionality, this dimmer switch must be used with a dimmable LED driver. It is not compatible with non-dimmable power supplies, which may cause unstable performance.

We recommend using our GLG 5-in-1 dimmable driver for reliable and smooth dimming.

Go To Dimmable Power Supply Page >>>

Q&A

Triac vs. 0-10V Dimmer Switch – Key Differences in LED Smart Lighting Control

When it comes to smart lighting control, Triac dimmer switches and 0-10V dimmer switches stand out as two of the most commonly used dimming technologies for LED systems. Triac dimmers operate on phase-cut AC dimming, typically at 120V, and are widely found in residential lighting applications. They are compatible with dimmable LED bulbs, halogen lamps, and incandescent lights, providing a budget-friendly and straightforward upgrade for home lighting systems.

In contrast, 0-10V dimmer switches function using a low-voltage analog signal (ranging from 0 to 10 volts) to regulate brightness through compatible LED drivers. These dimmers are best suited for commercial and industrial lighting installations, supporting input voltages from 120V to 277V. They allow longer wiring distances and offer smoother, more precise dimming control, making them a top choice for office buildings, schools, retail environments, and large-scale architectural lighting designs.

To summarize, Triac dimming is an excellent solution for standard residential applications, while 0-10V dimming offers enhanced flexibility and control—ideal for complex, large-scale smart lighting projects.
