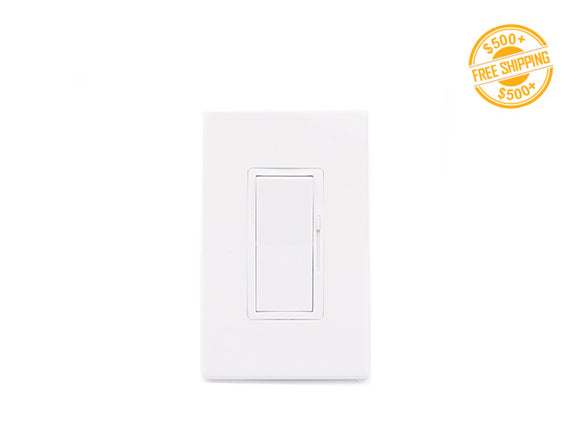

Triac Dimmer Switch with Wallplate, 120V 600W 60Hz, designed for smooth and reliable dimming control in residential and commercial lighting systems.

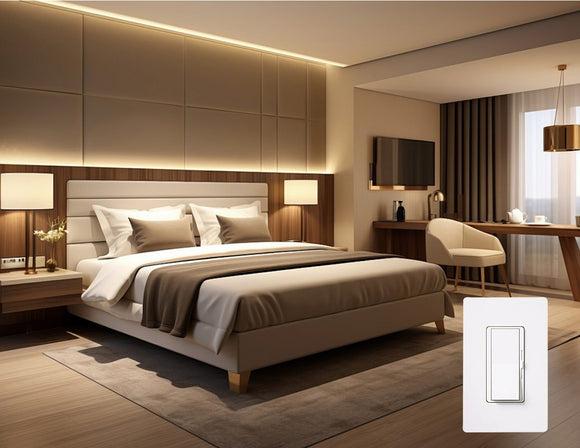

Triac Dimmer Switch with Wallplate, 120V 600W 60Hz, installed in the bedroom to control lighting levels for a cozy and adjustable ambiance.
Triac Dimmer Switch-3

Triac Dimmer Switch

SKU: DNA030FT1-600-P

$22.64

Description

Product Details

The Triac Dimmer Switch with Wallplate provides smooth and reliable brightness control for 120V dimmable LED, CFL, and incandescent lighting. Featuring a paddle on/off switch, slide dimming control, and adjustable minimum brightness, it is ideal for residential and commercial indoor lighting applications.

Application

1. Can directly replace the existing wall switches to turn on, off and dim the lamps or fixtures with Triac dimming drives. 2. Apply to living rooms, apartments, hotels, hospitals and other public places.

Operation Voltage

120V

 Load Range

Incandescent: 15W-600W, LED/CFL: 3W-200W
Rated Frequency

60Hz

 Operating Ambient Temperature

32°F~104°F
Rated Wattage

600W

 Dimming Method

Triac (Phase-cut)
Current

5A

 Control Method

Hard wire

Work Environment/IP Rating

Dry location, indoor

Certification

UL

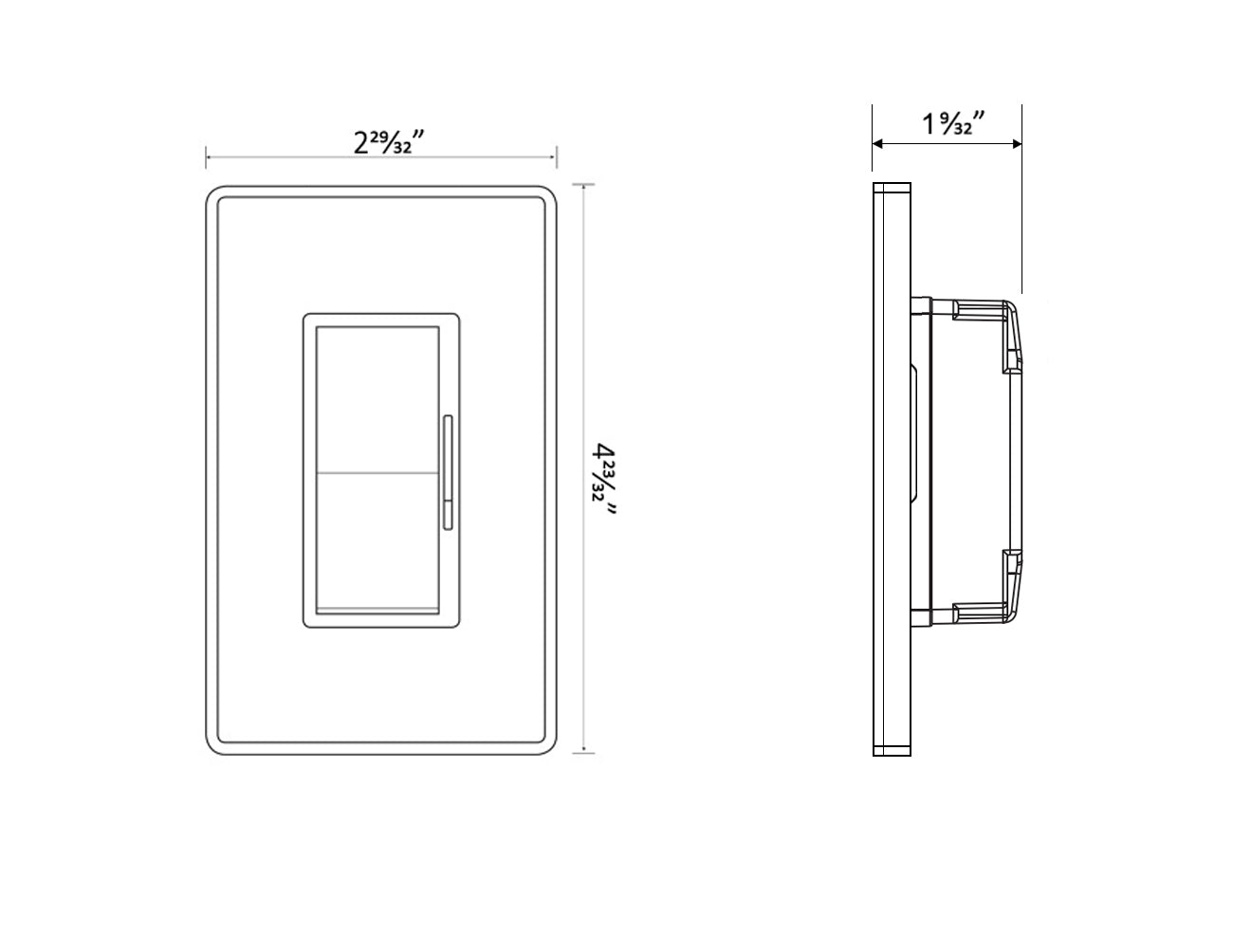

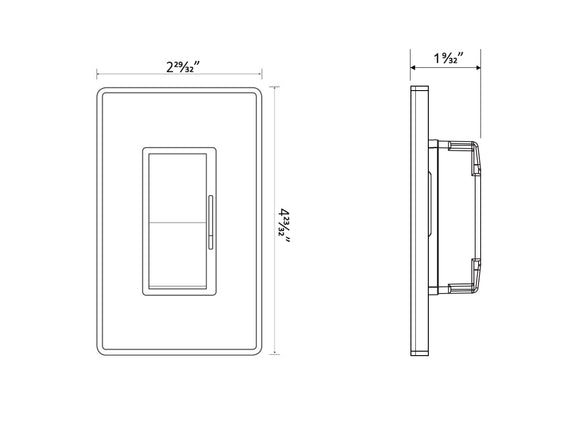

Size (LxWxH)

4 23/32"x2 29/32"x1 9/32"



Documents

Triac Dimmer Switch Instruction

Triac Dimmer Switch Installation

Compatibility Reminder:

This dimmer switch is designed to work exclusively with dimmable LED drivers or power supplies. Using it with non-dimmable components may result in flickering, buzzing, or failure to dim.

For best results, pair with our GLG 5-in-1 dimmable power supplies.

Go To Dimmable Power Supply Page >>>

Q&A

Triac vs. 0-10V Dimmer Switch – A Comparison of LED Smart Lighting Technologies

In the world of smart lighting control, Triac dimmer switches and 0-10V dimmer switches represent two widely used technologies for LED dimming. Triac dimming operates on phase-cut AC technology, typically at 120V, and is most commonly used in residential lighting systems. It works well with dimmable LED bulbs, incandescent lamps, and halogen lights, offering a cost-effective and easy-to-install solution for home upgrades.

On the other hand, 0-10V dimmer switches use a low-voltage analog signal (0 to 10 volts) to adjust the light output through compatible LED drivers. These dimmers are ideal for commercial and industrial lighting systems, supporting 120–277V input, long-distance wiring, and smoother dimming precision. They are widely adopted in offices, schools, retail stores, and architectural lighting projects requiring multi-zone or large-scale control.

In summary, Triac dimmers are ideal for basic home lighting control, while 0-10V dimmers offer greater scalability and precision, making them perfect for professional smart lighting environments.
