SQUARE DOME - YD 1604 Black Aluminum Channel + Milky Diffuser - 94"

SKU: YD-1604-AL-8-M-B

Login to view price

YD-1604 is an LED aluminum extrusion made of anodized extruded aluminum with a milky diffuser, and is designed to accommodate LED strip and tape lights to complete a stylish LED strip light fixture. Each piece is 94” long and has options of both a sleek silver finish and a stylish black color finish.

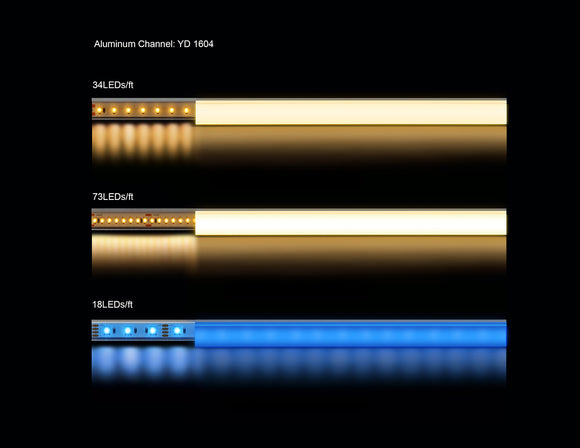

The YD-1604 features a unique diffuser design that sets it apart from other dome-type aluminum extrusions. With a larger surface area, this diffuser creates wider beam angles for the lights it accommodates. The milky diffuser helps to create an uniformly distributed light throughout the aluminum channel.

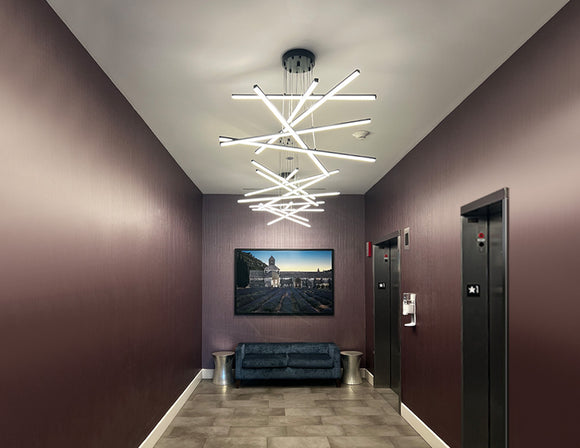

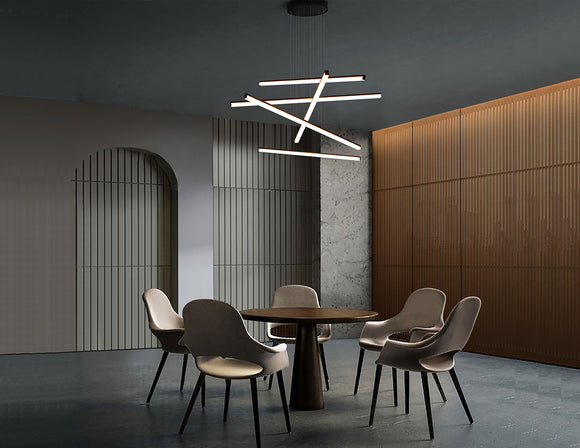

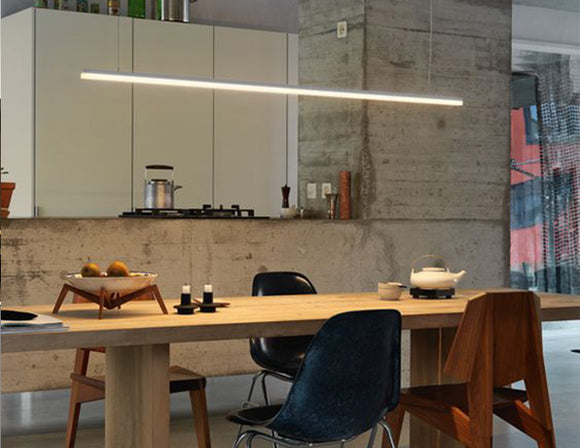

The aluminum extrusion protects LED strip lights from damages and dusts by providing a rigid and enclosed housing space. It also works as a heat sink to dissipate heat from LED lights. YD-1604 LED aluminum extrusion can be easily mounted to a ceiling, or suspended from a ceiling, making it ideal for LED linear strip lights, pendant lights, or chandelier lights.

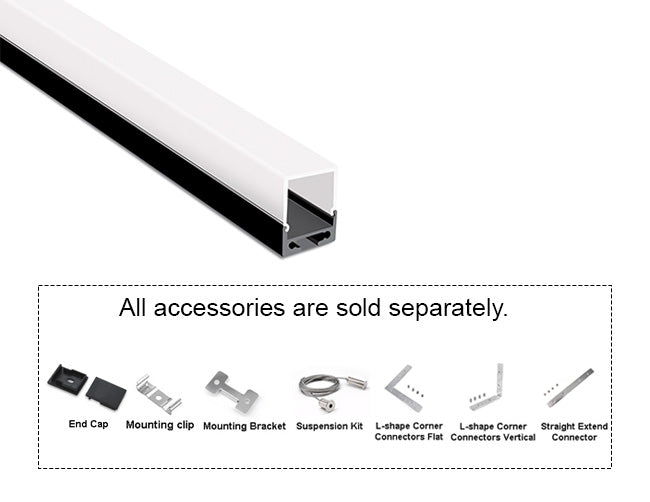

The YD-1604 aluminum extrusion can also be connected using compatible straight or L-shaped extensions to add different length options for LED light fixtures.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: YD-1604-AL-8-M-B

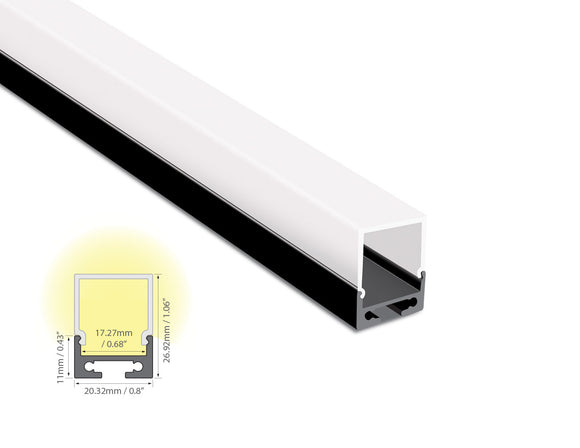

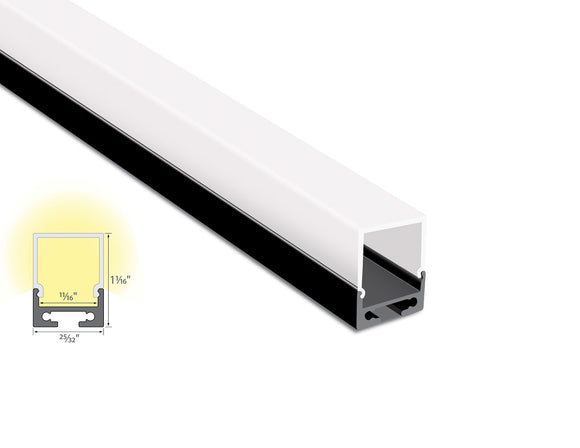

  • Dimension: L 94", W 25/32", H 1 1/16"
  • Internal width: 11/16"
  • Work Environment / IP Rating: IP20
  • Finish options: Black, Anodized extruded aluminum, Frosted plastic Cover
  • Installation options: Suspended Mounted, Surface Mounted
  • Special features: Square Dome, Corner Turns available

Aluminum Channel Specification - SQUARE DOME YD 1604
