Solder-free Connect Wire & End Cap Kit with PIR Sensor Switch for Under Cabinet Light 31138

Product Description

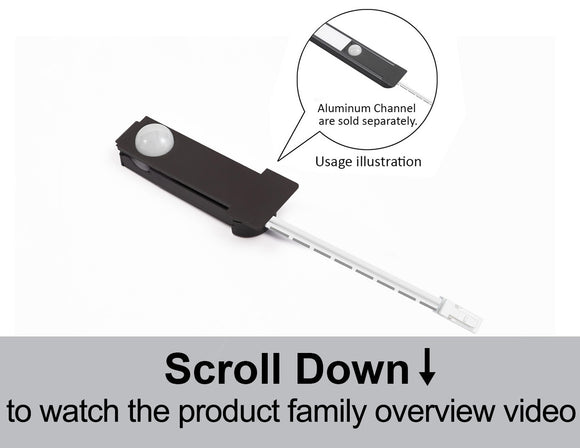

The Solder-Free Connect Wire & End Cap Kit with PIR Motion Sensor is designed for Under Cabinet Light 31138, combining power connection and automatic lighting control in one compact accessory. It plugs directly into the end of the 31138 light for a clean, solder-free connection.

The built-in PIR motion sensor detects movement within approximately 1–3 meters and automatically turns the cabinet light on. When no movement is detected, the light turns off after approximately 45 seconds. This integrated design helps simplify installation and is ideal for cabinets, closets, wardrobes, shelving, and other applications where automatic lighting control is needed.

Key Features

• Designed for Light 31138: Directly compatible with Under Cabinet Light 31138.
• Solder-Free Connection: Plugs into the end of the light without soldering.
• Integrated PIR Sensor: Combines the electrical connection and motion control in one compact component.
• 1–3 m Motion Detection: Automatically turns the light on when movement is detected within approximately 1–3 meters.
• 45-Second Auto-Off: Turns the light off approximately 45 seconds after no movement is detected.
• Clean Installation: Reduces separate wiring and external control components for cabinet lighting applications.

Product Specifications

Documents

Cabinet Lighting Control System Manual

How to Install the Solder-Free Connect Wire & End Cap Kit with PIR Motion Sensor

Step 1 - Disconnect the Power:
Turn off and disconnect the power supply before installation.

Step 2 - Choose the Installation End:
Select the end of the 31138 Under Cabinet Light where the PIR sensor controller will be installed.

Step 3 - Prepare the Installation Opening:
Cut the light-emitting surface/diffuser to match the controller length, leaving enough space for proper installation. Confirm the required cutout position and dimensions before cutting.

Step 4 - Check the Polarity:
Confirm the positive (+) and negative (–) polarity and align the connection correctly. Do not reverse the polarity.

Step 5 - Insert the Controller:
Insert the PIR sensor controller fully into the prepared end of the 31138 light and make sure it is securely seated.

Step 6 - Power On and Test:
Restore power and test the PIR sensor. The light should turn on when motion is detected and turn off approximately 45 seconds after no movement is detected.

FAQ

Is this PIR motion sensor connector compatible with other cabinet lights?
This kit is specifically designed for Under Cabinet Light 31138. Compatibility with other LED cabinet lights has not been confirmed, so it should not be assumed to work with other models.

Does the 31138 PIR motion sensor connector require soldering?
No. The connector uses a solder-free direct plug-in design and inserts into the end of Under Cabinet Light 31138. Correct positive and negative polarity must be confirmed before connection.

What is the detection range of the PIR motion sensor for Under Cabinet Light 31138?
The built-in PIR motion sensor detects human movement within approximately 1–3 meters. When movement is detected, the connected 31138 cabinet light turns on automatically. If no movement is detected, the light turns off after approximately 45 seconds.

Do I need to modify the 31138 light before installing the PIR sensor controller?
Yes. Before inserting the controller, the light surface/diffuser must be cut to accommodate the controller length. This provides enough space for the controller to fit correctly into the end of the 31138 light. Always confirm polarity before completing the connection.

Instruction Video

Explore More Modular Cabinet Lighting System Videos
