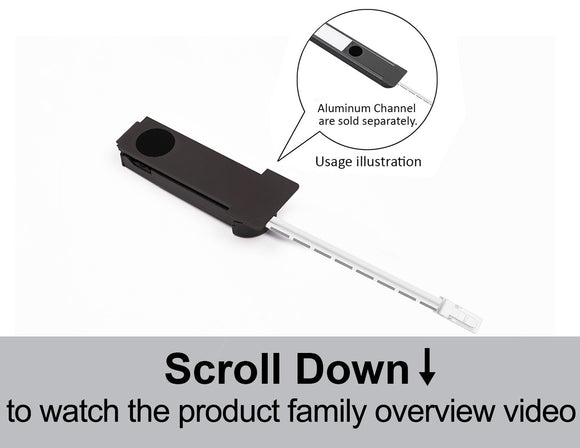

Solder-free Connect Wire & End Cap Kit with Hand Ware Sensor Dimmer for Under Cabinet Light 31138

Product Description

The Solder-Free Connect Wire & End Cap Kit with Hand Wave Sensor Dimmer is designed for 31138 Under Cabinet Light, combining power connection, end cap, and touch-free dimming control in one compact assembly. It plugs directly into the end of the 31138 for a clean, solder-free connection.

Wave your hand in front of the sensor to turn the light ON or OFF, or hold your hand in the sensing area to smoothly adjust the brightness. The integrated design reduces separate components and provides convenient hands-free control for cabinet, under-cabinet, shelf, and display lighting applications.

Key Features

• Integrated 3-in-1 Design: Combines the connect wire, end cap, and hand wave sensor dimmer.
• Touch-Free Control: Wave to turn the light ON/OFF and hold to adjust brightness.
• Solder-Free Connection: Plugs directly into the 31138 without soldering.
• Clean Installation: Integrated controller minimizes separate components around the fixture.
• Designed for 31138: Purpose-built for the 31138 Cabinet Light system.

Product Specifications

Documents

Cabinet Lighting Control System Manual

How to Install the Solder-Free Connect Wire & End Cap Kit with Hand Wave Sensor Dimmer

Step 1 - Disconnect the Power:
Turn off and disconnect the power supply before installation.

Step 2 - Prepare the Installation End:
Trim the light-emitting surface/diffuser at the installation end of the 31138 Cabinet Light to create the required space for the integrated sensor controller. Confirm the required cutout position and dimensions before cutting.

Step 3 - Check the Polarity:
Confirm the positive (+) and negative (–) polarity before making the connection. Do not reverse the polarity.

Step 4 - Insert the Controller:
Insert the integrated sensor controller directly into the prepared end of the 31138 Cabinet Light until it is fully seated and securely positioned.

Step 5 - Power On and Test:
Restore power and test the sensor controls. Wave your hand at a normal speed in front of the sensor to turn the light ON or OFF. Hold your hand within the sensing area to smoothly adjust the brightness, then move your hand away when the desired brightness level is reached.

FAQ

Is this hand wave sensor dimmer compatible with the 31138 Under Cabinet Light?
Yes. The 31138M-EC-TG is designed specifically for the 31138 Cabinet Light, providing a direct connection with integrated touch-free ON/OFF and dimming control.

How does the hand wave sensor dimmer control the cabinet light?
Wave your hand at a normal speed in front of the sensor to turn the light ON or OFF. Hold your hand in the sensing area to smoothly adjust the brightness.

Does this 31138 sensor dimmer require soldering?
No. It uses a solder-free direct plug-in connection and inserts into the prepared end of the 31138 Cabinet Light.

Is this a PIR motion sensor?
No. This is a hand wave sensor dimmer designed for intentional touch-free control. It does not automatically turn the light on when someone enters the area like a PIR motion sensor.

Do I need to modify the 31138 light before installing the sensor dimmer?
Yes. The light-emitting surface/diffuser at the installation end must be trimmed to provide enough space for the integrated controller. Check the positive and negative polarity before inserting the controller.

Where can this hand wave sensor dimmer be used?
When installed with the 31138 Cabinet Light, it is suitable for under-cabinet, cabinet, shelf, display, closet, and wardrobe lighting applications.
