Product Details

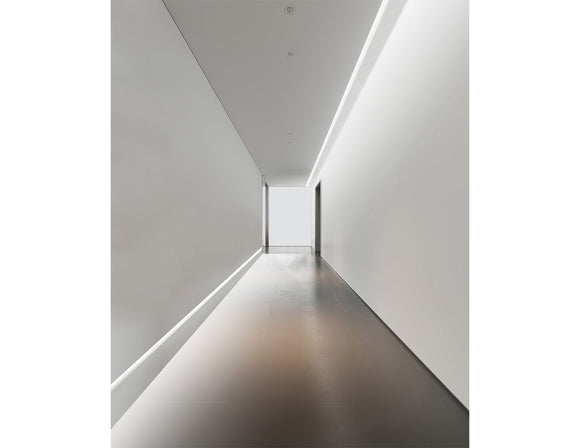

The BY 9819 channel is ideal for recessed mounting of LED strip lights to create uniformly distributed, glare-free light. It is versatile for different application locations, such as ceilings, wall bases, etc. Each piece is 94” long and has a silver color finish.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications

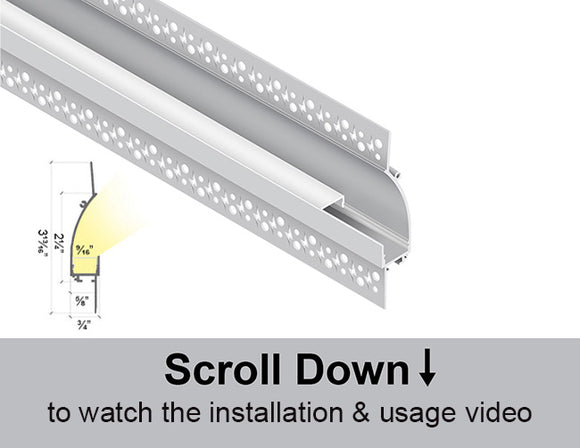

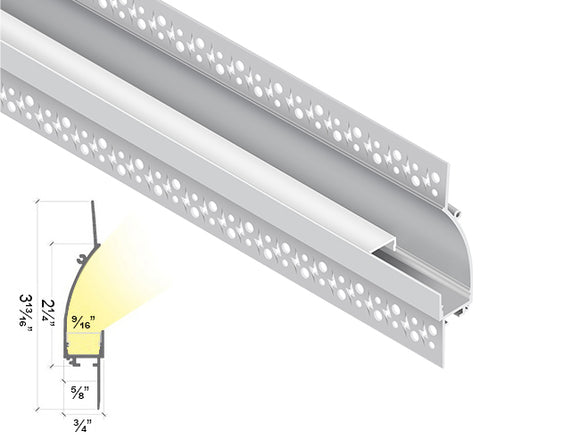

Dimension |
L 94", W 3/4", H 3 13/16" |
Internal width |
9/16" |
Material |
Anodized Aluminum |
Finish |
White aluminum and milky diffuser |
Diffuser |
Milky |
Installation |
Recessed Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - SKIRTING BY-9819
View AccessoriesKey Advantages of Using Aluminum LED Profiles
Whether you're upgrading home lighting or designing a commercial system, aluminum LED profiles are a smart choice. Here's how they can benefit your project:
·Aesthetics
Aluminum profiles offer a clean and modern look, concealing LED hardware and creating visually appealing lighting lines across any surface.

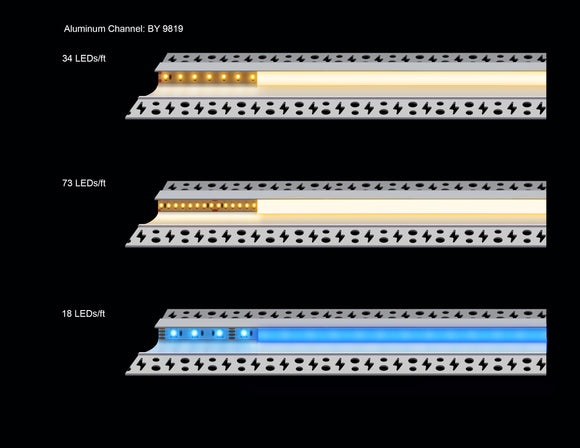

·Light Diffusion
Built-in diffusers soften LED brightness and create an even lighting effect, reducing visual fatigue and enhancing comfort.
·Thermal Management
The aluminum casing functions as a heat sink, maintaining ideal operating temperatures and helping prevent LED burnout.
·Long-Lasting Protection
These sturdy profiles protect lighting strips from accidental contact, debris, and moisture.
·Design Flexibility
Aluminum profiles can be recessed, surface-mounted, or angled, providing designers with freedom for creative installations.
·Maintenance Savings
Better protection and heat control reduce LED wear, which means fewer replacements and lower maintenance costs.

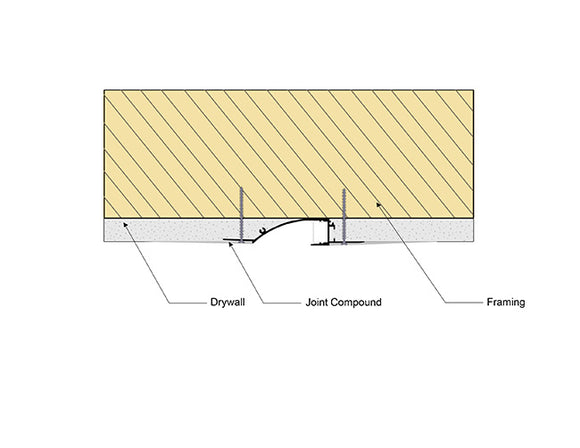

·Drywall Mud-In Ready
These recessed profiles are ideal for drywall mud-in setups, offering a concealed lighting solution that aligns perfectly with modern, flush interior finishes.
