Product Details
The YD 1418 Black Aluminum Channel + Black Diffuser LED Aluminum Extrusion, crafted from anodized extruded aluminum and featuring a milky diffuser, offers an elegant solution for LED strip and tape lighting systems. This high-quality extrusion is 94 inches in length with a silver finish that complements a variety of decoration styles.

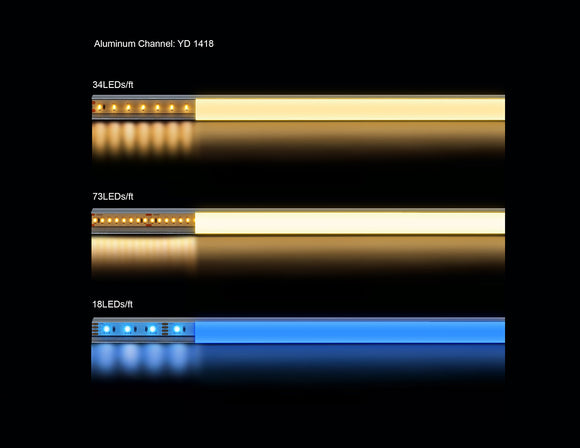

Offering an even distribution of light, the integrated milky diffuser of the YD-1418 LED Aluminum Extrusion brings out the best in your lighting fixtures, enhancing the overall aesthetic of any room.
This LED aluminum extrusion not only improves the visual appeal of your LED lights, but it also provides robust protection. By creating a sturdy, enclosed housing, it shields the LED strip lights from potential damage and dust. YD-1418 LED Aluminum Extrusion also acts as a heat sink, efficiently dissipating heat generated by the LED lights to extend their lifespan.

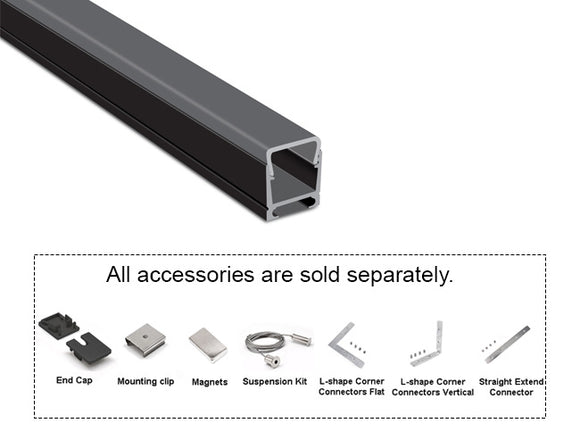

YD-1418 LED Aluminum Extrusion offers flexibility in configuration. It can be paired with compatible straight or L-shaped extensions to increase the length and adapt to different LED light fixture designs.

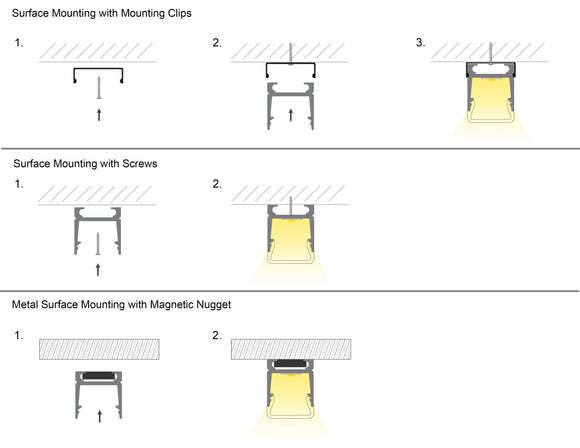

Ease of installation is another advantage of the YD-1418 LED Aluminum Extrusion. It can be securely mounted or suspended from the ceiling to suit a wide range of lighting setups.
The versatility of this aluminum extrusion makes it a perfect choice for various applications - from LED linear strip lights to pendant and chandelier lights. Enhance your lighting solutions today with the reliable and versatile YD-1418 LED Aluminum Extrusion.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications

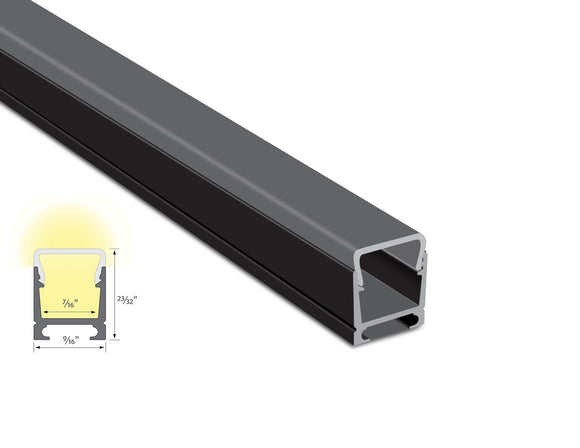

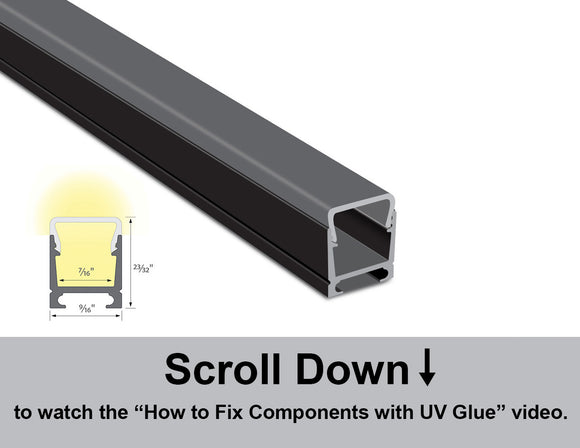

Dimension |
L 94", W 9/16", H 23/32" |
Internal width |
7/16" |
Material |
Anodized Aluminum |
Finish |
Black aluminum and black diffuser |
Diffuser |
Black |
Installation |
Surface Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - SKINNY DOME YD 1418
View AccessoriesThe Benefits of Using Aluminum LED Profiles
· Enhanced Décor Matching:
Finishes like satin or black anodized blend with furniture or architectural lines.
· Sturdy Housing:
Offers robust protection against physical and environmental stressors.
· Superior Heat Handling:
Promotes LED stability by dispersing generated heat effectively.
· Light Customization Made Easy:
Lenses let you adjust the diffusion and beam angle to your preference.
· Works Anywhere:
Adaptable to under-shelf, accent, pathway, and showcase lighting.
· Elevated Finish:
Gives your project a clean, polished appearance with lasting function.
